We have two federally approved GVM upgrade options available for Y62 owners. A 3999kg and 4499kg GVM upgrade. This means there is a GVM upgrade option available to suit family trips close to home, or full loaded around Australia trip towing a caravan.

Nissan Y62 Patrol GVM Upgrade Available at Payload Performance

Option #1: 3999kg GVM

Up to 499kg* GVM increase

  • GVM increased from 3500kg to 3999kg (499kg increase)
  • Front axle rating increased from 1650kg to 1700kg
  • Rear axle rating increased from 2030kg to 2450kg
  • Towing Capacity 3500kg
  • Upgraded DMW suspension and handling package
  • Front & rear wheel alignment
  • Pre & post registration options
  • Includes federal certification and engineering costs if performed pre-registration
  • Cat 6 Indicators
  • Heavy duty airbags
  • Up to 2" lift
Text A Professional

Option #2: 4499kg GVM

Up to 1219kg* GVM increase

  • GVM increased from 3500kg to 4499kg (1219kg increase)
  • Front axle rating increased from 1650kg to 1700kg
  • Rear axle rating increased from 2030kg to 2900kg
  • Towing Capacity 3500kg
  • Upgraded DMW suspension and handling package
  • Front & rear wheel alignment
  • Pre & post registration options
  • Includes federal certification and engineering costs if performed pre-registration
  • Cat 6 Indicators
  • Airbag Man Airbags
  • Up to 2" lift
  • Chassis Bracing kit (for conversions)
  • Upgraded Lower Rear Control Arms
  • Wheels and tyres upgraded with higher load ratings
Text A Professional

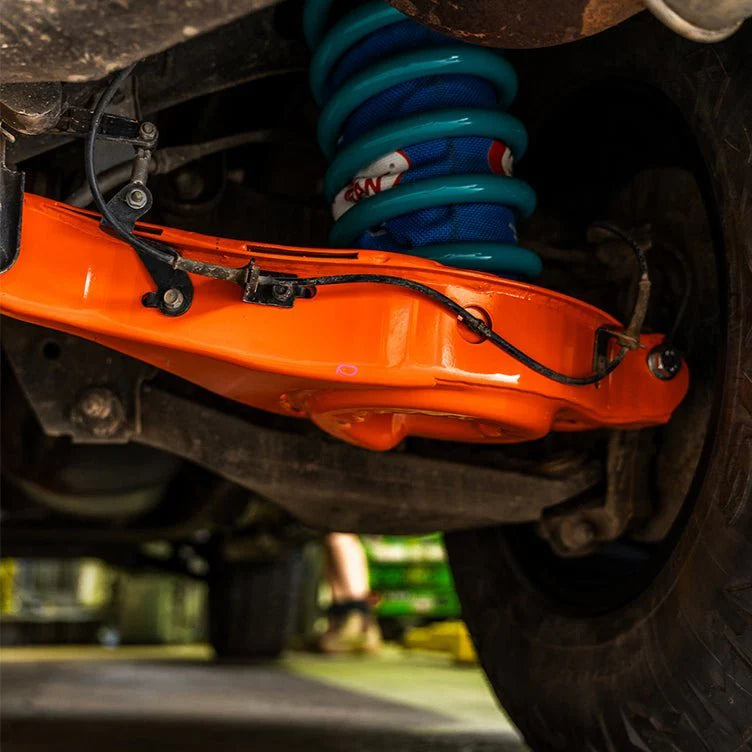

Upgraded Lower Rear Control Arms

We've developed a set of upgraded lower rear control arms that is based on factory parameters but strengthened and FEA tested to 2900kg axle load for our monster 4499kg GVM upgrade. They are sandblasted, primed, and powder coated for a strong and durable finish in a recognizable DMW orange. The DMW Y62 lower control arm upgrade is a must for Y62 owners looking to stay out on the tracks longer or just looking at a larger GVM upgrade. Reuben has personally punished and tested them himself. Certified to withstand your vehicle's loaded weight and numerous "Reuben Revs".

Get In Touch

Finite Element Analysis (FEA) & Brake Testing

To have federal approvals as a second stage manufacturer, we complete exhaustive FEA testing and analysis plus brake testing to ensure your vehicle is safe at the increased GVM.

Finite Element Analysis (FEA), is a computer simulation technique that analyses our GVM upgrade products in great detail to carry out a stress, vibration or heat transfer analysis and many other physical analyses. The FEA combined with brake testing ensures your family are safe and your vehicle is insured once a GVM upgrade has been added to your vehicle.

*Actual GVM increase & availability subject to specific model variants

Get In Touch

Frequently Asked Questions

Carry more - Safely & Legally

The allowable payload on most modern 4WDs seems great on paper, but gets quickly used up when accessories, gear and passengers get loaded in. Remaining under the vehicles Gross Vehicle Mass (GVM) can seem almost impossible.

DMW is a recognised Second Stage Manufacturer (SSM) which allows us to develop and federally certify components to increase your vehicle's GVM.

This allows DMW or their authorised dealers to fit GVM kits for a variety of vehicles both Pre and Post Registration.

Maximise your allowable payload without risking your roadworthiness.

Each complete GVM kit has been extensively tested to ensure ADR compliance is maintained.

Safety and performance by design

Federal approval for GVM upgrades requires rigorous testing to ensure that the vehicle performs as well or better than when it left the original manufacturer. You can be sure that your DMW GVM upgraded 4WD will stop and handle well, even with the increased load on board.

Depending on the vehicle, the following testing is required:

  • Finite Element Analysis (FEA) testing: A check of the maximum load carrying capacity of the vehicle's axles, chassis or other critical components.
  • Brake Testing: Laden and Unladen brake testing as well as testing under partial system failure to comply with ADR35/00
  • ESC Testing: If required, this test ensures that the ESC system's response is the same or better than the original vehicle.

The GVM of any vehicle is the weight in kilograms that the manufacturer has specified as being the maximum that the vehicle can weigh when fully laden. DMW GVM upgrades allow a vehicle to be certified to carry a greater amount than the original manufacturer, without breaching applicable ADRs or laws. You can upgrade the GVM of a vehicle using either Federal approval or State based approval, depending on whether the vehicle has been registered or not.

  • If the vehicle has never been registered, Federal approval can be applied. The DMW GVM kit comes complete with an additional compliance plate which will be fixed to the vehicle.
  • If the vehicle is already registered, the data used in Federal compliance is used in conjunction with a vehicle inspection by an authorised State engineer to certify the vehicle.

The answer to this commonly asked question is no! This doesn’t matter if the GVM is done pre or post rego either, some installers will tell you otherwise but the fact is that GCM is a state based decision. Please see below exert from the Administrators circular 0-4-6 published 29/06/2018,

 “As there are no ADRs that require the GCM of a light vehicle (ie a vehicle less than 4.5 tonnes Gross Vehicle Mass) to be certified by testing or evidence provided by a manufacturer, the Department does not assess, endorse or approve any purported change to a light vehicle’s GCM specification by a SSM.

It is also important to note that the Department does not restrict or prohibit GCM upgrades, as they are an in service matter that is the responsibility of state and territory registration authorities.”

Is my GCM automatically increased when a GVM upgrade is fitted?

The answer to this commonly asked question is no! This doesn’t matter if the GVM is done pre or post rego either, some installers will tell you otherwise but the fact is that GCM is a state based decision. Please see below exert from the Administrators circular 0-4-6 published 29/06/2018,

“As there are no ADRs that require the GCM of a light vehicle (ie a vehicle less than 4.5 tonnes Gross Vehicle Mass) to be certified by testing or evidence provided by a manufacturer, the Department does not assess, endorse or approve any purported change to a light vehicle’s GCM specification by a SSM.

It is also important to note that the Department does not restrict or prohibit GCM upgrades, as they are an in service matter that is the responsibility of state and territory registration authorities.”

QUEENSLAND - GCM and other modifications

GVM Upgrades of IN SERVICE vehicles (currently registered vehicles) – APPROVED.

GVM Upgrades under SSM to vehicles PRIOR to initial registration – APPROVED.

GCM Upgrade to IN SERVICE vehicles (currently registered vehicles) – NOT APPROVED.

GCM Upgrade under SSM to vehicles PRIOR to initial registration – APPROVED.

WESTERN AUSTRALIA - GCM and other modifications

GVM Upgrades of IN-SERVICE vehicles (currently registered vehicles) – APPROVED.

GVM Upgrades under SSM of vehicles PRIOR to initial registration – APPROVED.

GCM Upgrade to IN SERVICE vehicles (currently registered vehicles) – NOT APPROVED

GCM Upgrade under SSM to vehicles PRIOR to initial registration.

**BTC, Braked Towing Capacity to IN SERVICE Vehicles – NOT APPROVED.

NSW, SOUTH AUSTRALIA, and VICTORIA - GCM and other modifications

GVM Upgrades of IN-SERVICE vehicles (currently registered vehicles) – APPROVED.

GVM Upgrades under SSM of vehicles PRIOR to initial registration – APPROVED.

GCM Upgrade to IN SERVICE vehicles (currently registered vehicles) – APPROVED.

GCM Upgrade under SSM to vehicles PRIOR to initial registration – APPROVED.

**BTC, Braked Towing Capacity to IN SERVICE Vehicles – APPROVED.

NOTE: It is up to the Compliance Signatory/Certifier as to whether they deem it satisfactory to apply a GVM and/or GCM increase to In-service vehicles. Please refer to your local certifier for further clarification.

ACT and NORTHERN TERRITORY - GCM and other modifications

GVM Upgrades of IN-SERVICE vehicles (currently registered vehicles) – APPROVED.

GVM Upgrades under SSM of vehicles PRIOR to initial registration – APPROVED.

GCM Upgrade to IN SERVICE vehicles (currently registered vehicles) – NOT APPROVED

GCM Upgrade under SSM to vehicles PRIOR to initial registration – APPROVED. STILL AN IN SERVICE DECISION SO NO GCM UPGRADE.

**BTC, Braked Towing Capacity to IN SERVICE Vehicles – NOT APPROVED.

TASMANIA - GCM and other modifications

GVM Upgrades of IN-SERVICE vehicles (currently registered vehicles) – APPROVED.

GVM Upgrades under SSM of vehicles PRIOR to initial registration – APPROVED.

GCM Upgrade to IN SERVICE vehicles (currently registered vehicles) – APPROVED

GCM Upgrade under SSM to vehicles PRIOR to initial registration – APPROVED.

**BTC, Braked Towing Capacity to IN SERVICE Vehicles – APPROVED

NOTE: It is up to the Compliance Signatory as to whether they deem it satisfactory to apply a GVM and/or GCM increase to In-service vehicles. Please refer to your local certifier for further clarification.

*A vehicle that is legally registered in one Australian state of Territory with a BTC, GVM or GCM upgrade, can legally travel in another state or Territory.

** Please note that as of the Administrator Circular released in June 2018 BTC upgrades are not permitted on light vehicles. Please see exert below.

“The towing capacity of a light vehicle expressed as Gross Combination Mass (GCM) rating or Rated Towing Capacity or Maximum Braked Towing Mass rating must not exceed the value set by the first stage manufacturer. Second stage manufacturers are not permitted to increase the towing capacity as part of an SSM IPA that results in GVM upgrade,” it stated in Section 10.6, of the 0-4-6 circular issued in June 2018
