BDS Suspension

BDS Suspension 4' Lift Kit for Ram 1500 DS

BDS1754FS

$6,250.00
$6,250.00
Tax included.

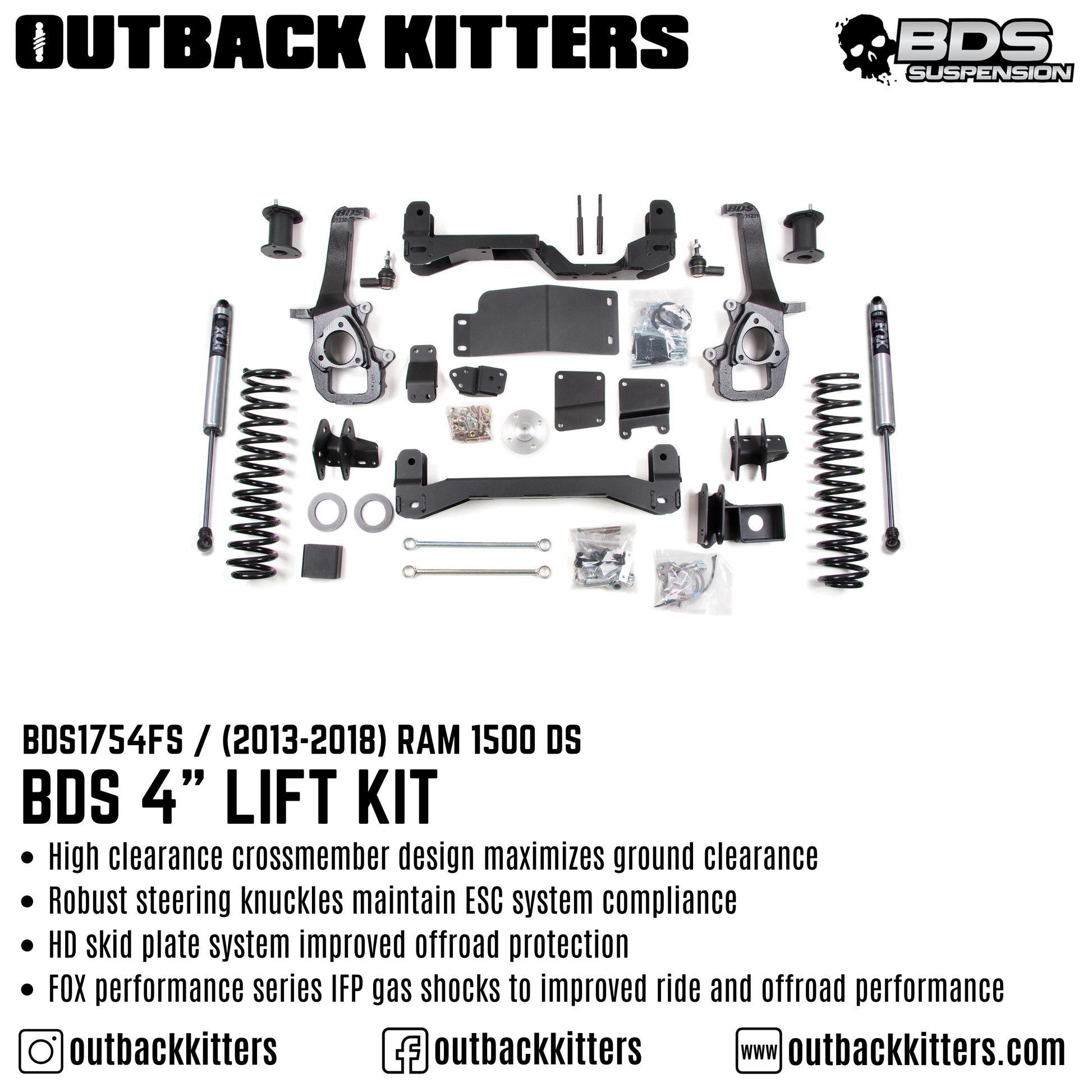

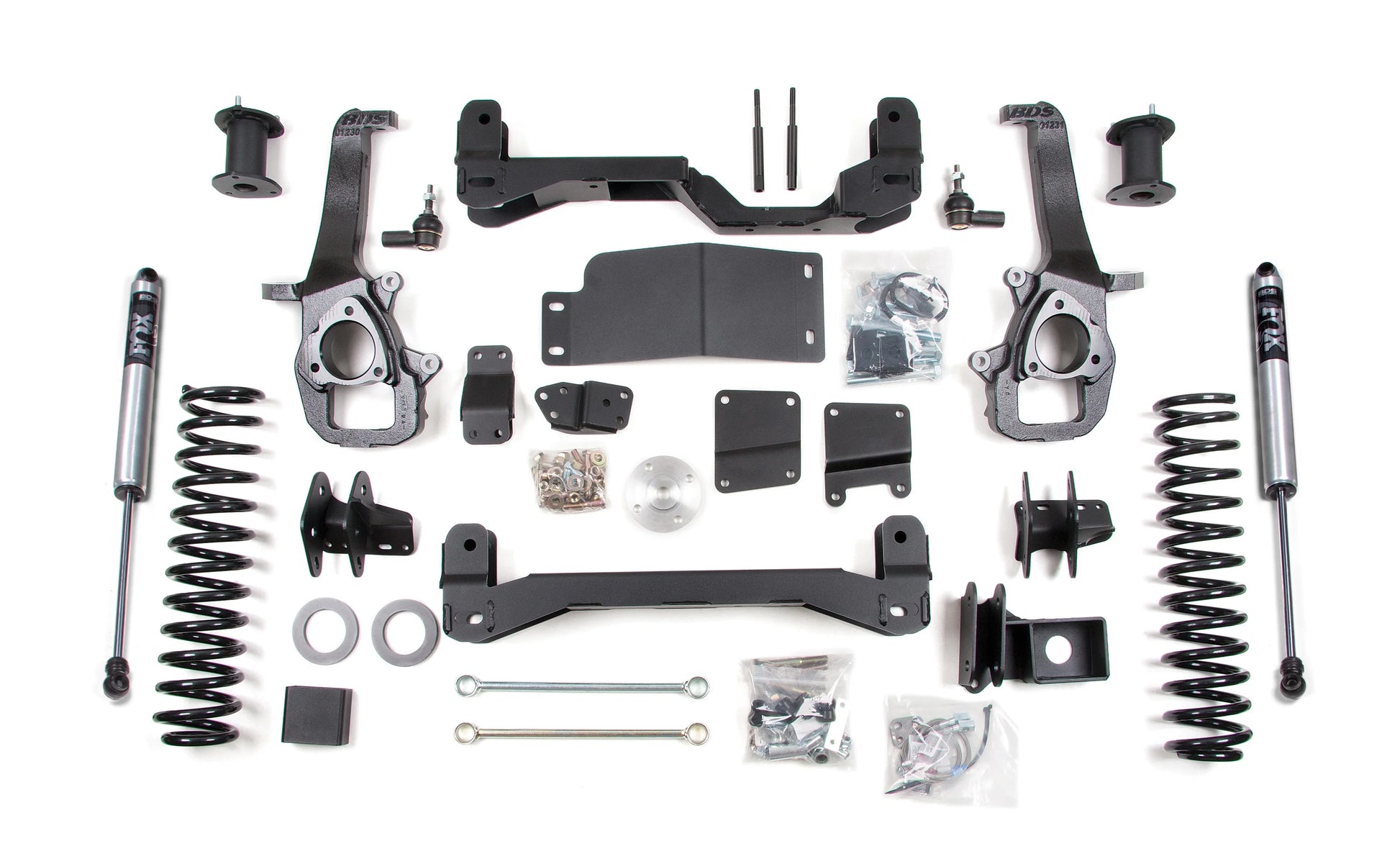

BDS steps up the performance and capability of the 2013-2018 RAM 1500 trucks with a 4-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35' tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear this kit utilizes a 2' coil spacer, rear upper control arm relocation brackets to correct pinion angle, track bar relocation bracket to correct axle positioning, bump stop extensions, and sway bar links. The rear of these kits are rounded out with the FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

COIL SPRINGS

  • Full replacement rear coil springs
  • Coils are progressive rate and provide a great ride loaded or not
  • Built to handle heavy loads without sagging
  • A polyester-based powder coat is applied to ensure flexibility and durability
  • Shot peened to increase tensile strength and maximum wheel travel without sacrificing spring life

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Vehicle Applications

RAM 1500 (09/2010 - 12/2018)

Make Model From To Body Series Engine Variant Drivetrain
RAM 1500 06/2010 12/2018 Ute DS EZH | 5.7L | Petrol EXPRESS Automatic 4WD
RAM 1500 06/2010 12/2018 Ute DS EZH | 5.7L | Petrol LARAMIE Automatic 4WD
RAM 1500 09/2010 12/2018 Ute DS EXF | 3.0L | Diesel TD AWD
RAM 1500 09/2010 12/2018 Ute DS EXF | 3.0L | Diesel TD AWD
RAM 1500 09/2010 12/2018 Ute DS EXF | 3.0L | Diesel TD AWD
RAM 1500 09/2010 12/2018 Ute DS EZH | 5.7L | Petrol - AWD
RAM 1500 09/2010 12/2018 Ute DS EZH | 5.7L | Petrol - AWD
