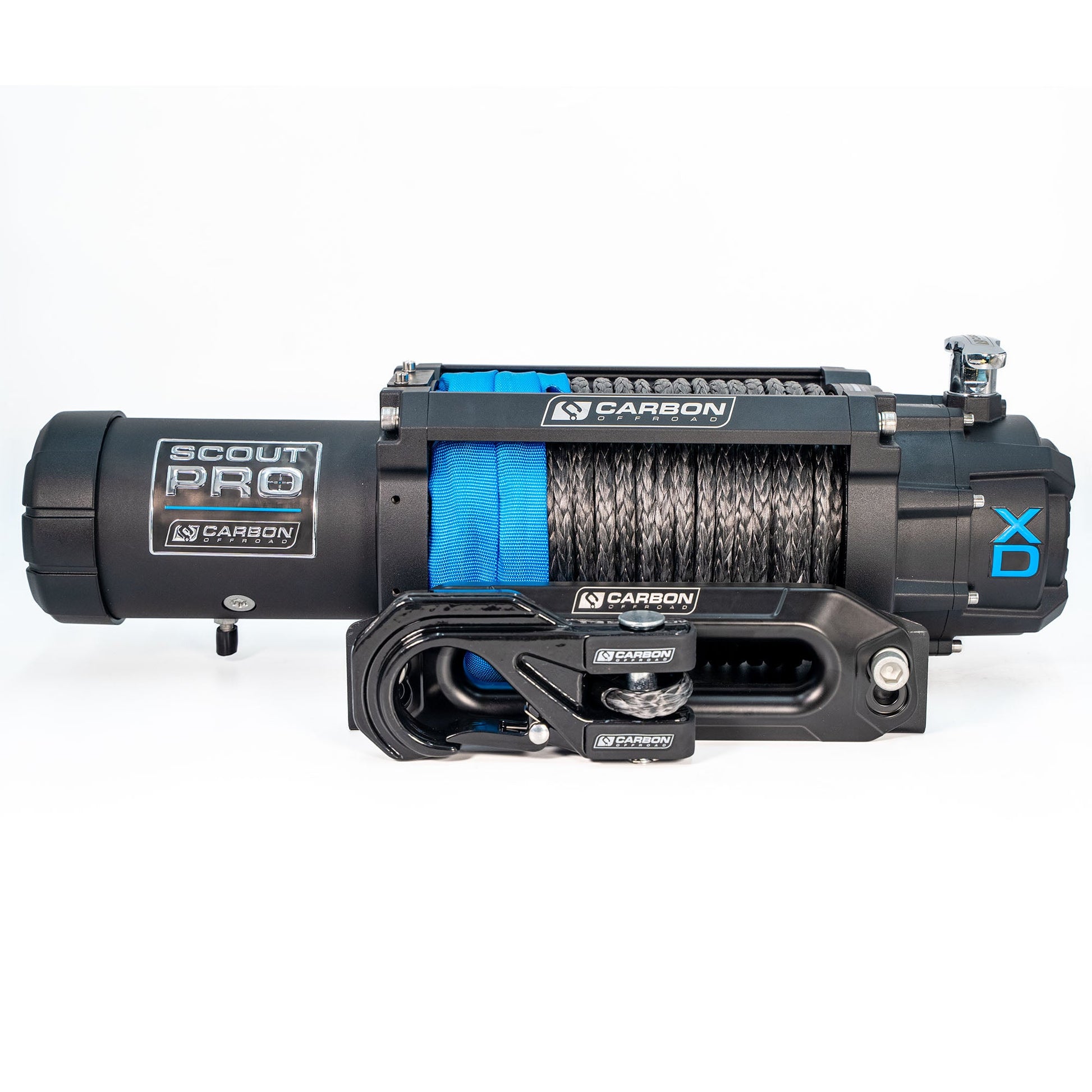

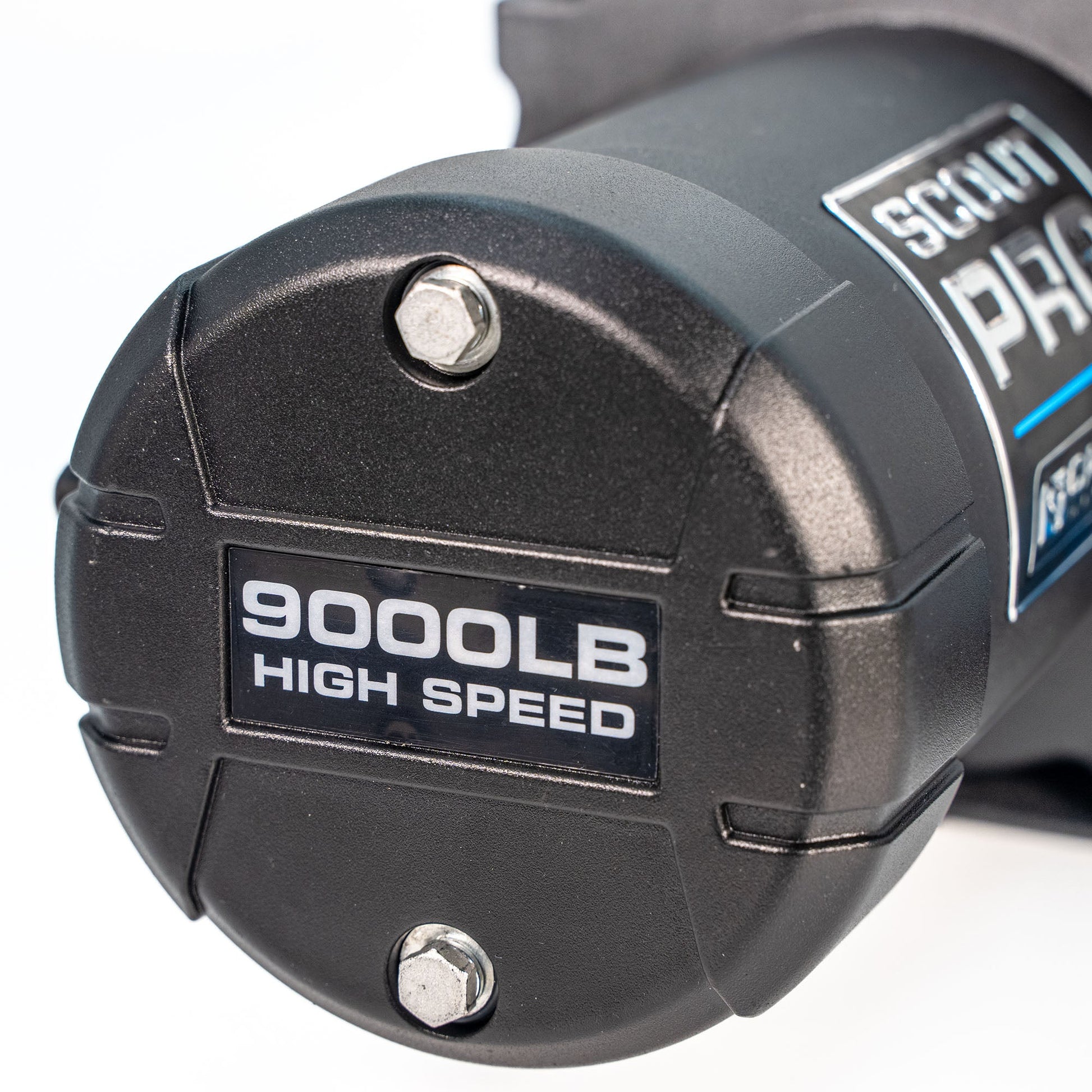

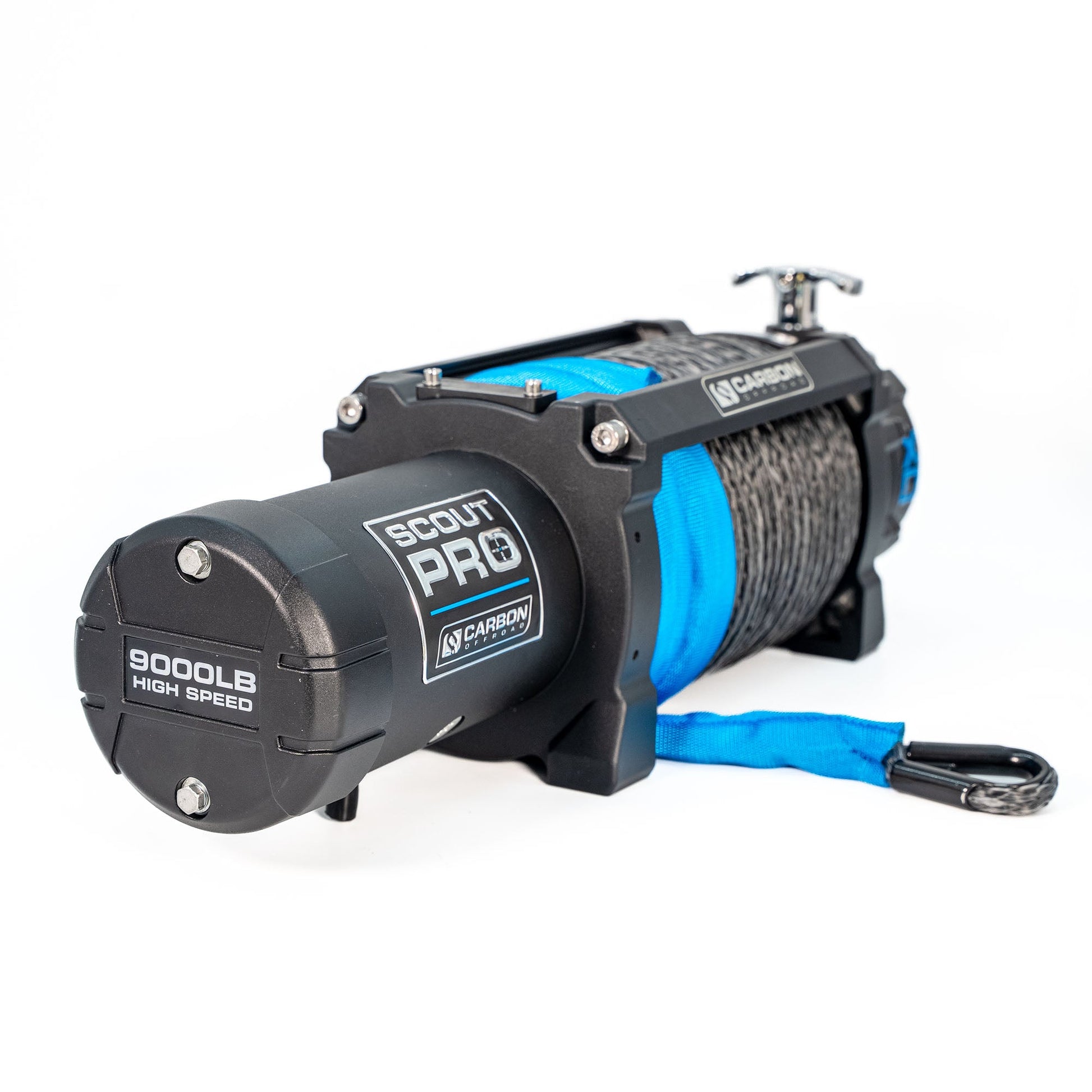

Carbon Offroad RS9 High Speed Winch Kit
CW-RS9-BLK
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

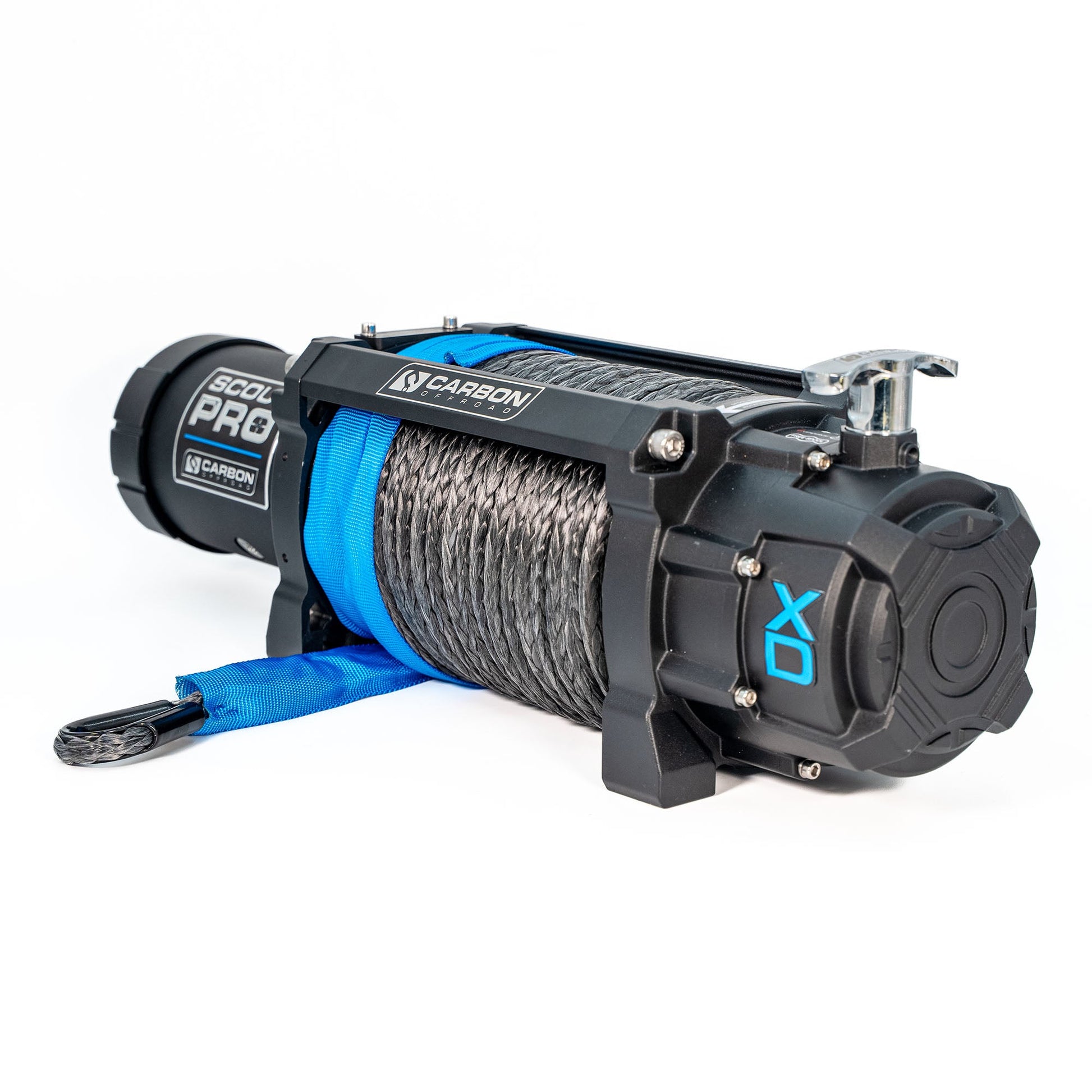

Carbon Offroad Scout Pro RS Series: Built for Speed
The Scout Pro RS Series is designed for winch challenges and high-speed recovery. If you’re looking to minimize recovery time without adding unnecessary weight to your rig, this series provides the highest power-to-weight ratio in its class.
The RS Series Breakdown
High-Speed Gearing: Equipped with an 8.0HP series-wound motor and an 80:1 gear ratio. This combination is tuned specifically for fast line speeds under load.
Weight Optimization: Built on the V3 chassis, the RS series focuses on reducing front-axle weight to maintain vehicle handling and suspension performance.

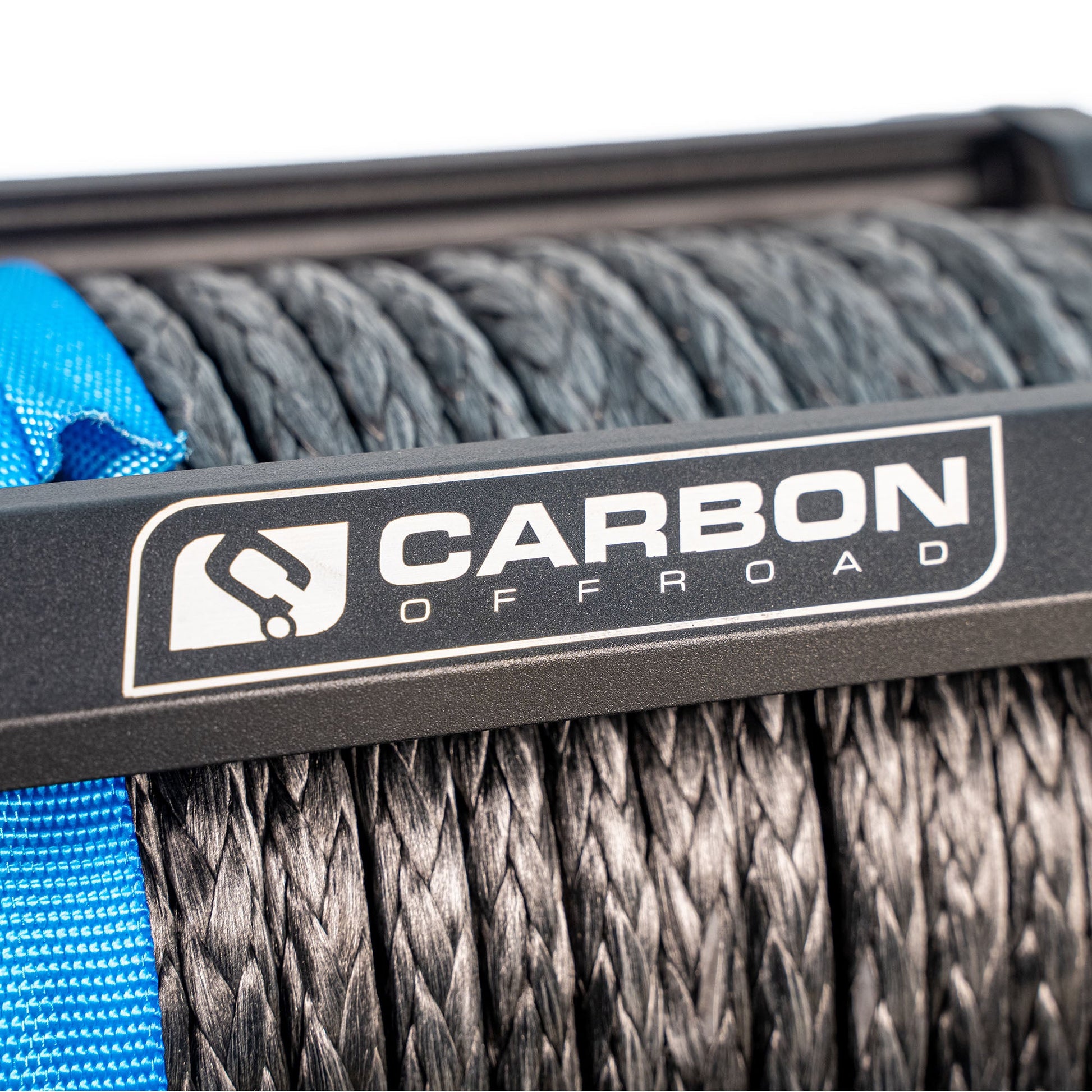

Line Capacity: Comes standard with 42m (137ft) of 8mm Spectra™ Fiber Synthetic UHMWPE rope. This extended length allows for distant anchor points that typically require external extensions.

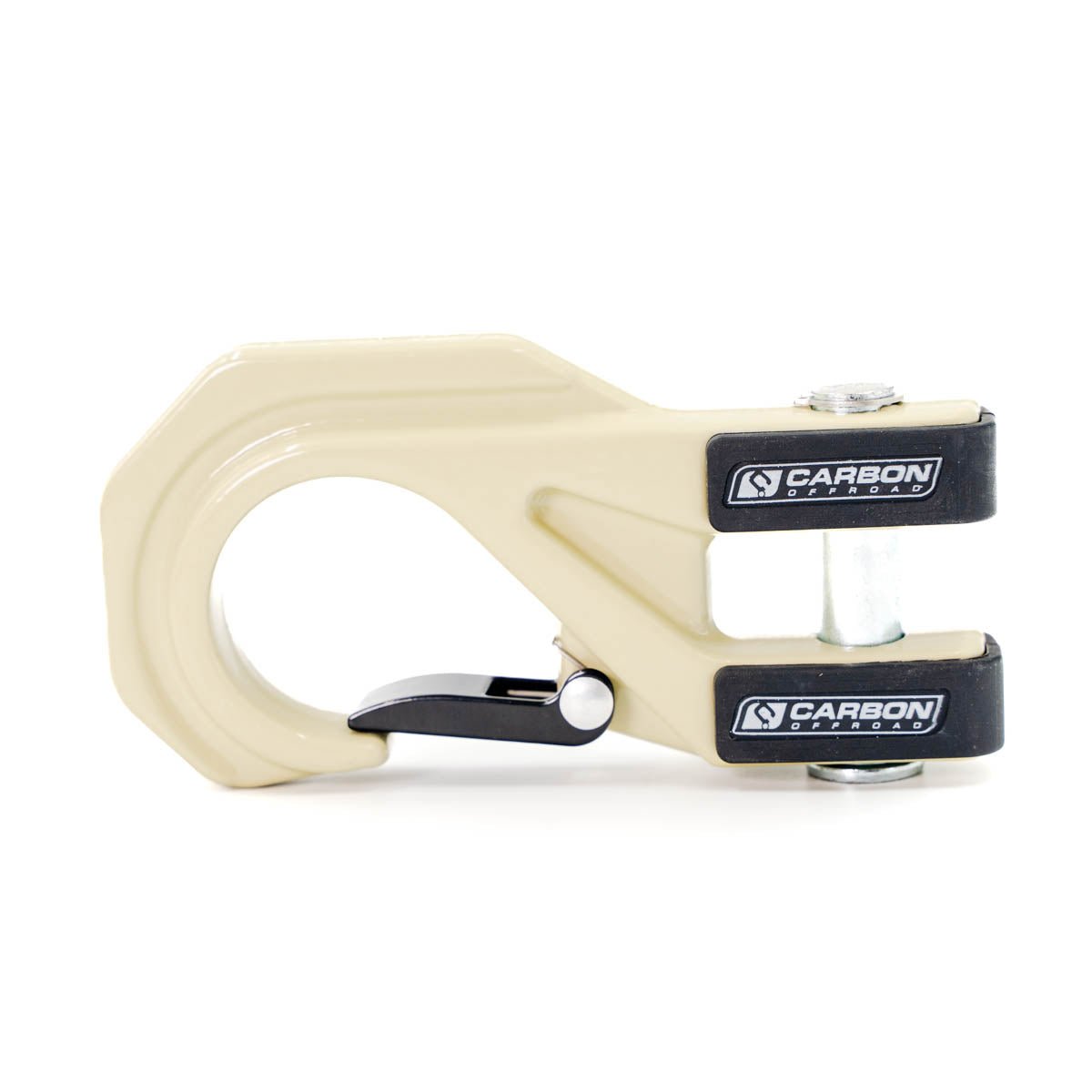

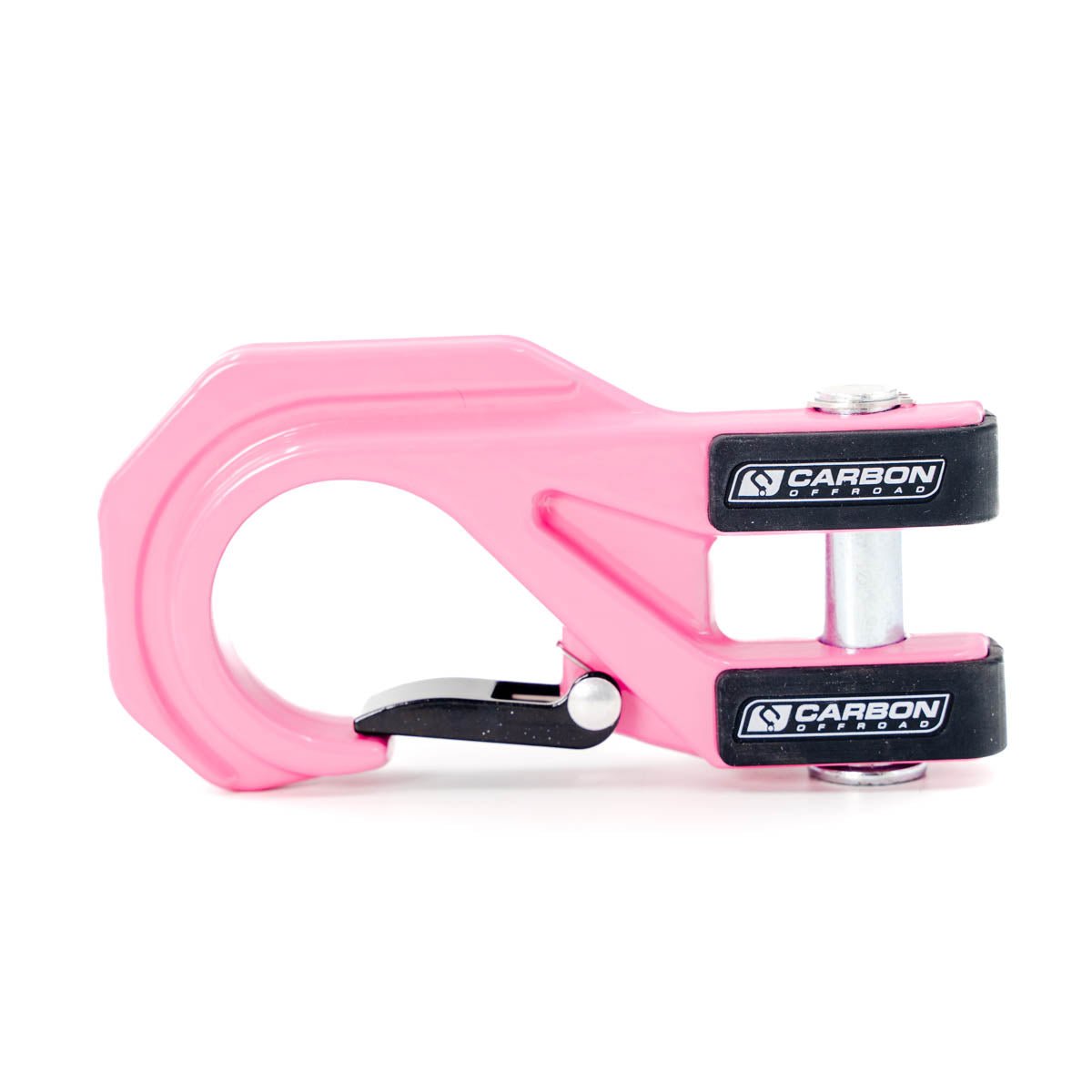

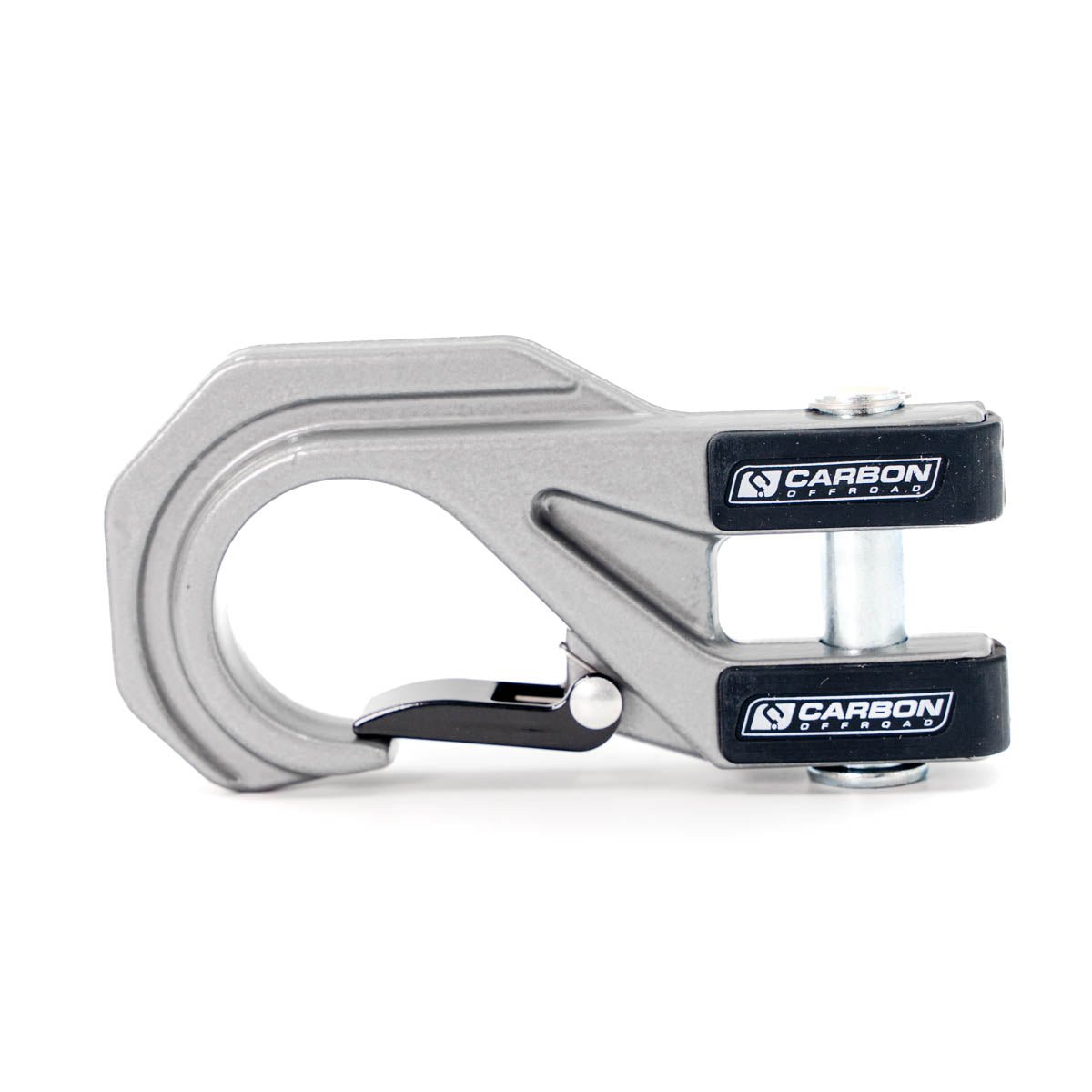

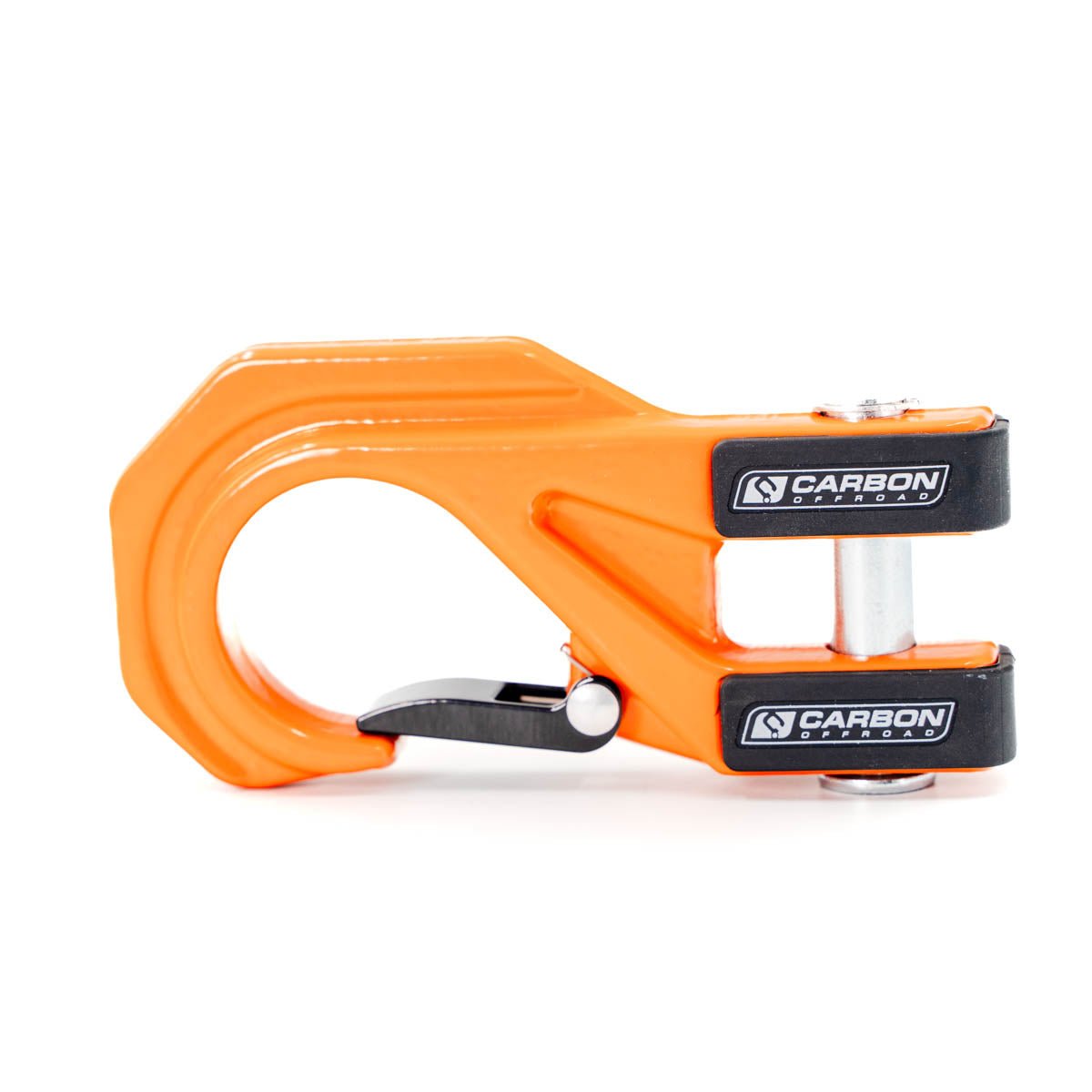

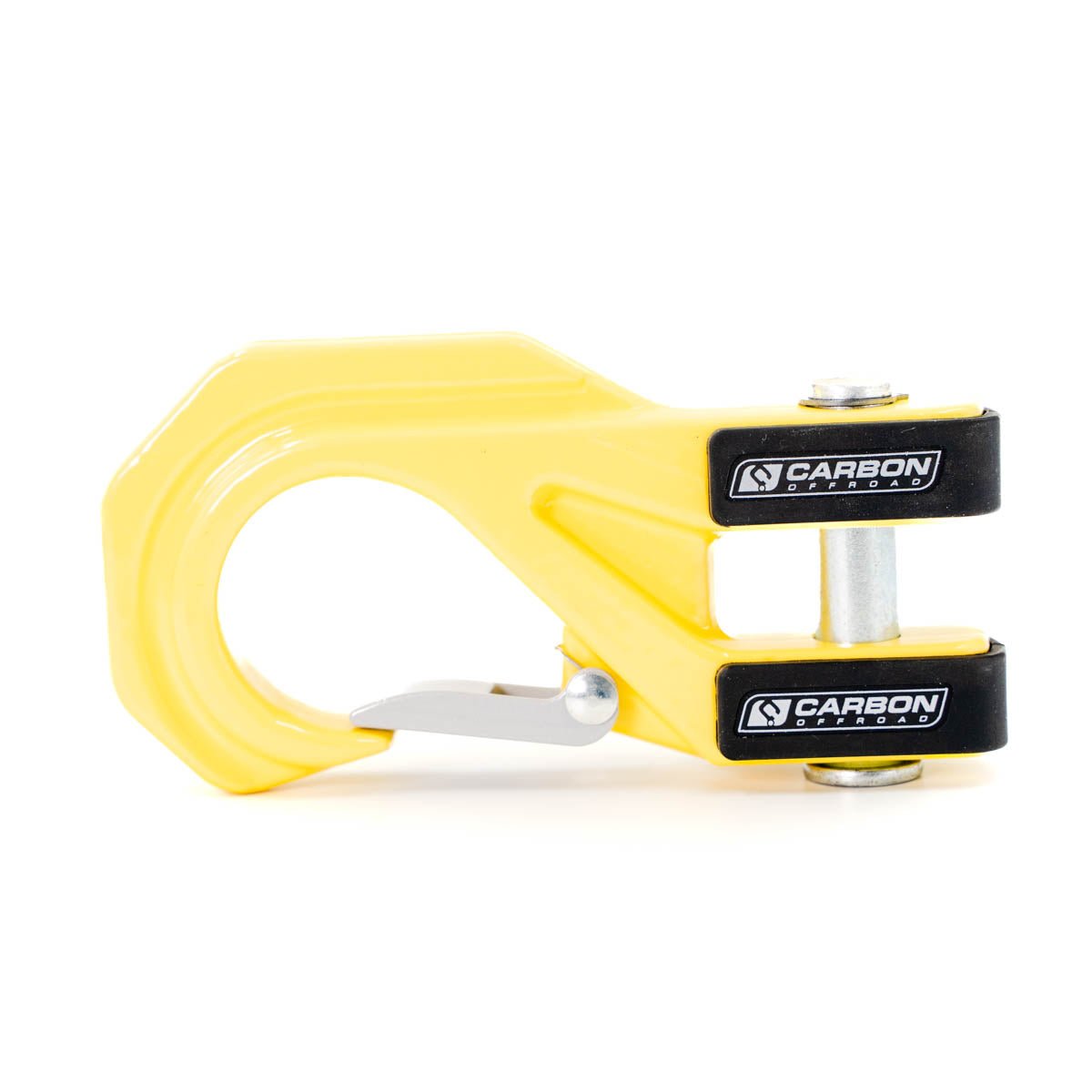

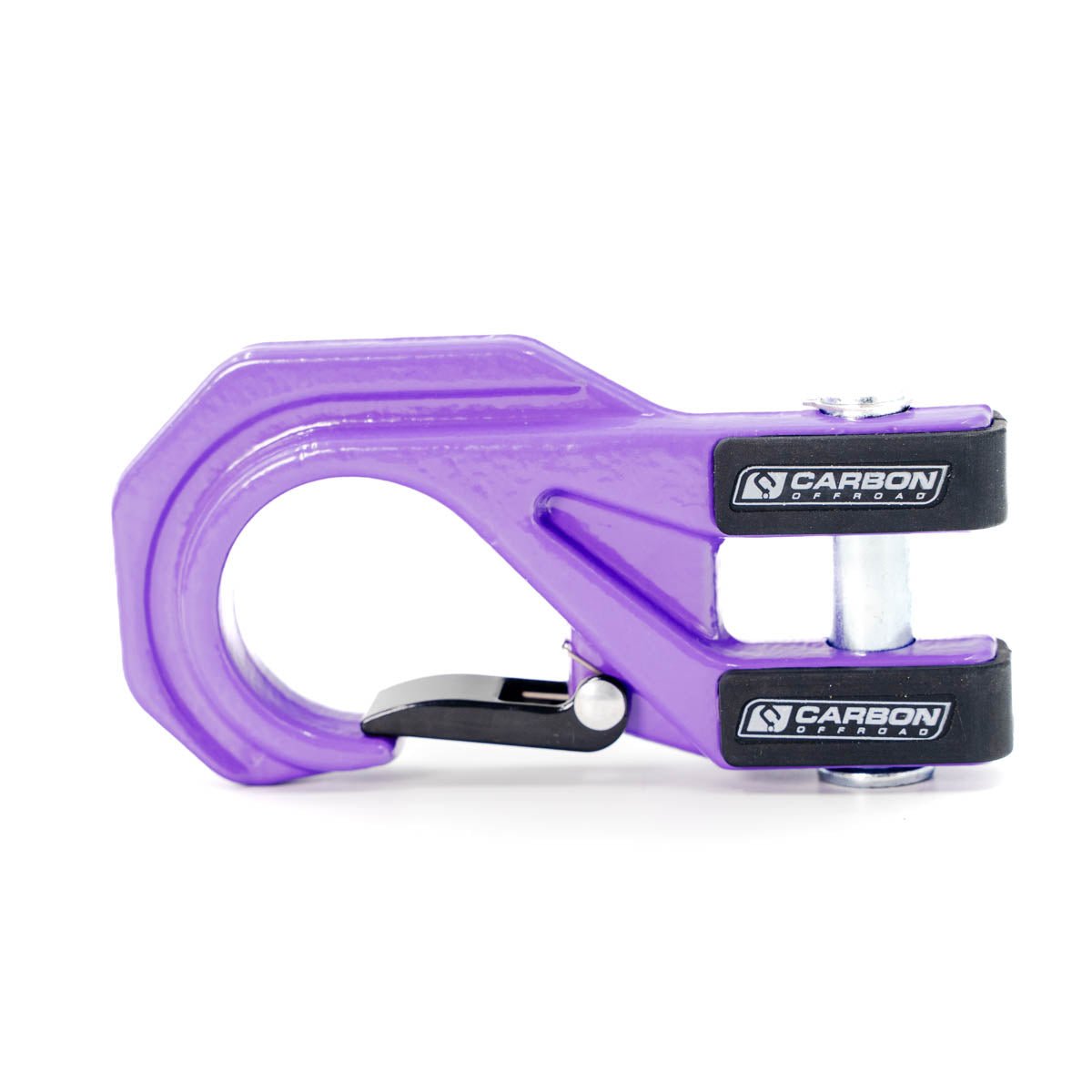

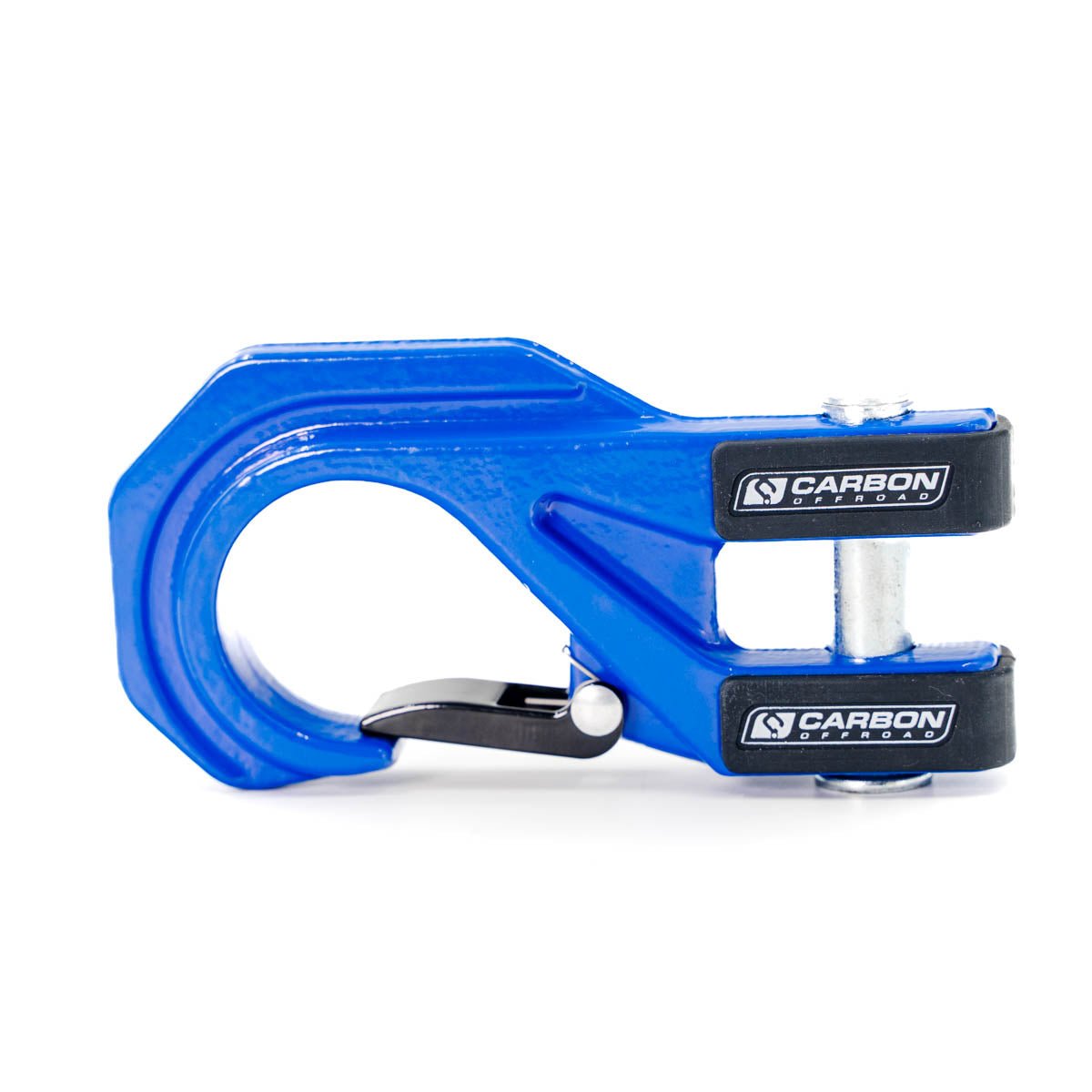

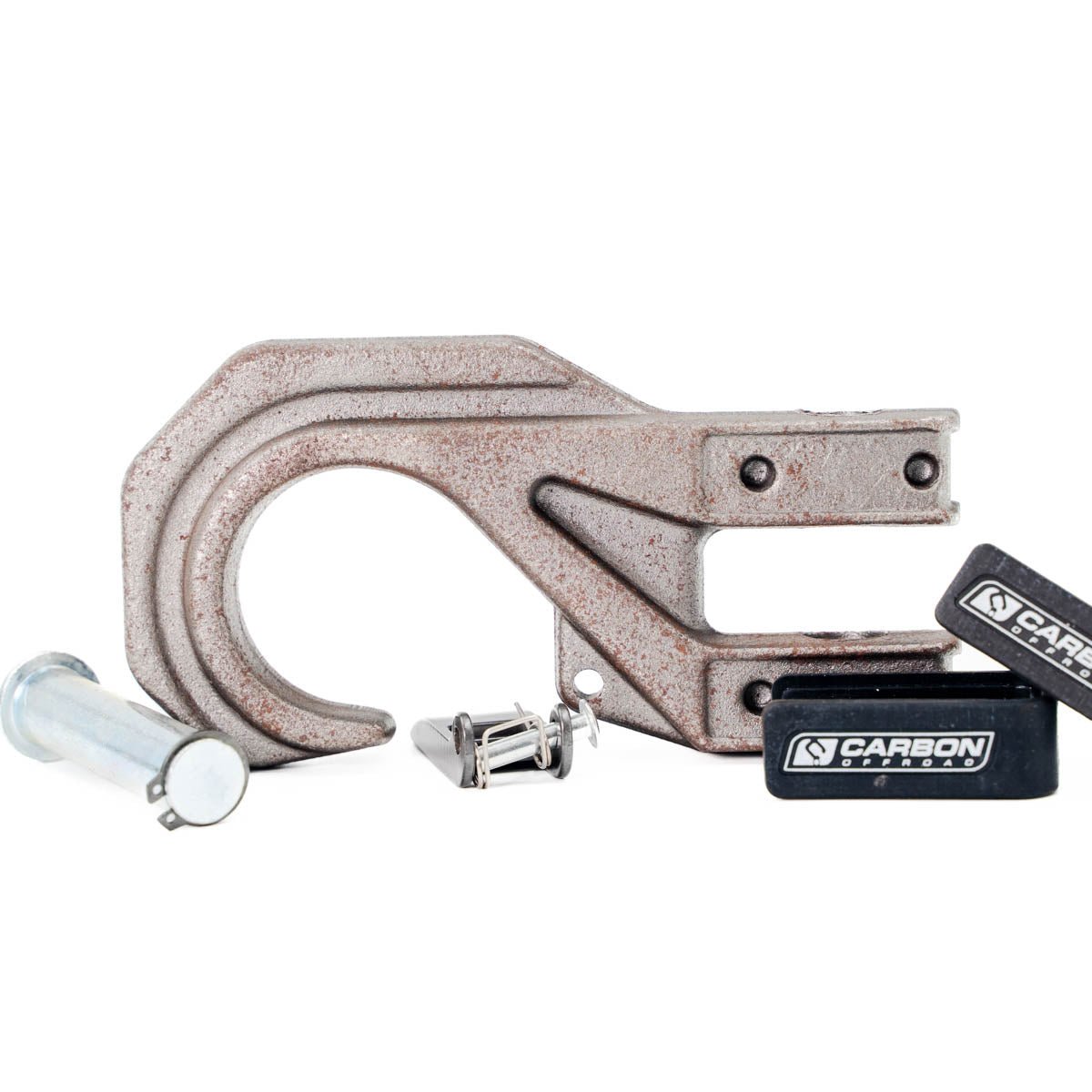

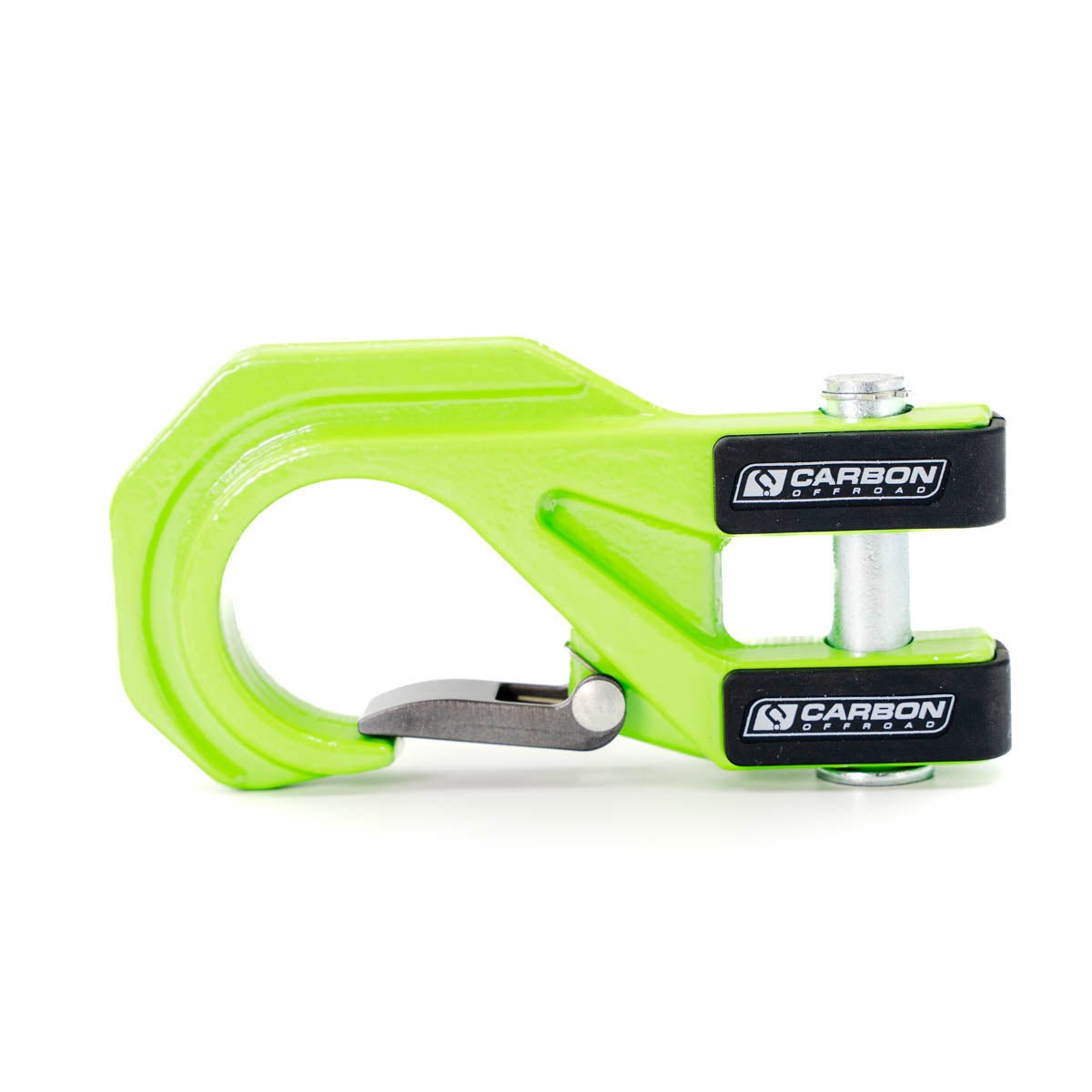

Competition Hardware: Every unit includes the Carbon Offroad MegaPro Hook as standard equipment.
The Bottom Line: This is a purpose-built winch for operators who prioritize fast cycle times, extended reach, and weight savings.
| Feature | Specification (Metric / Imperial) |
| Rated Line Pull | 4,080kg (9,000lb) |
| Motor | 8.0HP 12V Series-Wound |
| Gear Ratio | 80:1 Heavy-Duty Performance Gearing |
| Rope Dimensions | 8mm x 42m (5/16' x 137ft) |
| Rope Material | Spectra™ Fiber Synthetic UHMWPE |
| Water/Dust Sealing | IP68 Rated |
| Winch Dimensions (L x W x H) | 572mm x 158mm x 187mm (22.52' x 6.22' x 7.36') |
| Drum Diameter x Length | 63mm x 224mm (2.5' x 8.8') |
| Mounting Bolt Pattern | 254mm x 114.3mm (10' x 4.5') |
| Chassis | Carbon Offroad Version 3 (V3) |

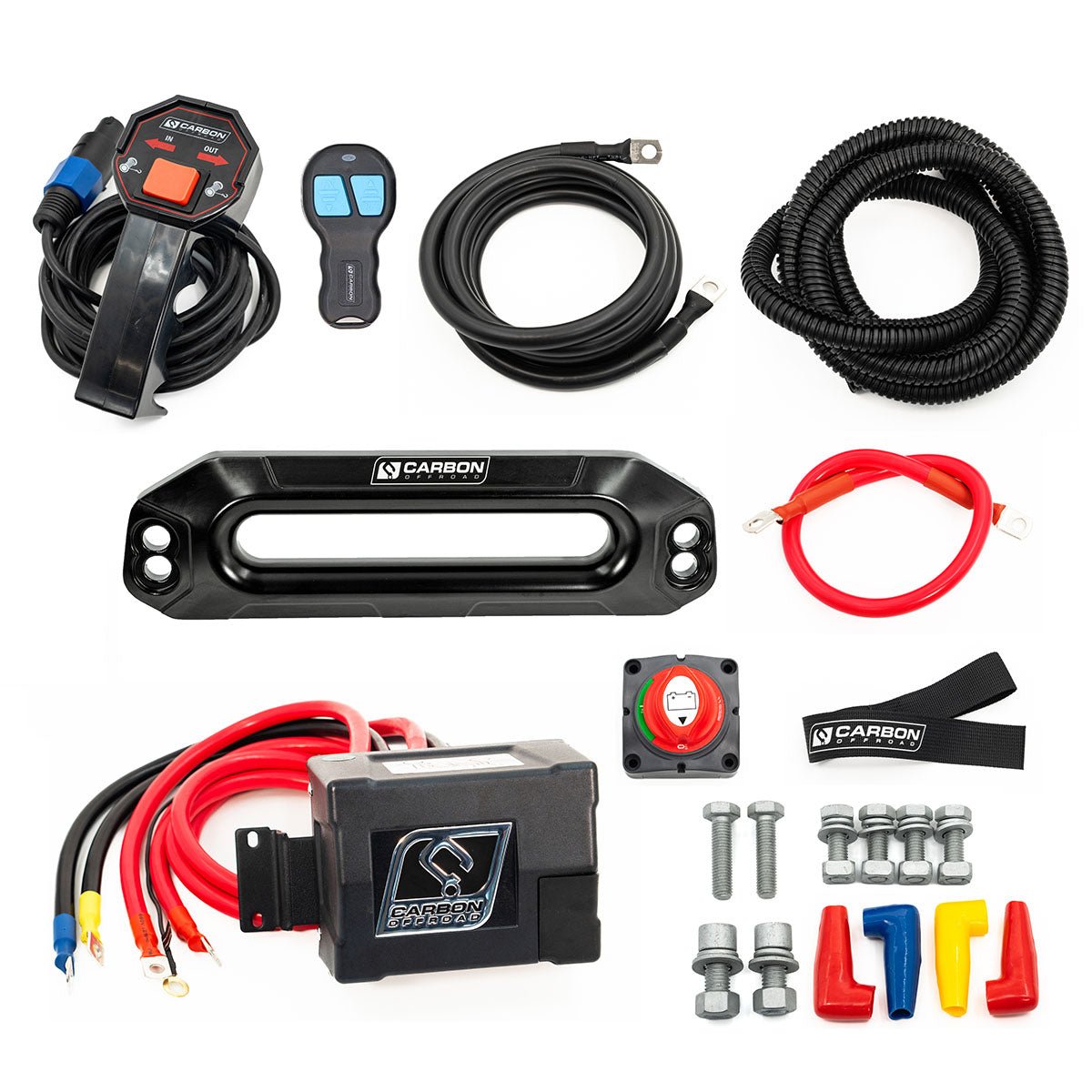

| Included Hardware | MegaPro Hook, Fairlead, Wiring Accessory Kit |
| Line Pull (lbs / kgs) | Line Speed (ft/min / m/min) | Motor Current (Amps) |
| 0 | 79.4 ft (24.2 m) | 55 A |
| 4000 lbs (1816 kg) | 18.4 ft (5.6 m) | 180 A |
| 7000 lbs (3180 kg) | 13.8 ft (4.2 m) | 310 A |
| 9000 lbs (4090 kg) | 8.5 ft (2.6 m) | 440 A |
| Layer | Rated Line Pull (lbs / kgs) |
| 1 | 9000 lbs (4090 kg) |
| 2 | 7760 lbs (3524 kg) |
| 3 | 6690 lbs (3040 kg) |
| 4 | 5760 lbs (2615 kg) |
