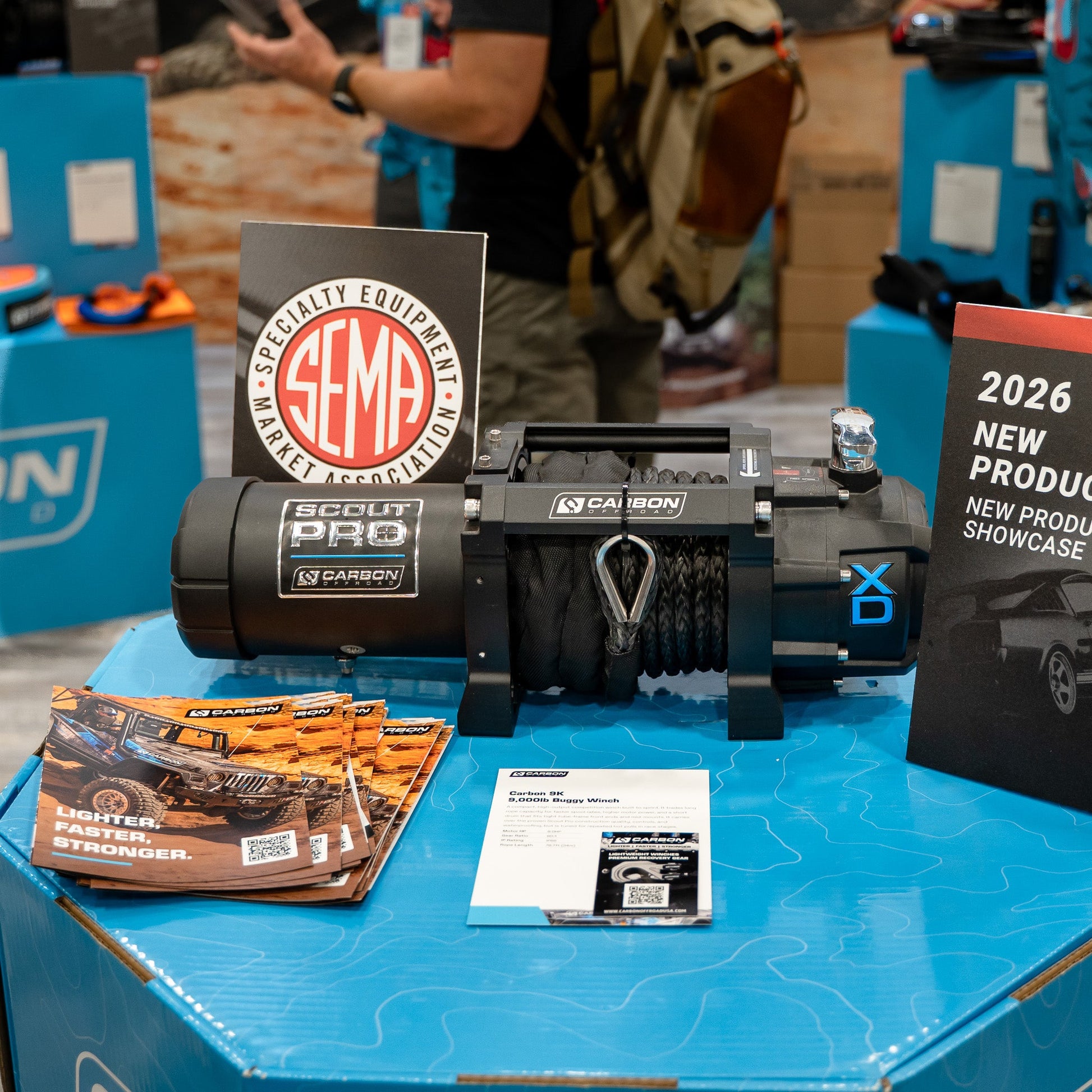

Carbon Offroad Scout Pro RS9-S (Short Drum)
Compact Power for Competition The Scout Pro RS9-S is the short-drum variant of our high-speed series, built for race buggies, UTVs, and custom builds where mounting space is limited but speed is non-negotiable.
Performance Specs
The RS9-S doesn't sacrifice power for its smaller footprint. It runs the same 8.0HP motor as our full-size unit, paired with a performance-tuned 80:1 gear ratio. This setup provides the highest line speeds available in the UTV/Buggy class, ensuring you spend less time winching and more time moving.
Chassis: Ultra-lightweight short-drum design.
Rope: 24m (80ft) of 8mm Spectra™ Fiber synthetic rope.
Purpose: High-speed recovery for weight-sensitive, space-restricted race applications.
It’s built to be a fast, reliable recovery tool that keeps the front end light and fits where standard winches won't.
| Feature | Specification (Metric / Imperial) |
| Rated Line Pull | 4,080kg (9,000lb) |
| Motor | 8.0HP 12V Series-Wound |
| Gear Ratio | 80:1 Heavy-Duty Performance Gearing |
| Rope Dimensions | 8mm x 24m (5/16' x 80ft) |
| Rope Material | Spectra™ Fiber Synthetic UHMWPE |
| Water/Dust Sealing | IP68 Rated |
| Winch Dimensions (L x W x H) | 385mm x 115mm x 120mm (15.16' x 4.53' x 4.7') |
| Drum Diameter x Length | 63mm x 122mm (2.5' x 4.8') |
| Mounting Bolt Pattern | 164mm x 114.3mm (6.46' x 4.5') |

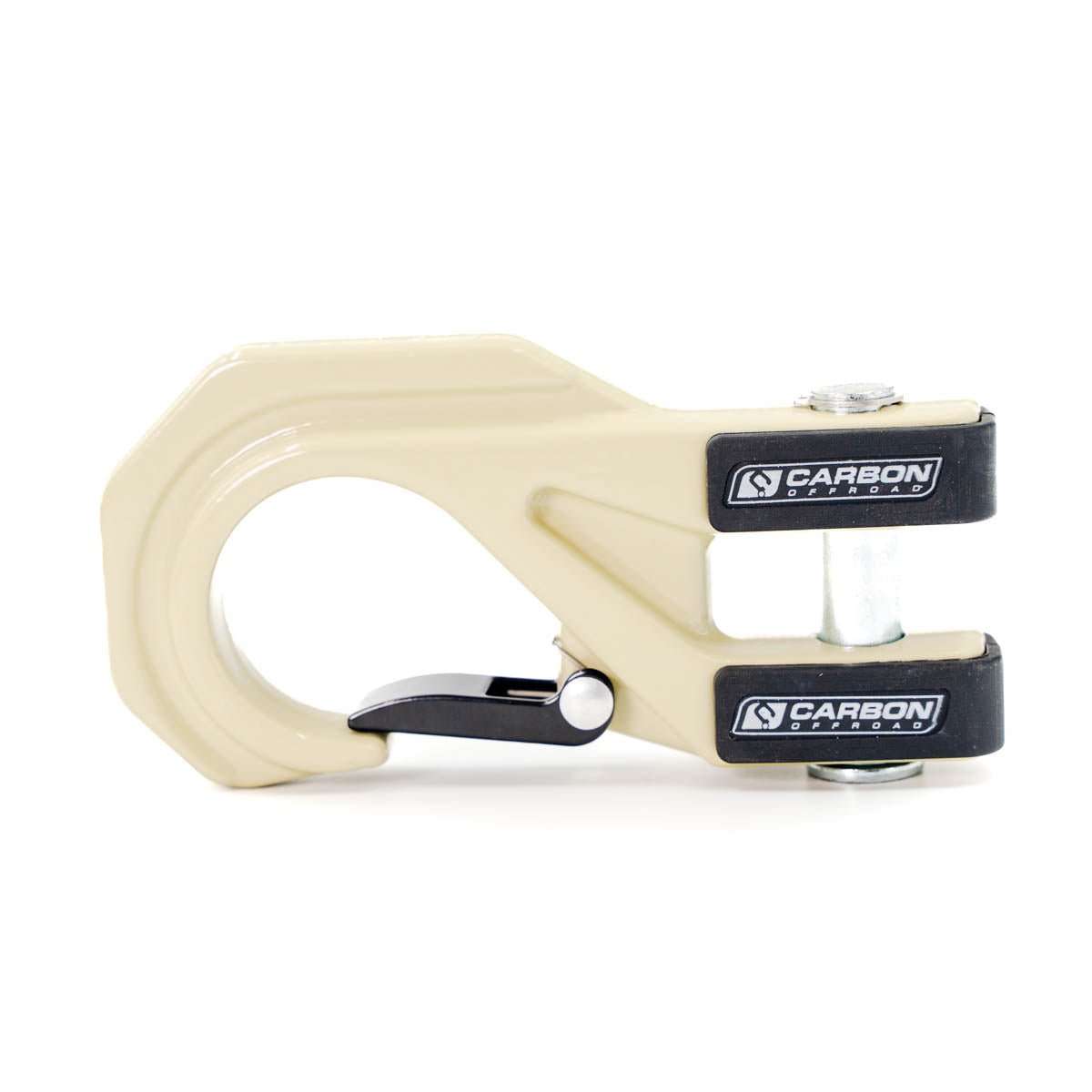

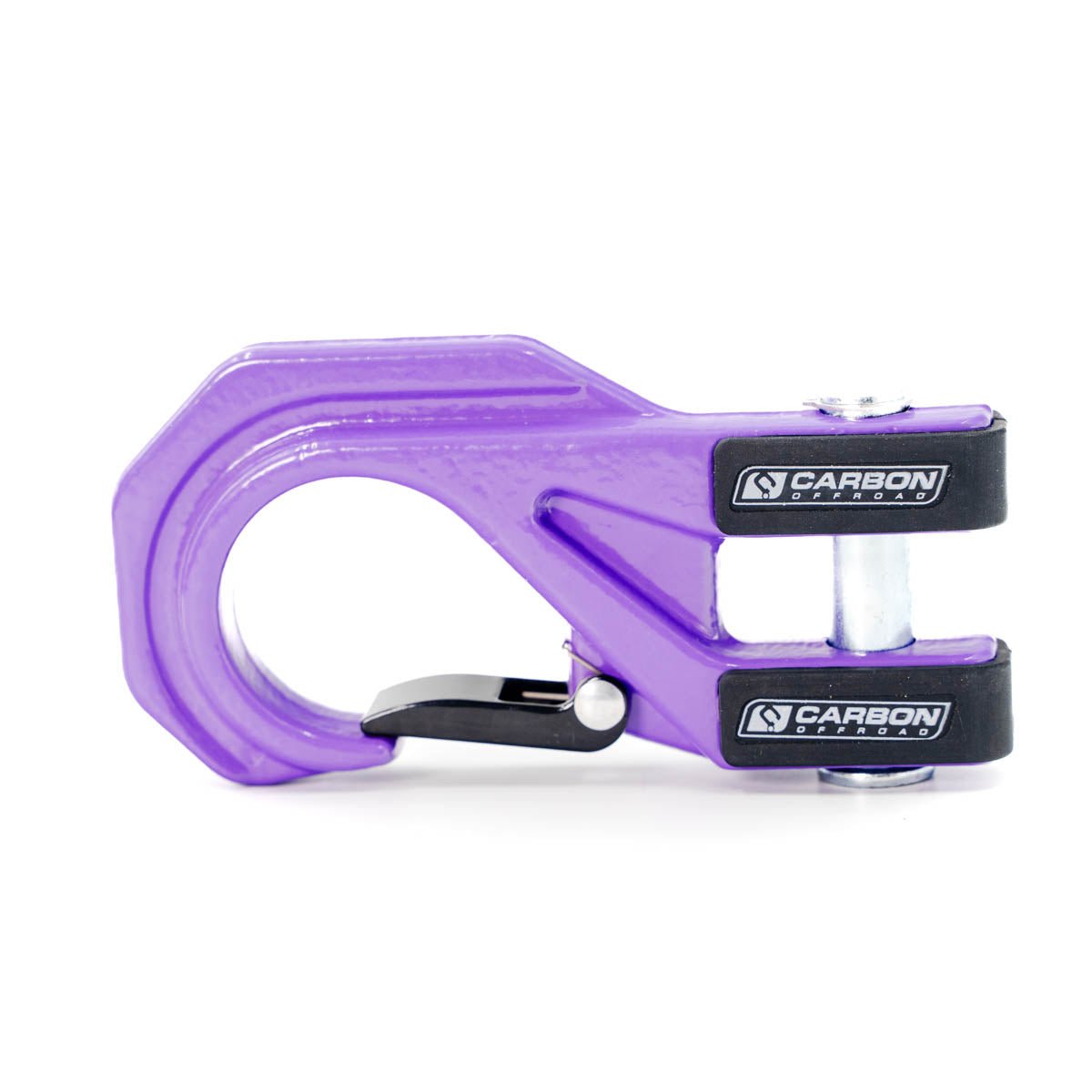

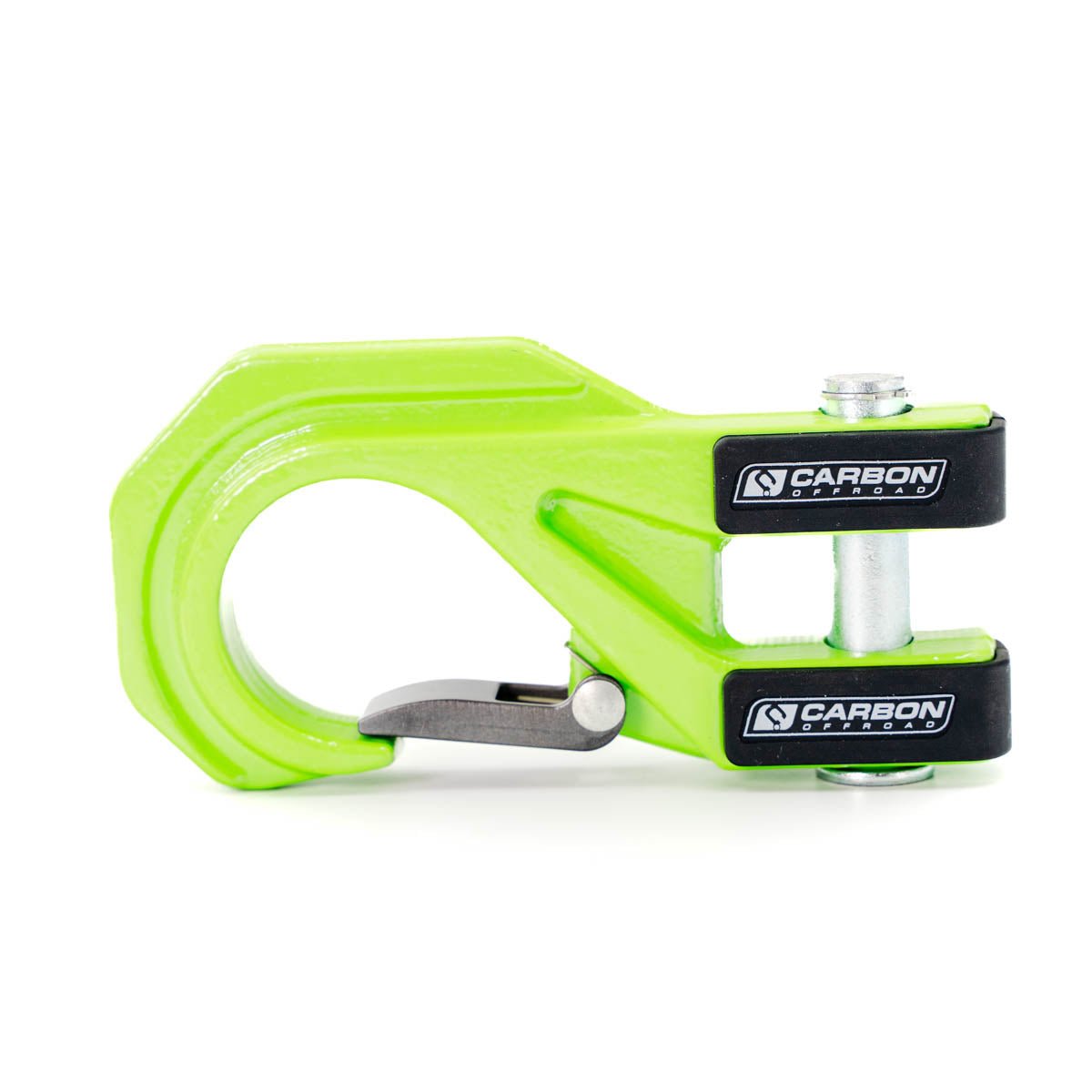

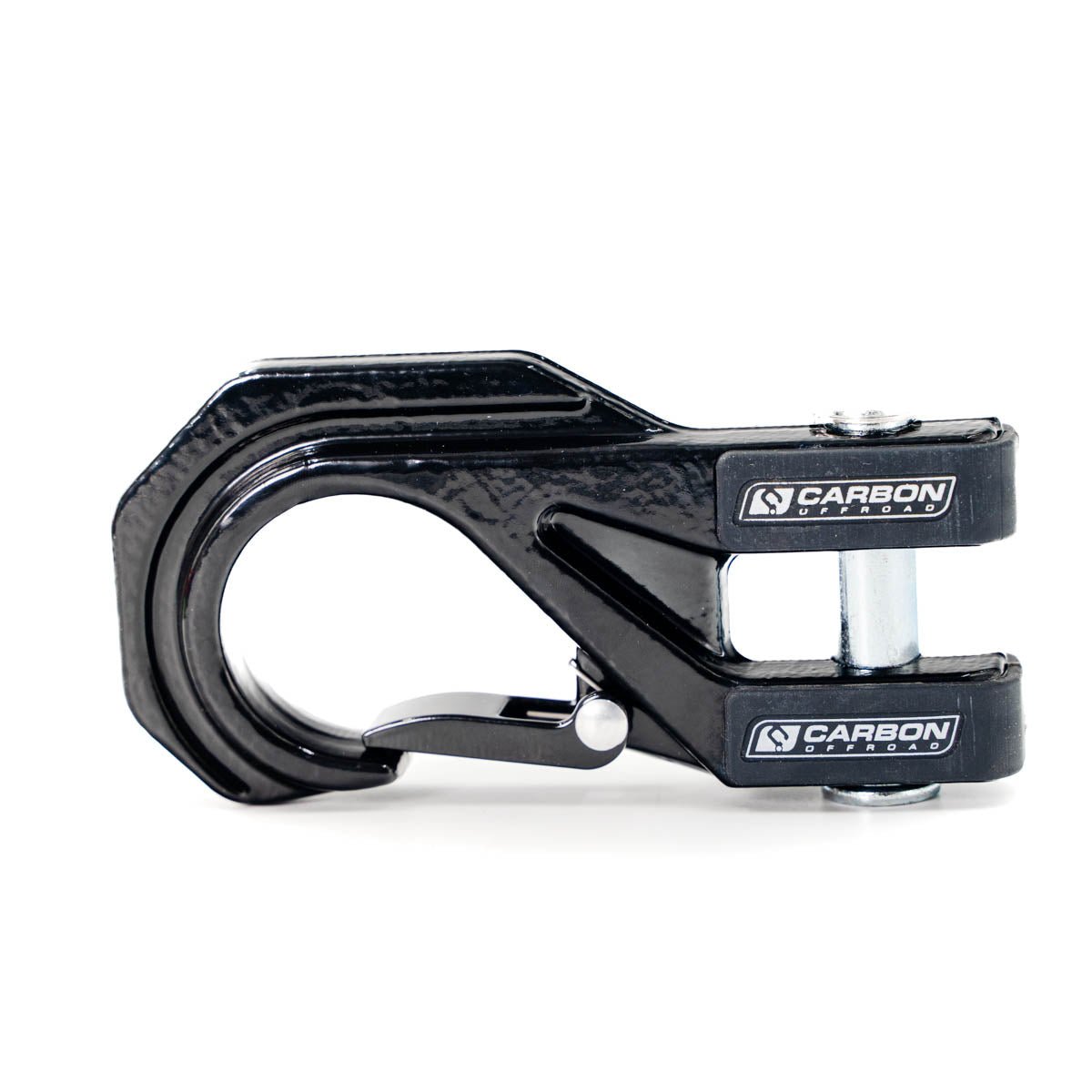

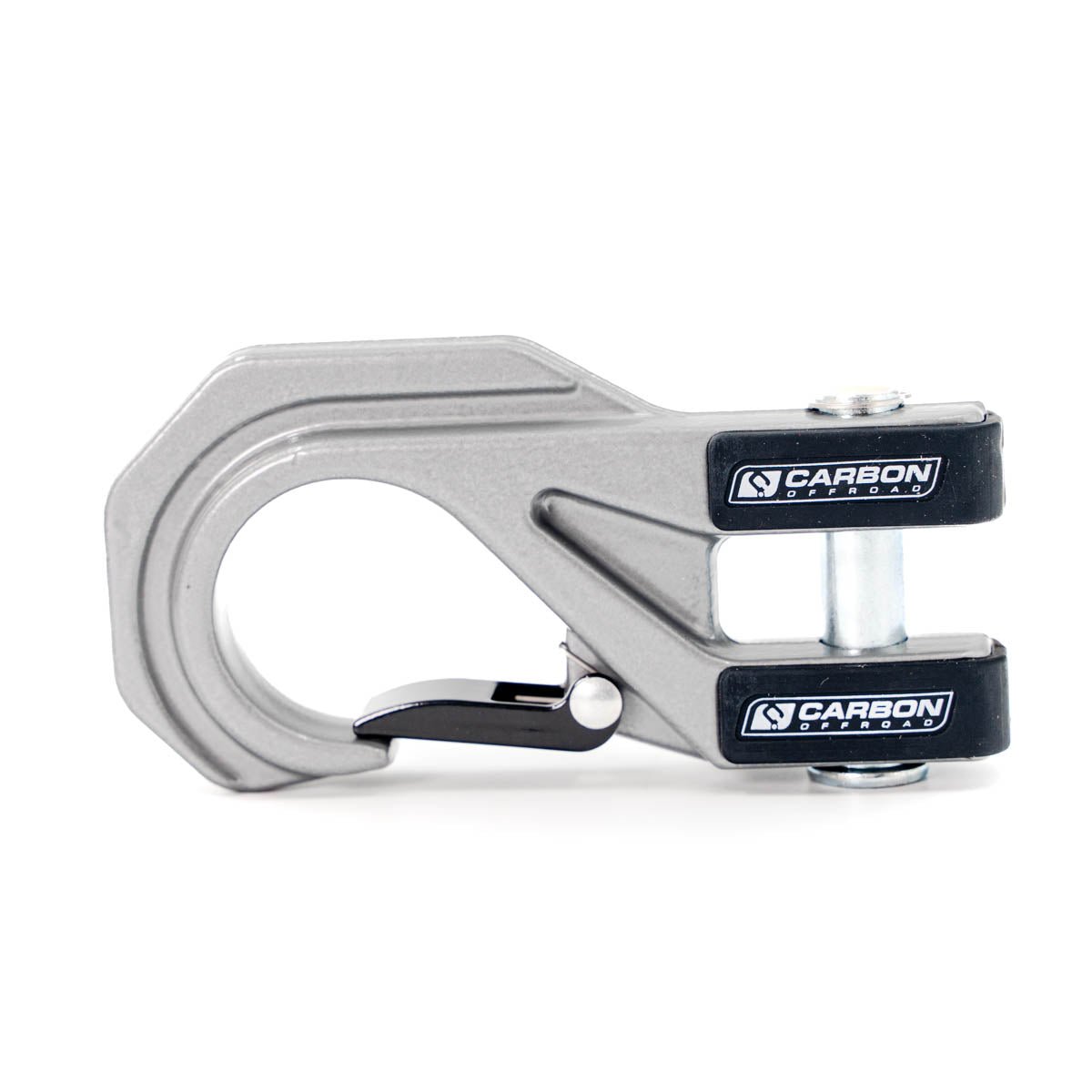

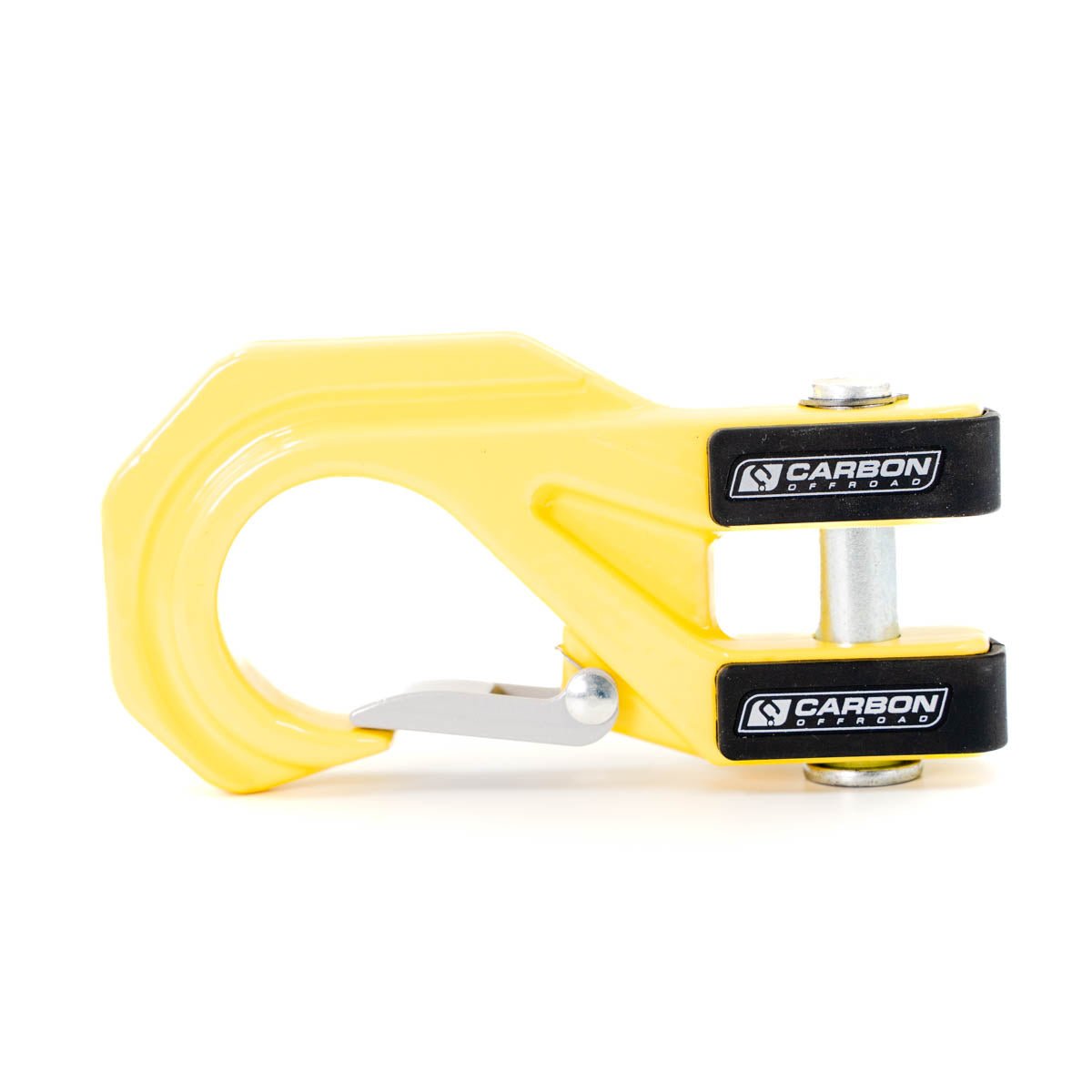

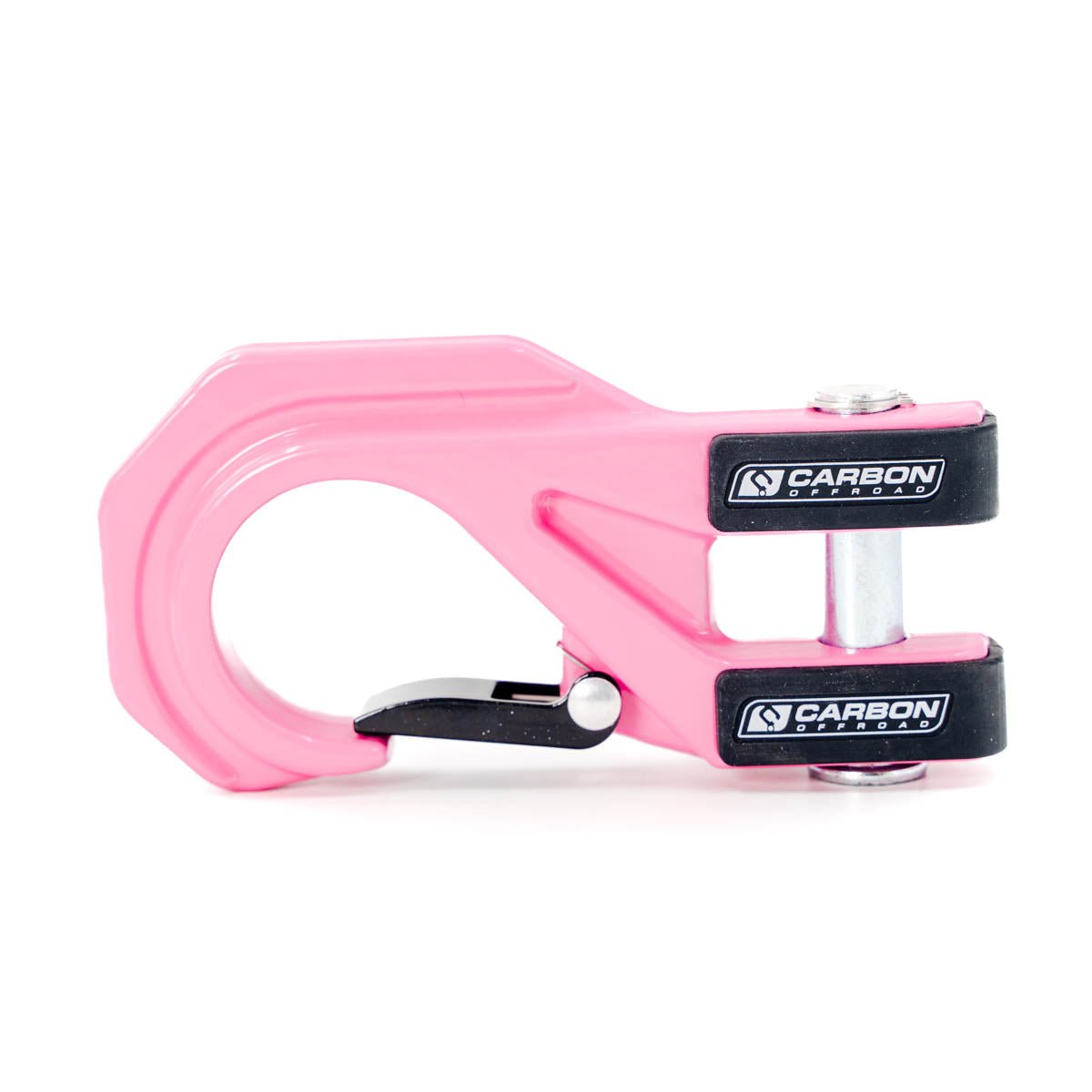

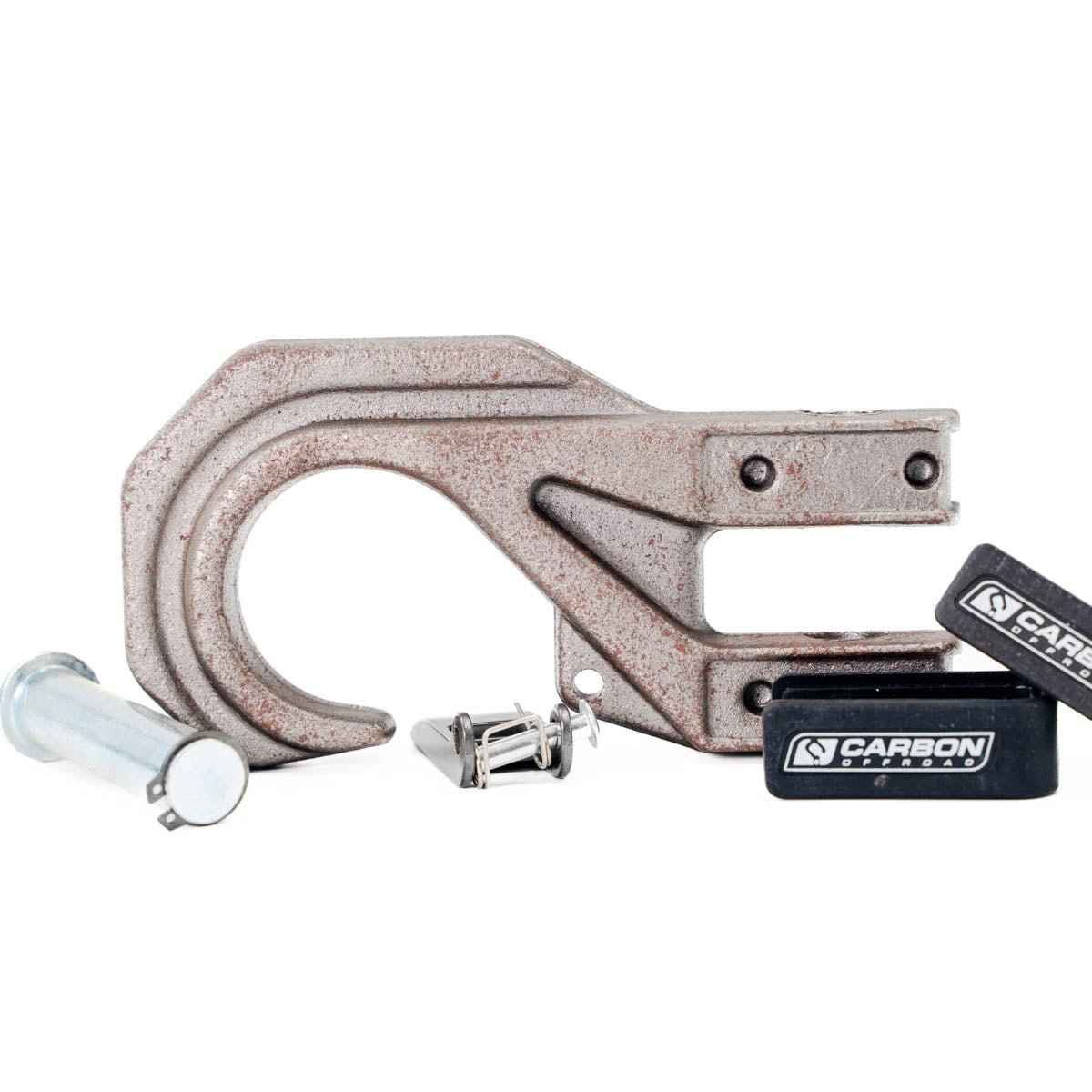

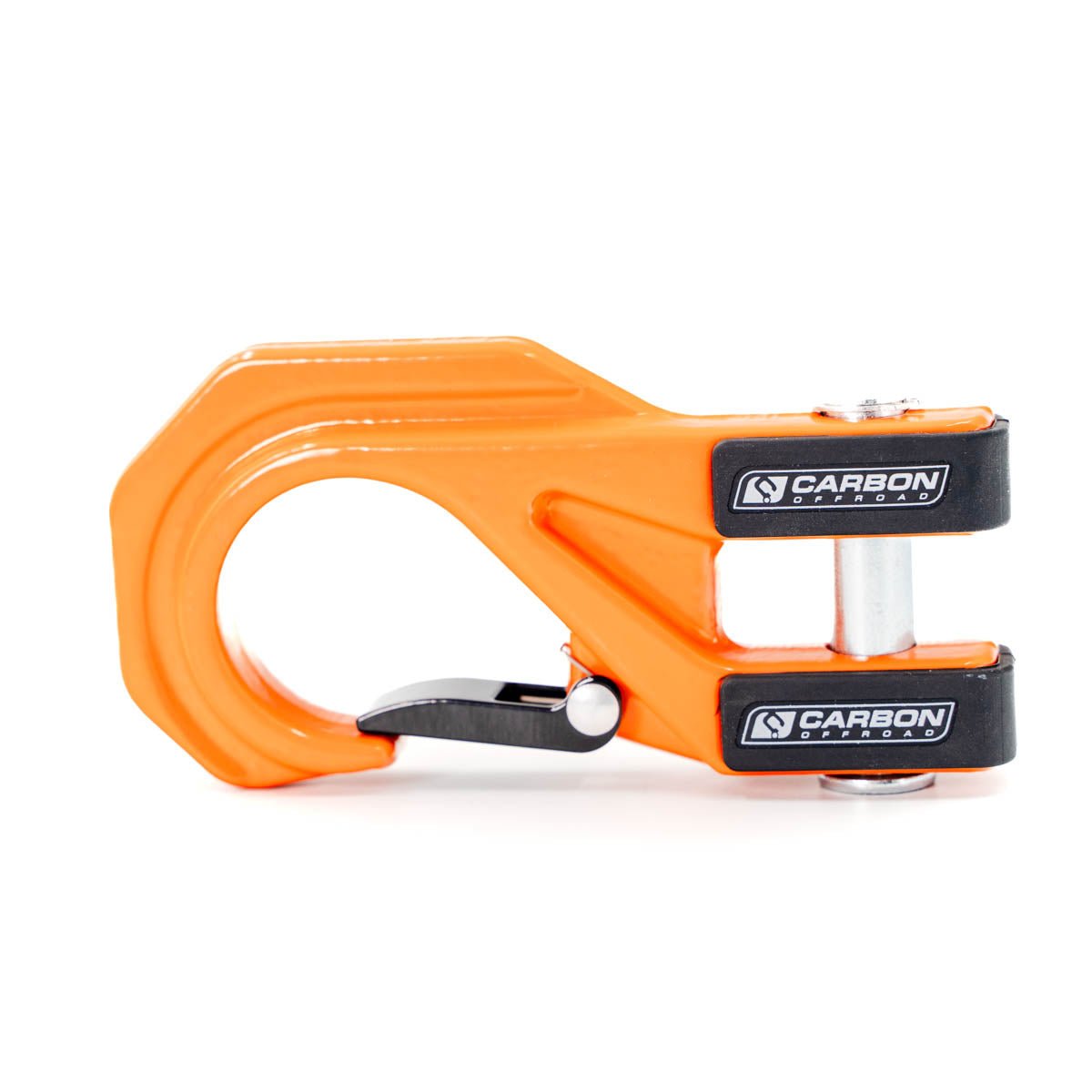

| Included Hardware | MegaPro Hook, Fairlead, Wiring Accessory Kit |
| Winch Weight | 22kg 48.4lb |
| Line Pull (lbs / kgs) | Line Speed (ft/min / m/min) | Motor Current (Amps) |
| 0 | 79.4 ft (24.2 m) | 55 A |
| 4000 lbs (1816 kg) | 18.4 ft (5.6 m) | 180 A |
| 7000 lbs (3180 kg) | 13.8 ft (4.2 m) | 310 A |
| 9000 lbs (4090 kg) | 8.5 ft (2.6 m) | 440 A |
| Layer | Rated Line Pull (lbs / kgs) |
| 1 | 9000 lbs (4090 kg) |
| 2 | 7760 lbs (3524 kg) |
| 3 | 6690 lbs (3040 kg) |
| 4 | 5760 lbs (2615 kg) |
Builder & Racer Note
The RS9-S features a shortened drum and chassis to fit narrow mounting locations common in race buggies and UTVs. Despite its compact 385mm (15.16 inch) length, it retains the full-sized 8.0HP motor. Ensure your mounting plate or winch cradle is rated for 9,000lb (4,080kg) loads, as this unit packs significantly more punch than standard UTV-class winches.
