Dual Battery - 300 Series Landcruiser - Under Bonnet

Toyota LandCruiser 300 Series Under-Bonnet Dual Battery Kit

Designed for a clean, factory-style power upgrade, the Toyota LandCruiser 300 Series Under-Bonnet Dual Battery Kit delivers reliable off-grid performance without sacrificing interior or cargo space. Purpose-built for the LC300 platform, this plug-and-play system integrates seamlessly under the bonnet while maintaining a tidy OEM-style finish.

Add the Isolated Anderson Plug for caravan charging, ESC power for your van, or a Tow-Pro and trailer bracket for a complete towing and power solution.

Key Features

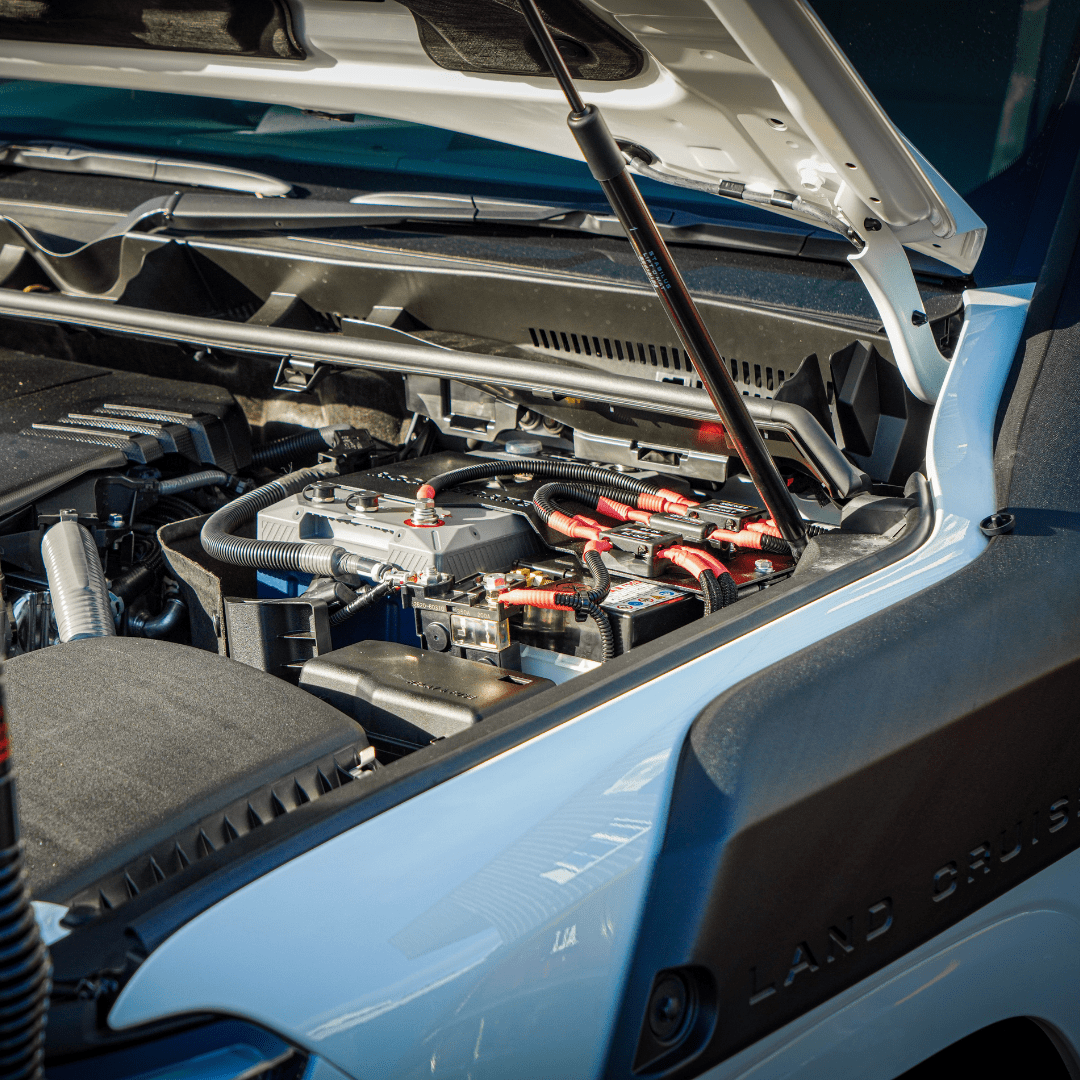

Under-bonnet install – Keeps your interior and cargo space free for gear, passengers, and storage.

Retains Factory Plastic Battery Cover - fits back on over the dual & start battery

Pre-wired components – Delivered as a true plug & play system for a fast, hassle-free installation.

Vehicle-specific charge harness – Designed specifically for the LC300 for perfect fitment with no cutting or splicing.

Heavy-duty 6 B&S cabling – Ensures efficient charging of lithium dual battery systems while you drive, covered in self-winding sheathing.

Custom battery tray & BCDC bracket – Laser-cut aluminium, powder-coated matte black for durability and a clean look.

Designed and built by Accelerate – Proudly engineered and tested on the Sunshine Coast for Australian touring conditions.

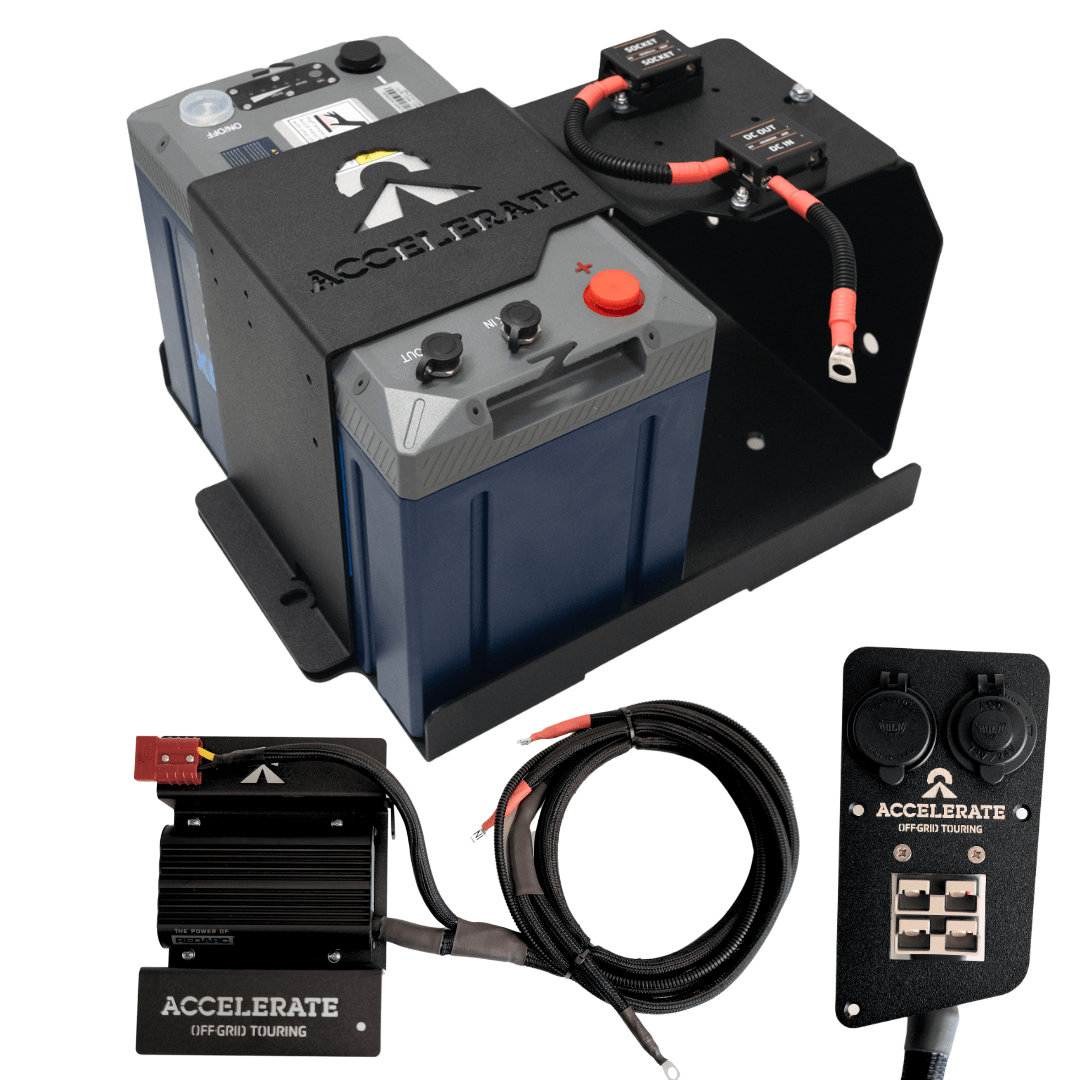

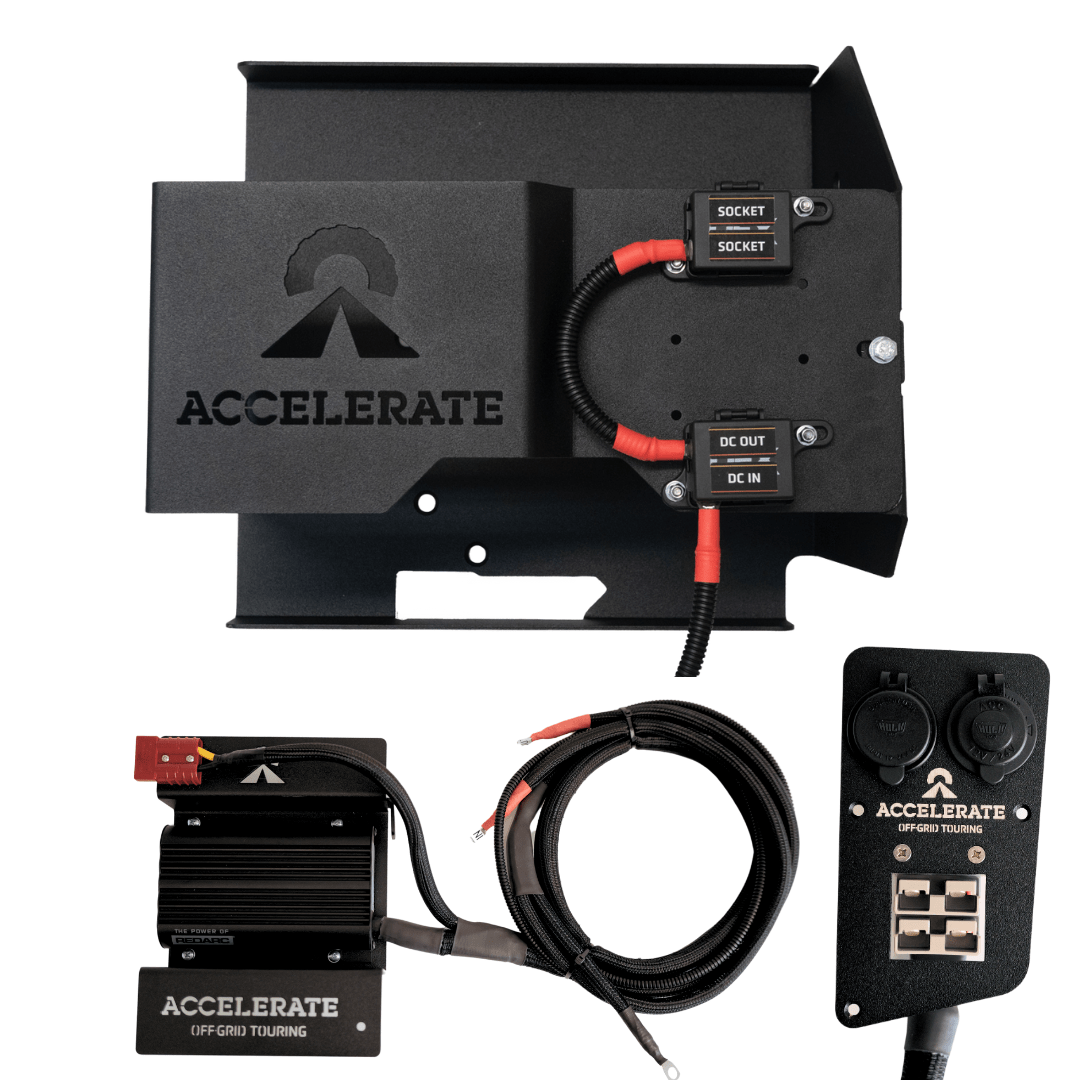

What’s Included

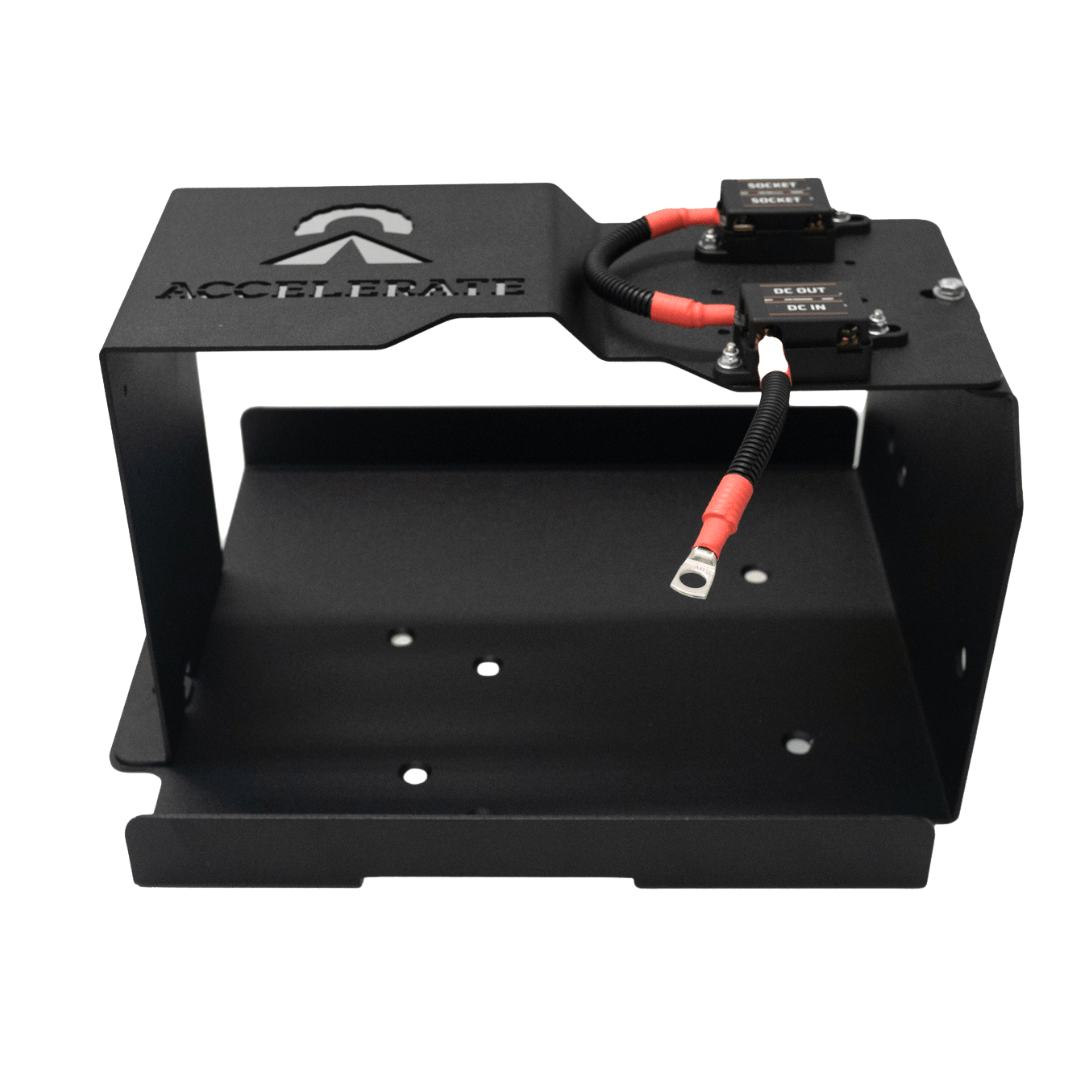

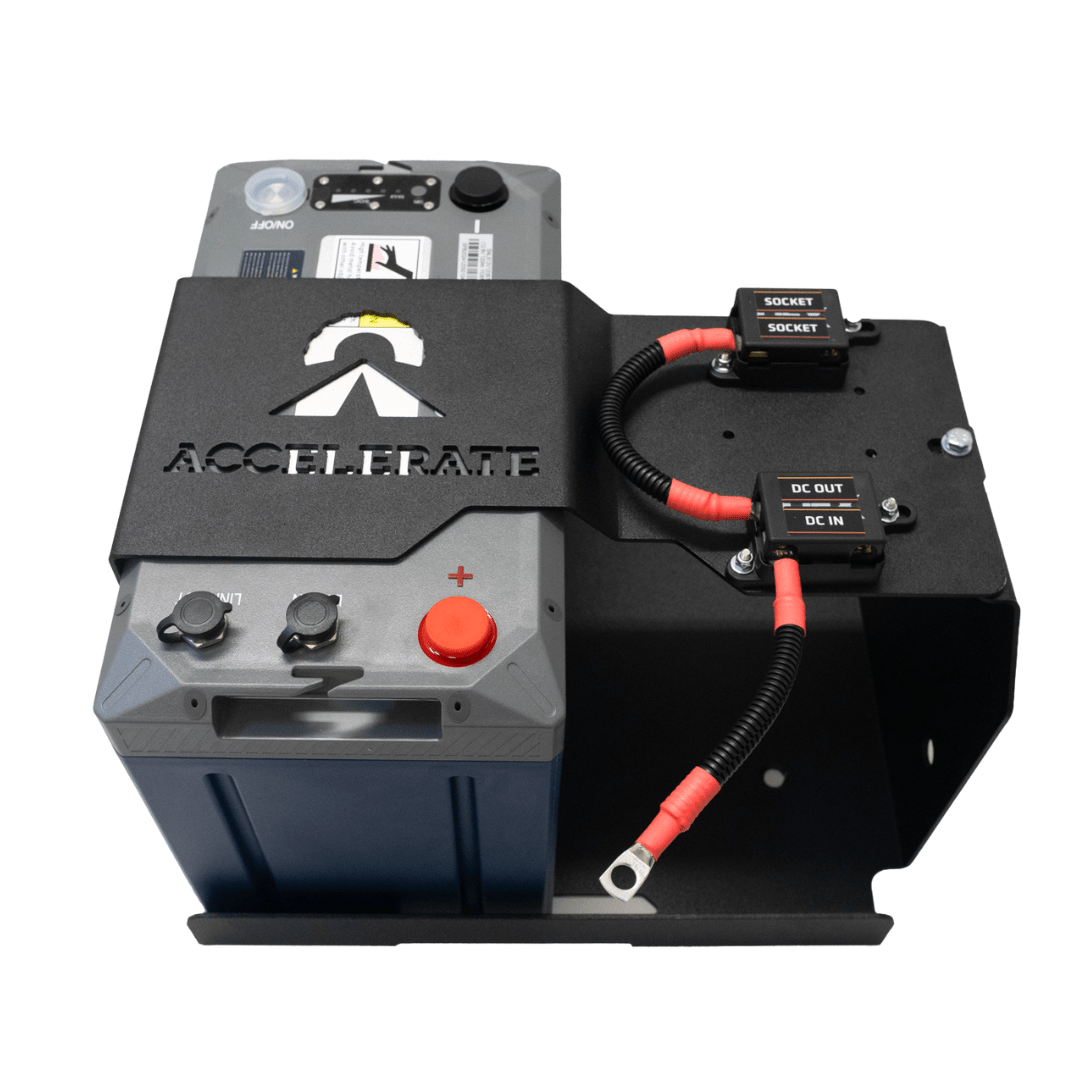

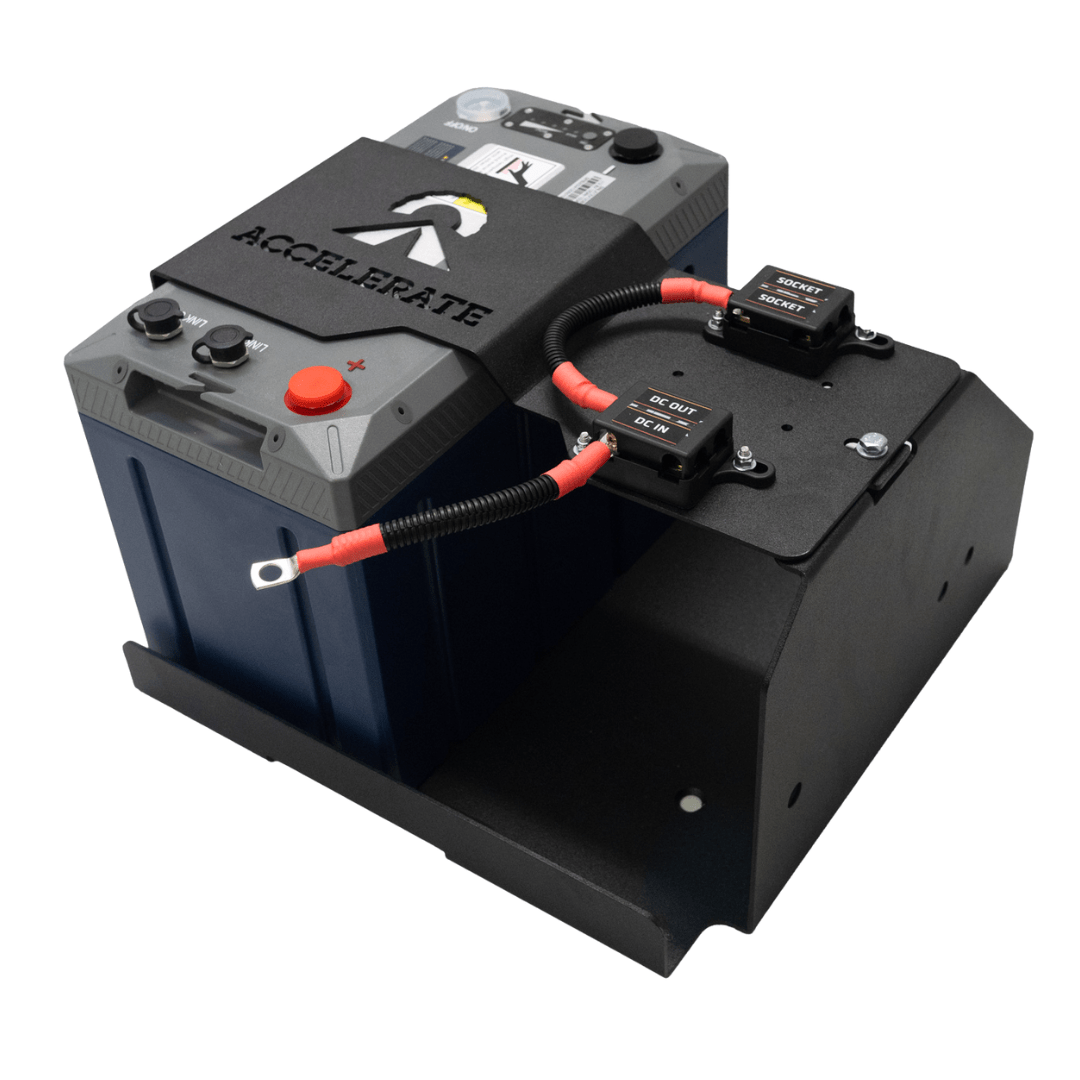

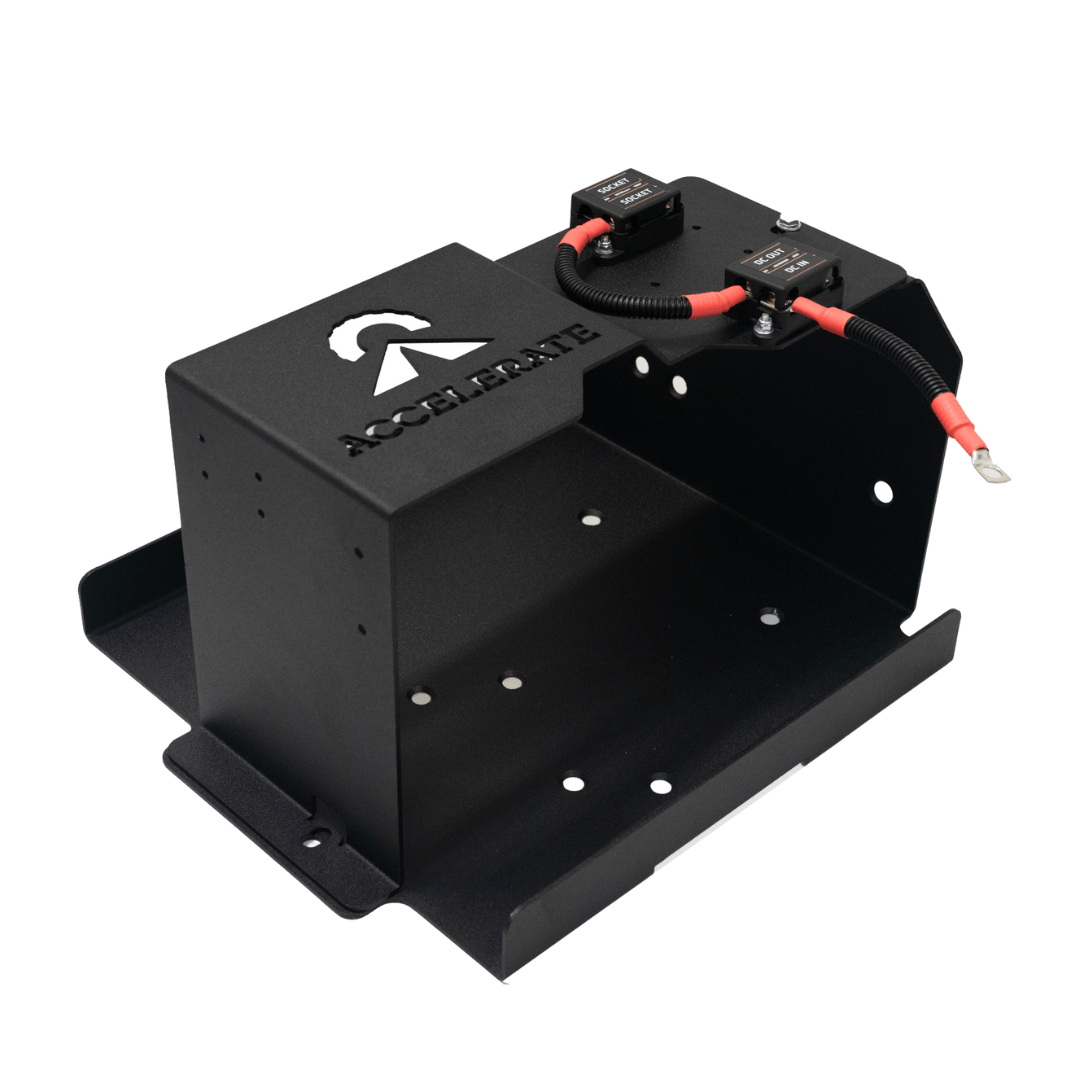

• Custom laser-cut aluminium battery tray (under-bonnet installation)
• Custom laser-cut aluminium BCDC bracket

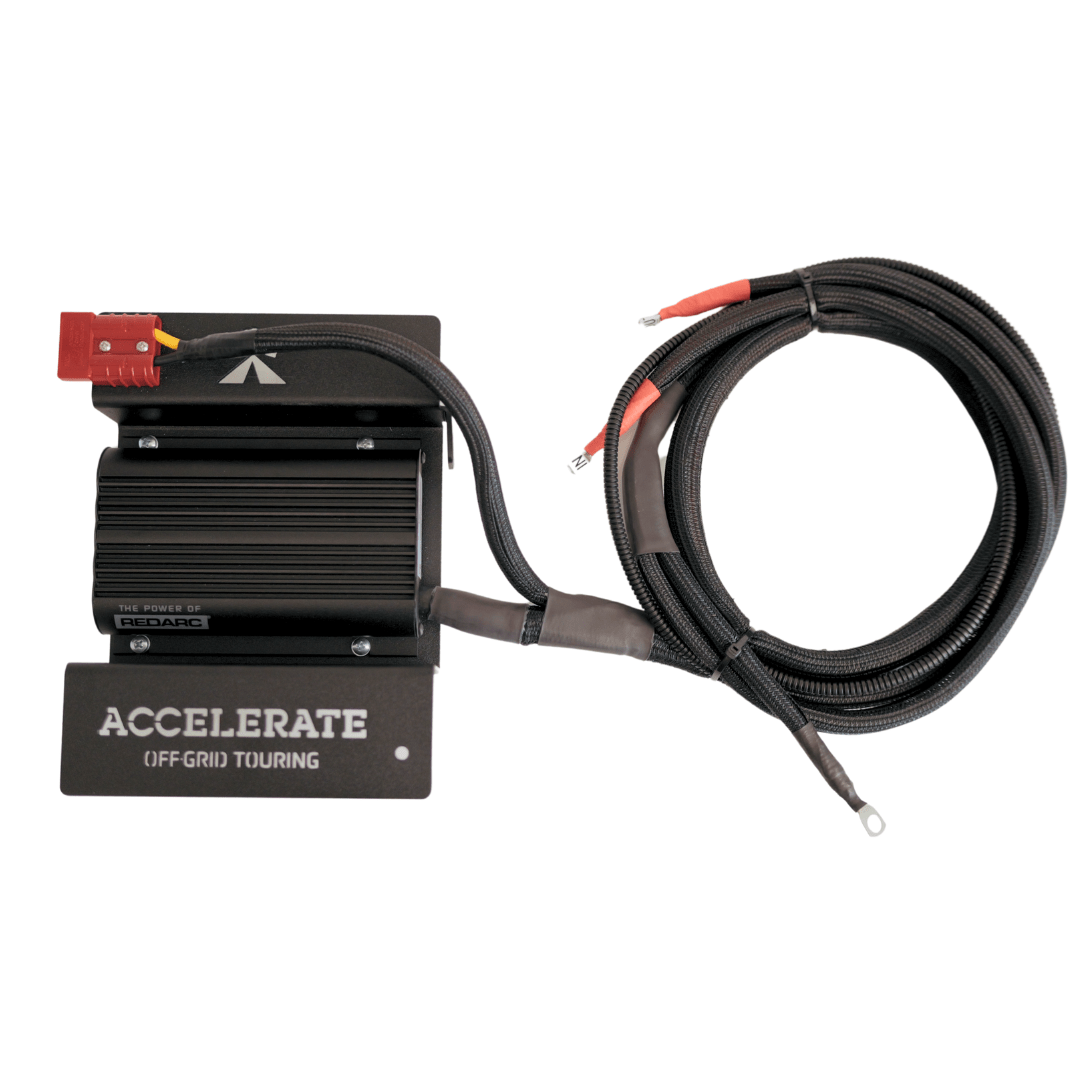

• REDARC Classic BCDC charger (25A or 40A – pre-mounted on BCDC Bracket)
• Choice of solar input (through grille or under bonnet)
• Invicta lithium battery (if selected)

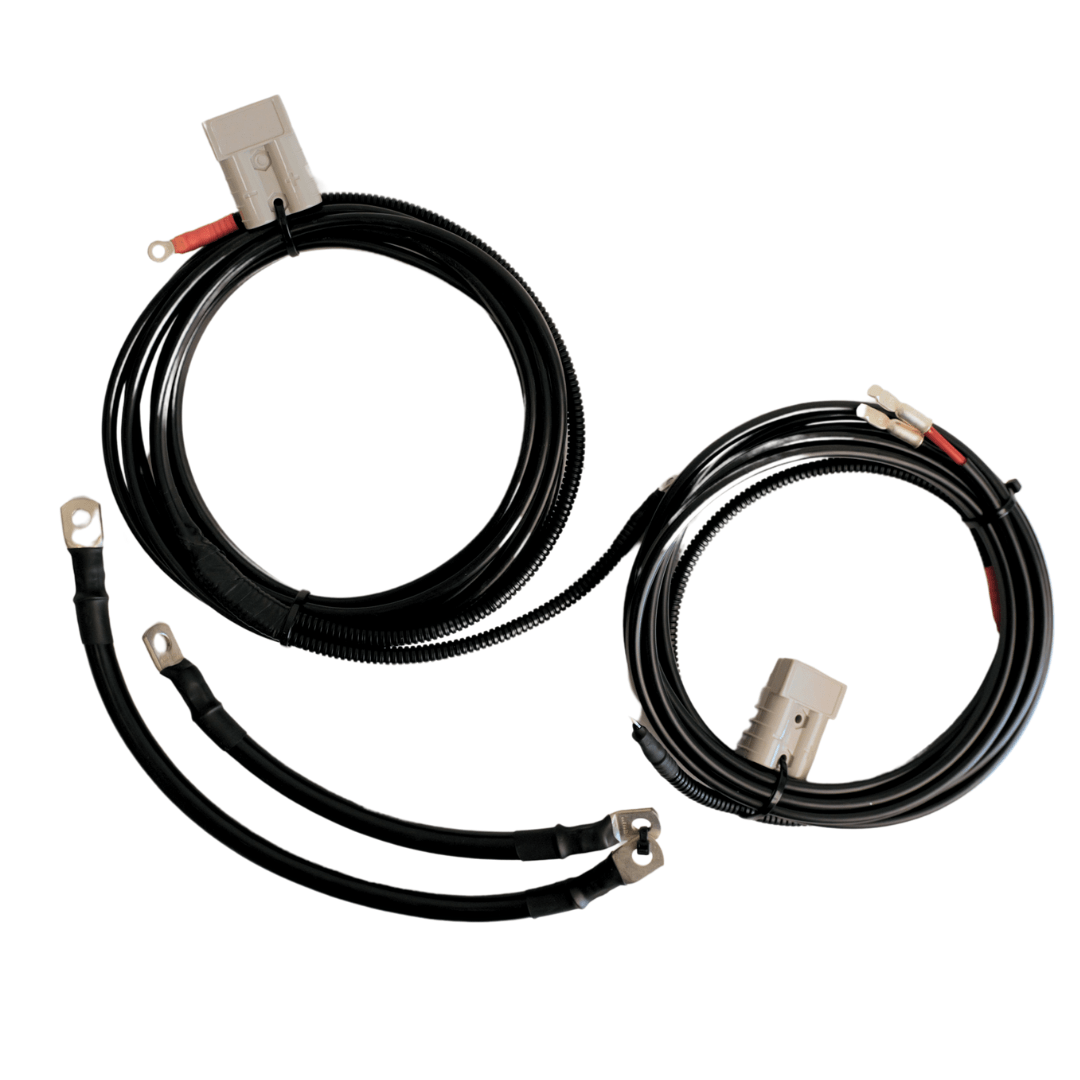

• Vehicle-specific charge harness pre-wired and pre-terminated
• Accelerate socket bank of your choice (rear cupholder mount)

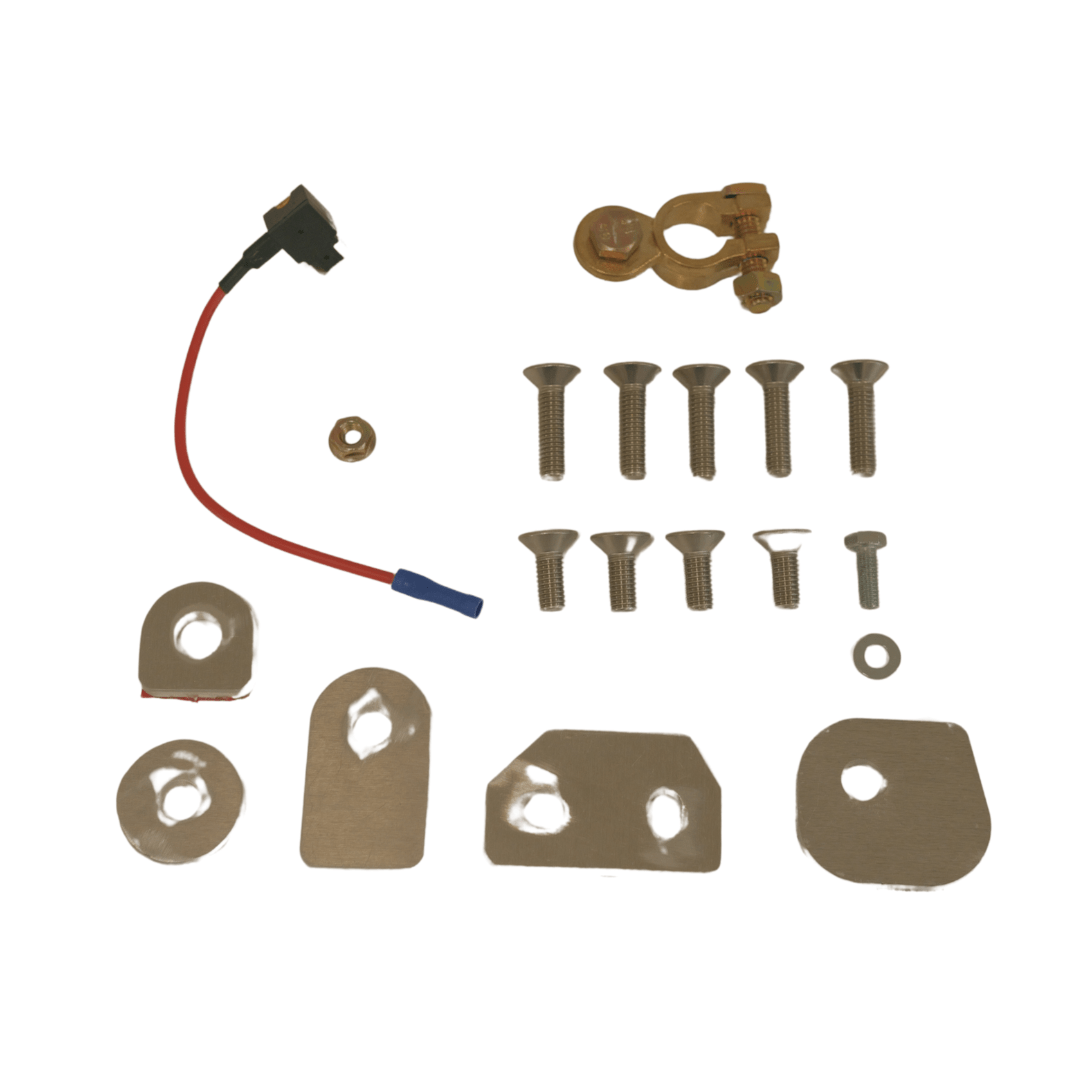

• All mounting hardware

Solar Input Options (Important for GR Sport Owners)
This system includes a RED Anderson solar input plug mounted on the front of the BCDC bracket for easy solar connection on standard 300 Series grilles.

If you have a GR Sport with the honeycomb grille, the front-mounted solar plug cannot be used due to grille clearance issues.
Instead, we will supply a dedicated under-bonnet solar mounting bracket so you can still run portable solar panels safely and cleanly.

Battery Options

No Battery – Internal battery space allows you to supply and install your own battery.

Internal Battery Space – Sized to suit batteries up to approx. 308mm (L) x 168mm (W) x 220mm (H)

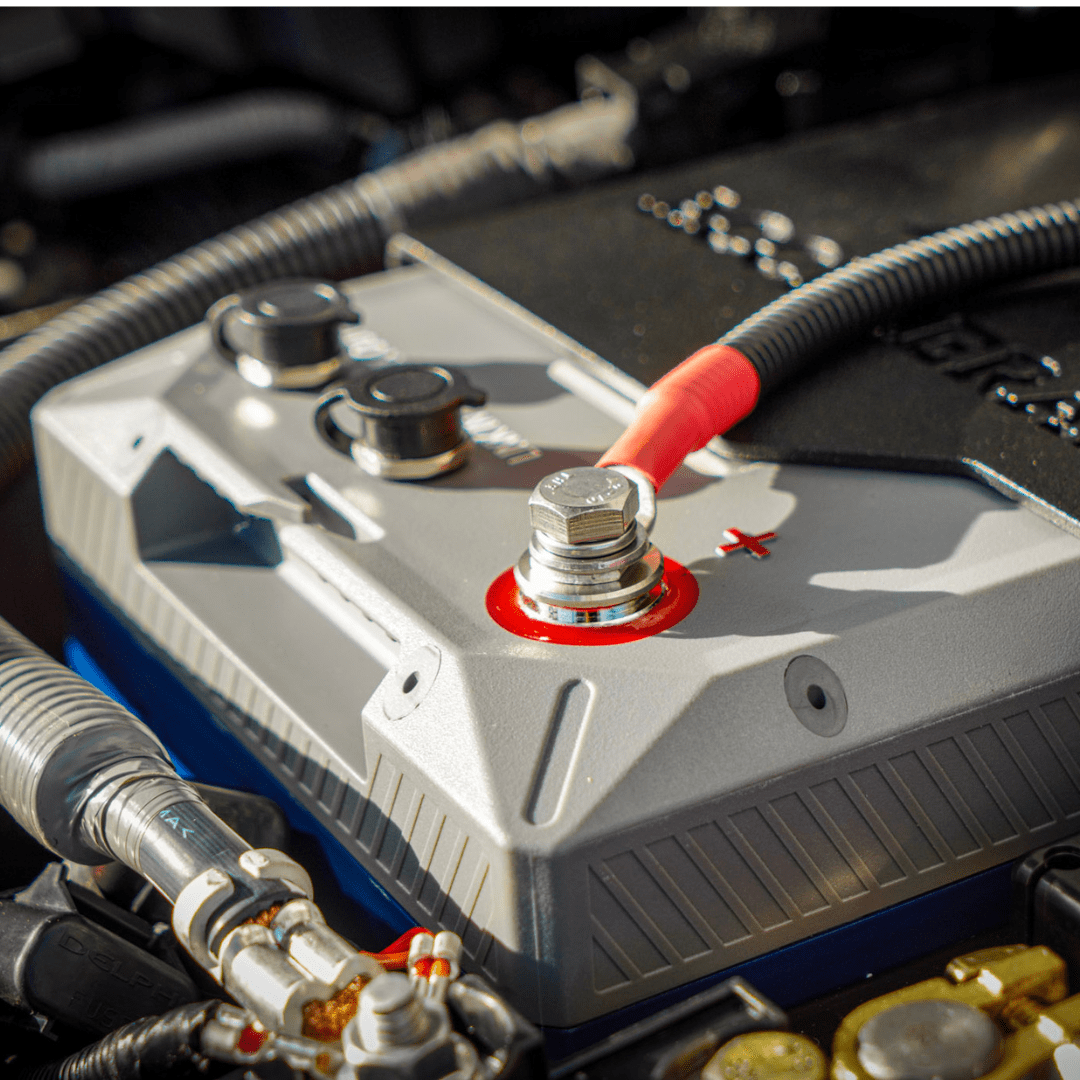

Invicta Xero 100Ah (SNLX12V100BT) – High-performance lithium battery with advanced BMS, Bluetooth monitoring and rugged IP67 design, backed by a 3-year under bonnet warranty.

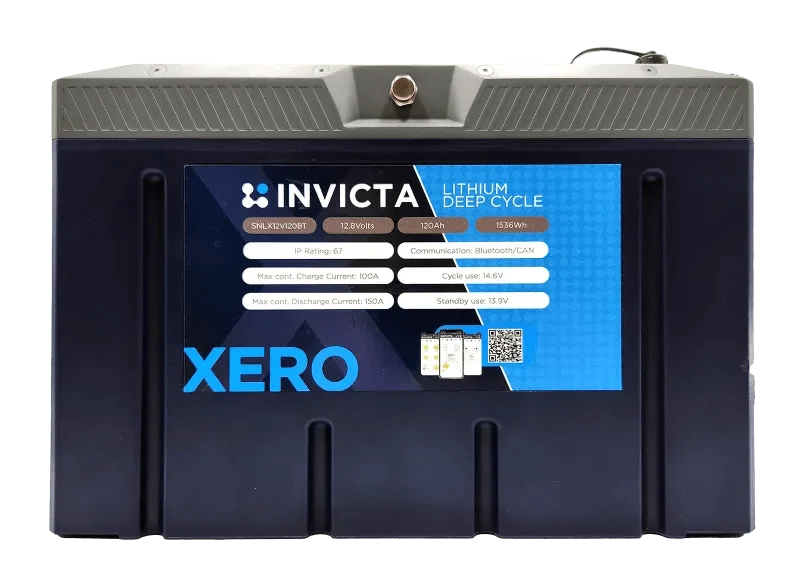

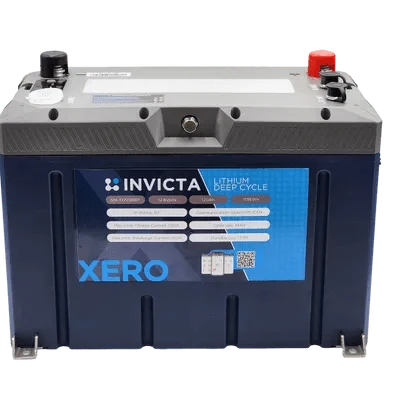

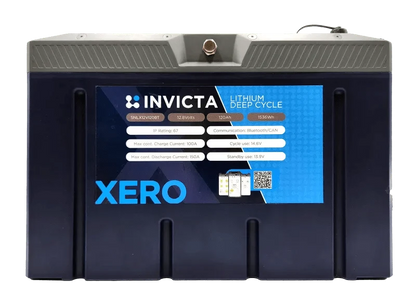

Invicta Xero 120Ah (SNLX12V120BT) – Increased capacity lithium battery ideal for higher power demands, featuring advanced BMS, CAN bus communication and Bluetooth monitoring, also backed by a 3-year under bonnet warranty.

Invicta Xero Range Benefits:

• High performance BMS – Supports up to 500A pulse and 150A continuous discharge

• Long cycle life – 3000+ cycles at 100% depth of discharge
• CAN bus communication – Direct integration with system components for accurate data
• Bluetooth monitoring – Easy access via the Invicta app
• IP67 rated design – Water and dust resistant for harsh environments
• Rugged internal construction – Reinforced casing and vibration-resistant design
• Advanced safety features – Built-in passive and active protections

Charger Options

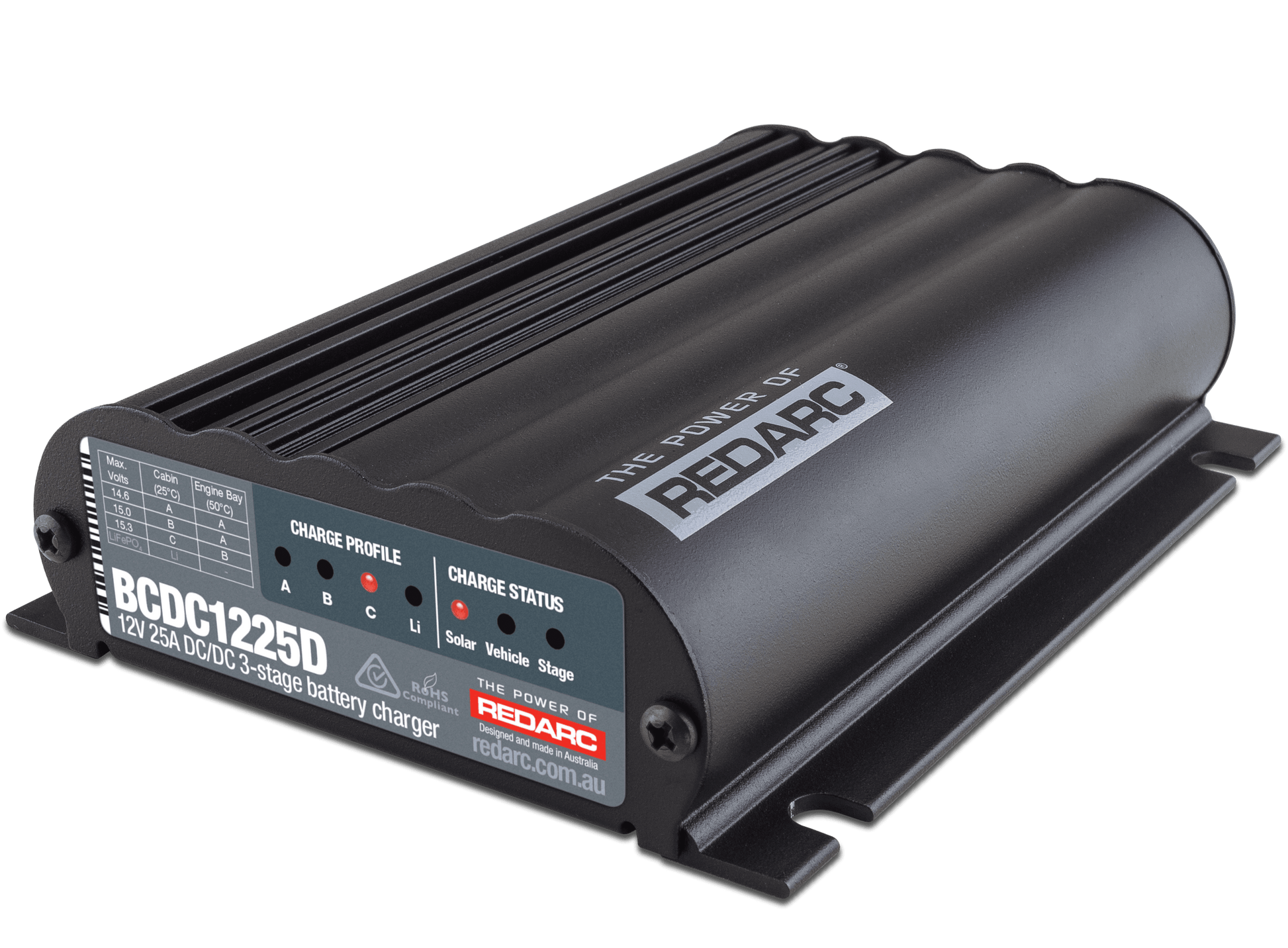

REDARC Classic 25A (BCDC1225D) – Reliable, entry-level DC-DC charger ideal for small-to-medium battery systems, featuring dual input charging (solar + alternator) and built-in MPPT for efficient off-grid performance.

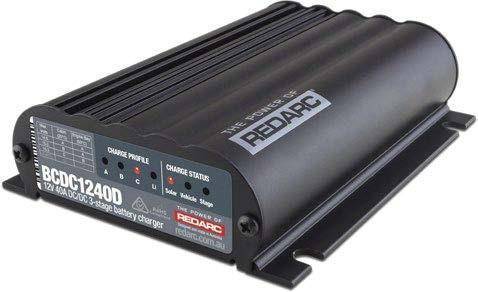

REDARC Classic 40A (BCDC1240D) – Higher output DC-DC charger suited for larger battery banks and higher power demands, delivering faster charge times while maintaining proven durability in harsh conditions.

Classic Series Benefits:

• Dual input charging – Charges from solar and alternator simultaneously

• Green Power Priority™ – Prioritises solar input to reduce alternator load

• Built-in MPPT regulator – Maximises solar efficiency and energy harvest

• Multi-battery compatibility – Supports AGM, GEL, Lead Acid, Calcium & Lithium (LiFePO4)

• Smart alternator compatible – Works with both standard and variable voltage alternators

• Proven charging profiles – Optimised charging to maximise battery life

• Under-bonnet ready – Designed to handle heat, vibration, water and dust

• Australian tested – Engineered for extreme conditions up to 80°C

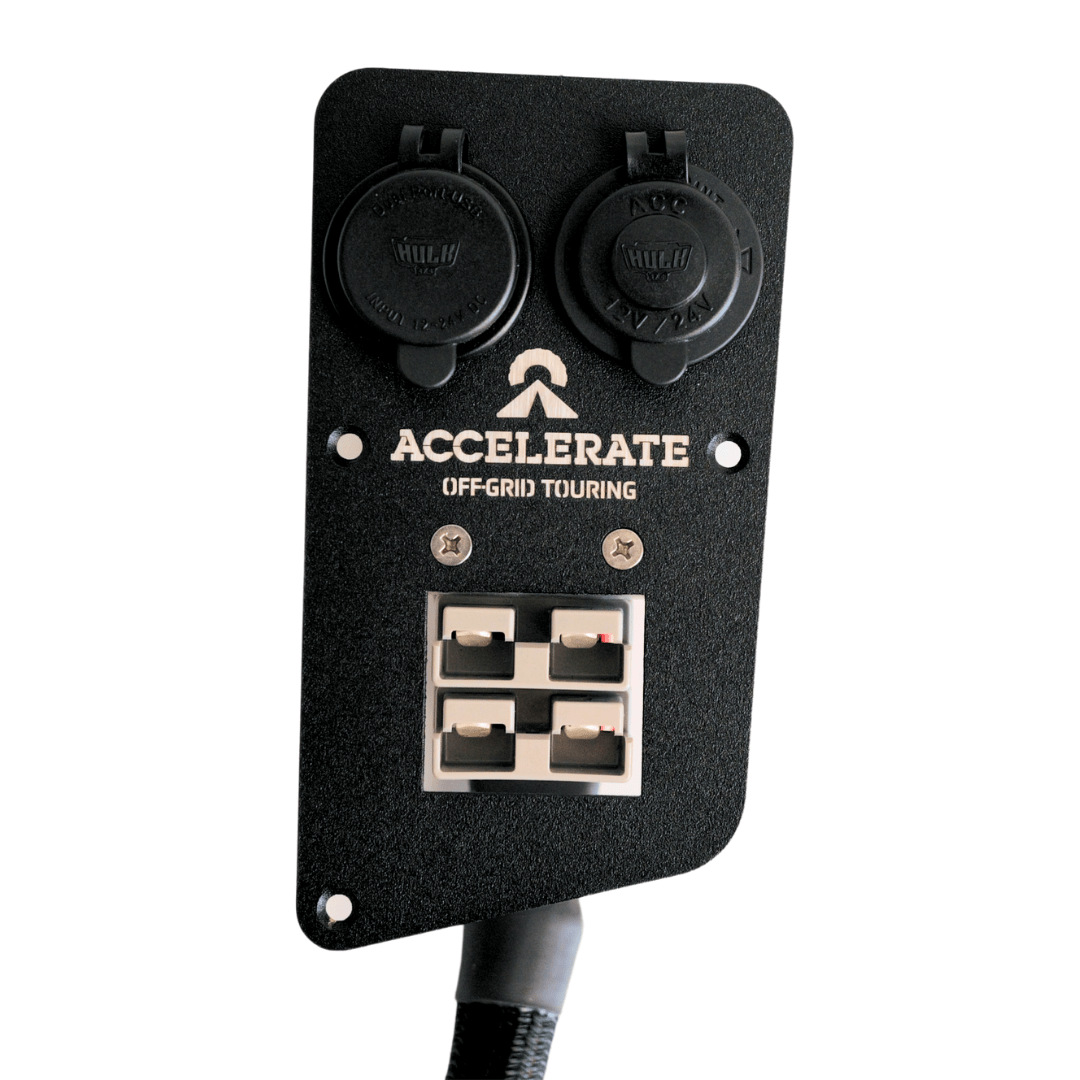

Socket Bank Options

Passenger-Side Socket Banks (Included Option)

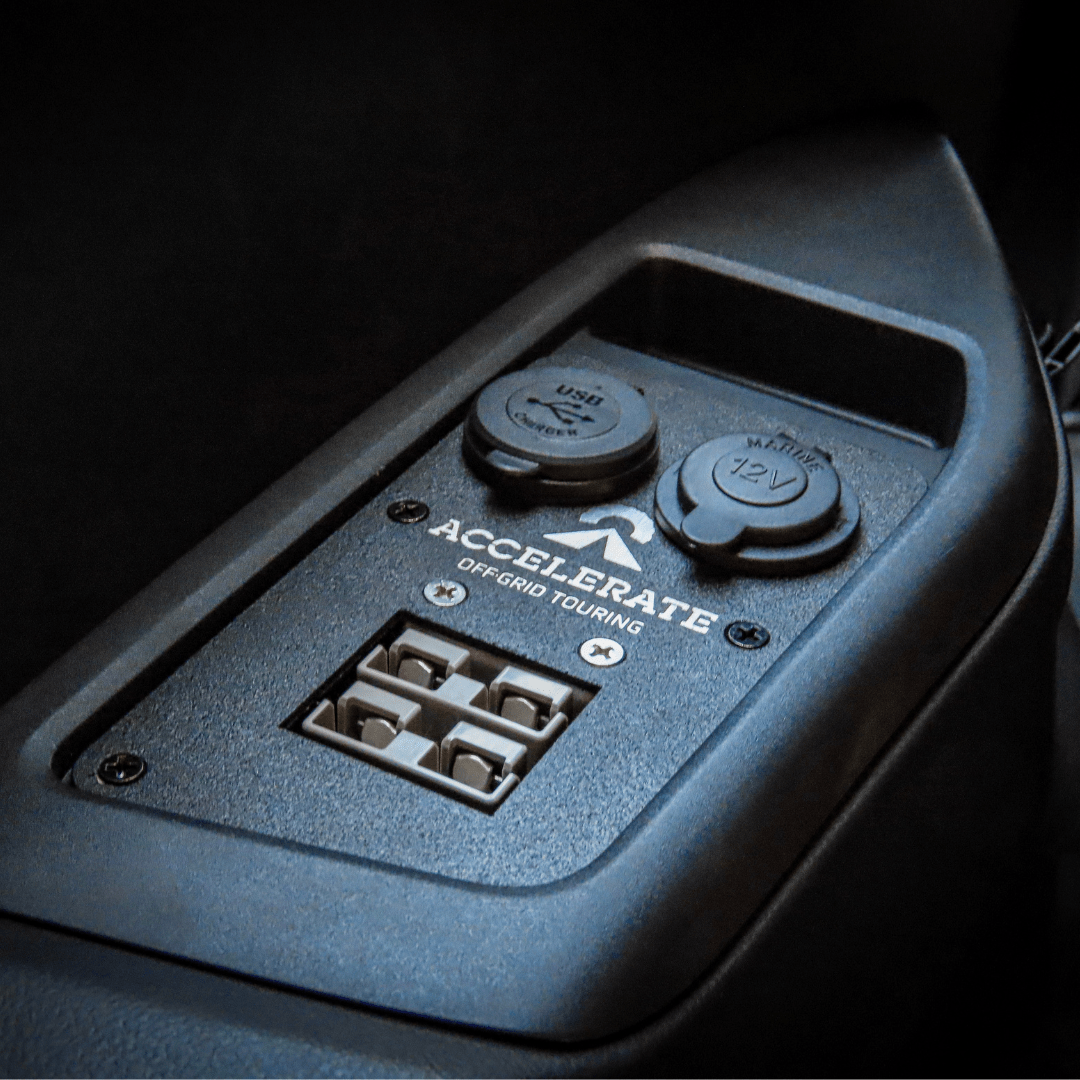

Socket Bank 1

• 1 x USB A/C
• 1 x 12V socket
• 2 x Grey Anderson outputs

Socket Bank 2

• 2 x Dual USB A/C
• 2 x Grey Anderson outputs

Socket Bank 3

• 1 x USB A/C
• 1 x Engel fridge plug
• 2 x Grey Anderson outputs

Note: Socket banks are supplied for passenger-side installation only. If you require a driver-side socket, please purchase the Driver-Side Add-On Socket with Y-Lead Bundle.

Specifications

• Tray Dimensions: 375mm (L) x 325mm (W) x 215mm (H)

• Internal Battery Space: Sized to suit batteries up to approx. 308mm (L) x 168mm (W) x 220mm (H)

• Maximum Battery Compatibility: Designed around Invicta Xero lithium battery range

• System Voltage: 12V

• Mounting Location: Under bonnet

• Construction: Laser-cut aluminium

• Finish: Matte black powder-coated

• Vehicle Compatibility: Toyota LandCruiser 300 Series
