Dual Battery – 79 Series Landcruiser – 200ah Behind Seat - With Jumpstart Feature

Toyota LandCruiser 79 Series Behind-Seat 200Ah Dual Battery Kit

Designed for maximum in-cab power without sacrificing usable space, the Toyota LandCruiser 79 Series Behind-Seat 200Ah Dual Battery Kit delivers a high-capacity, fully integrated power solution mounted neatly behind the rear seat. Engineered for serious touring setups, this system combines a super slim 200Ah lithium battery with REDARC’s advanced Alpha BCDC charger for reliable, intelligent power management.

With full plug-and-play wiring, start battery support, and optional socket expansion, this kit provides a clean, professional solution for running fridges, accessories, and off-grid systems directly from inside your cab.

Key Features

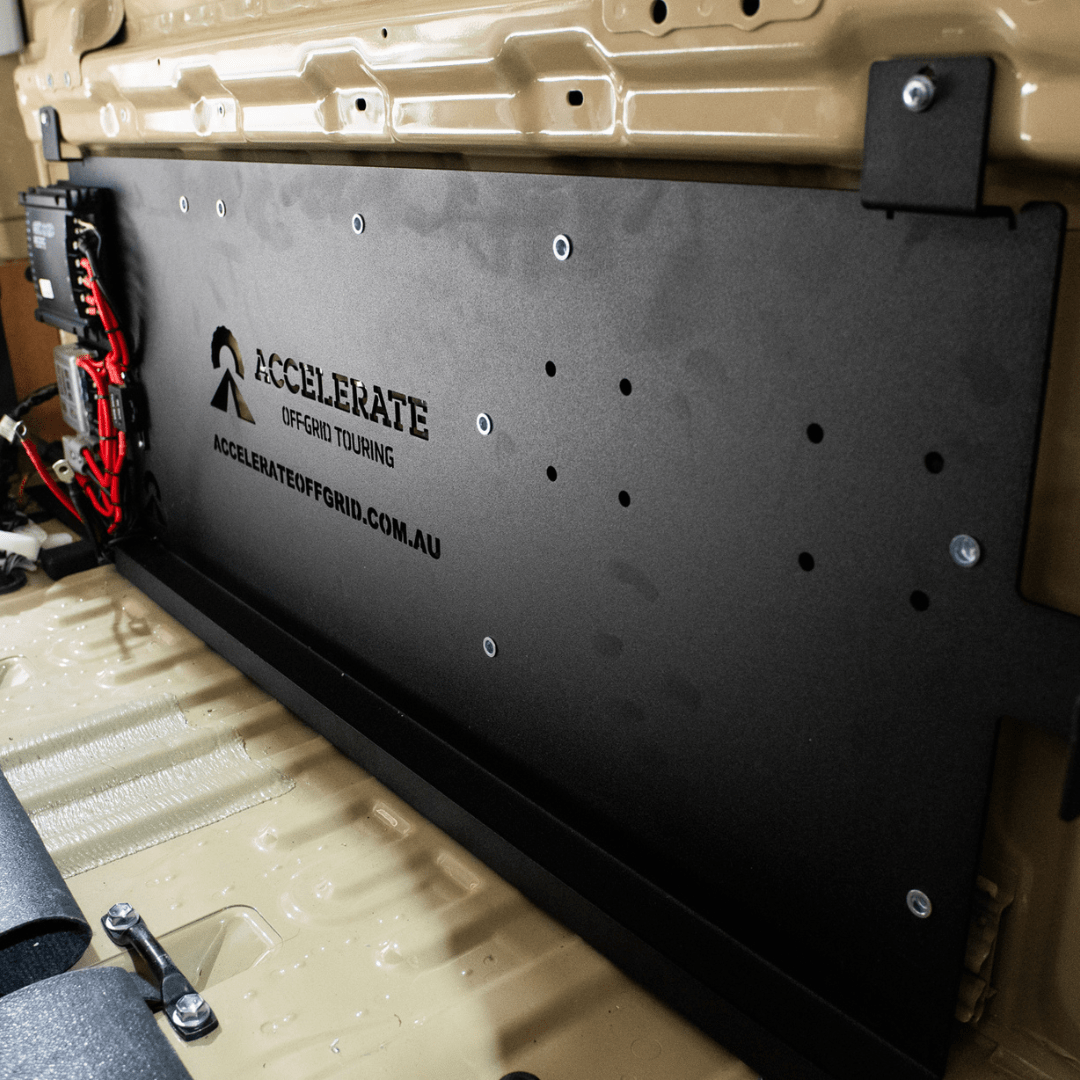

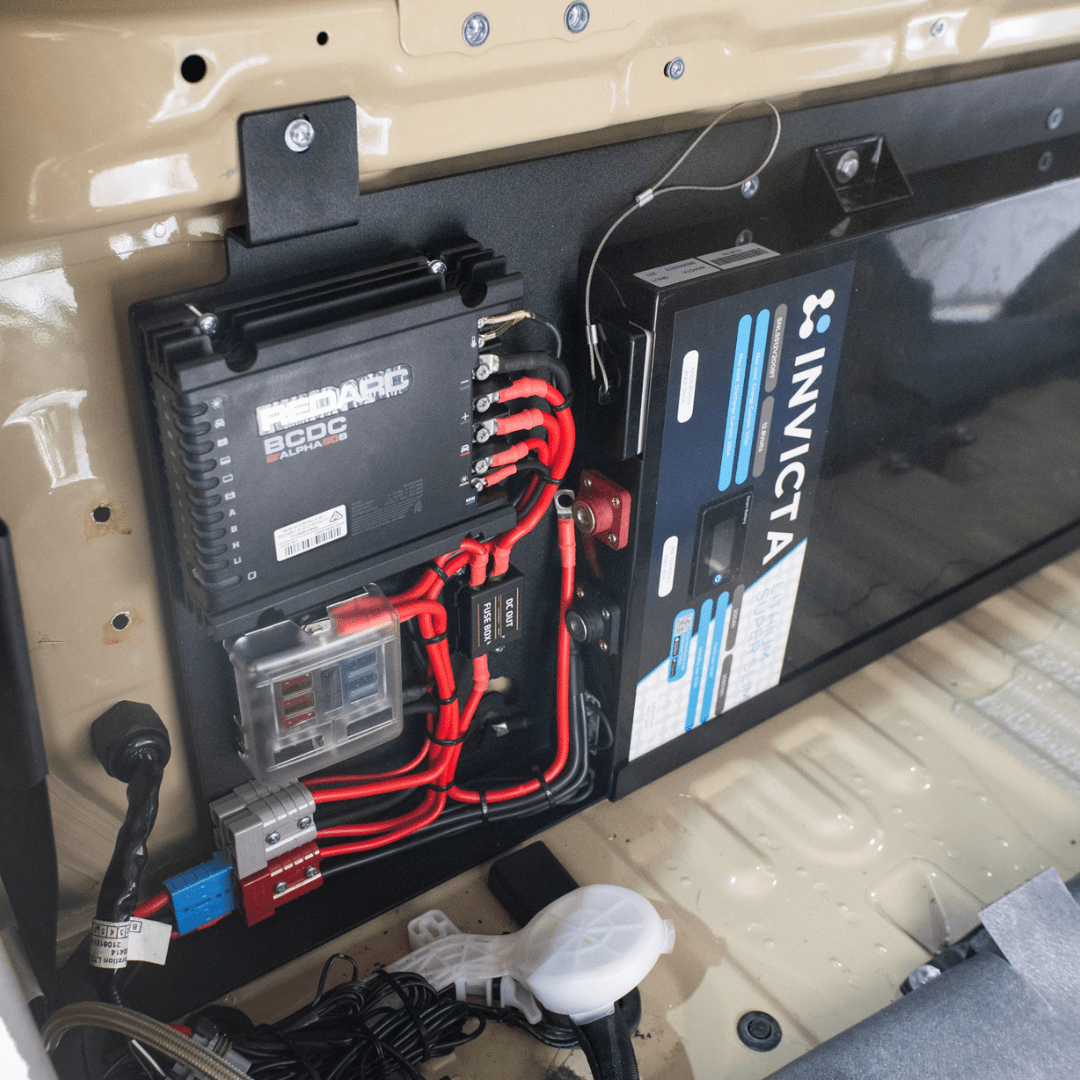

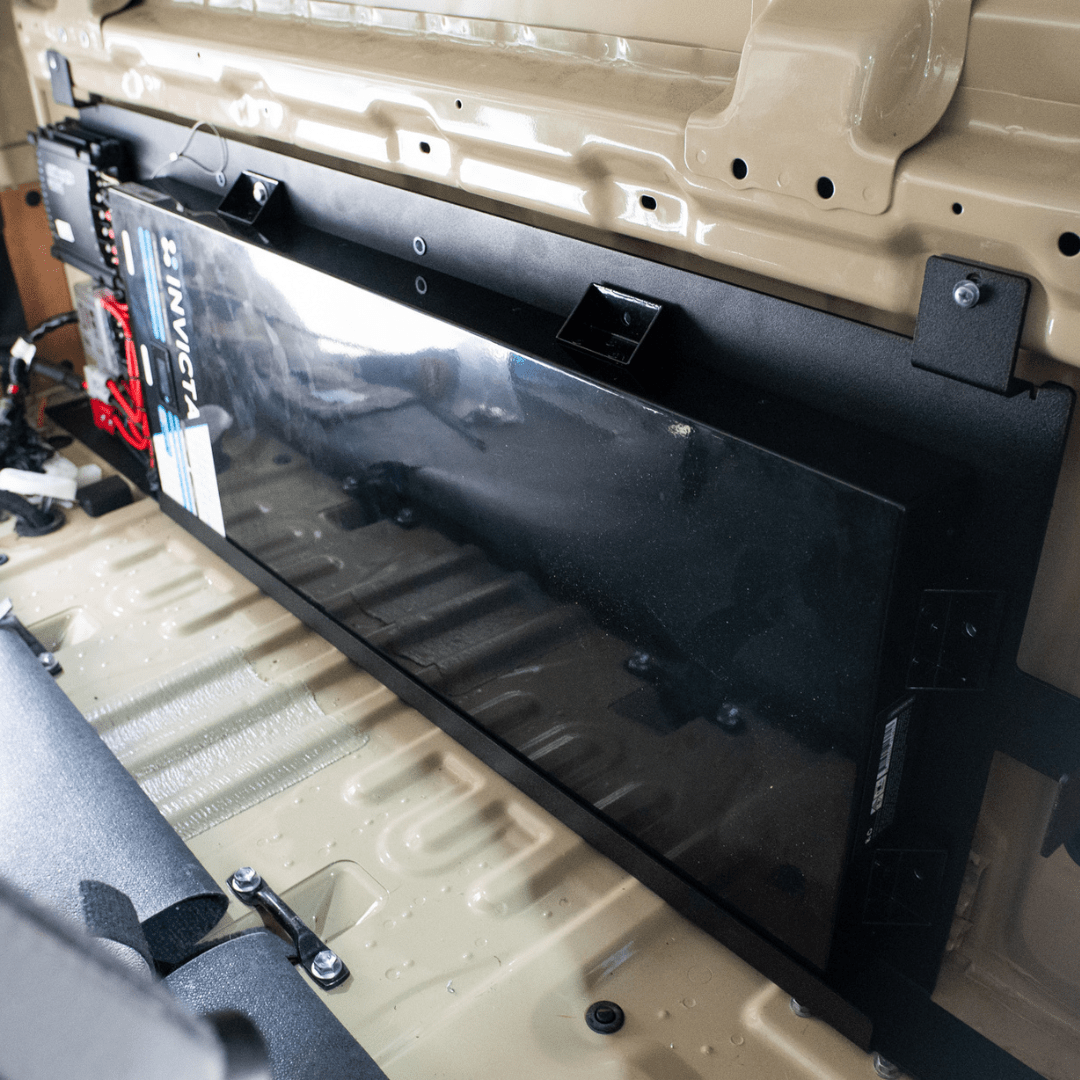

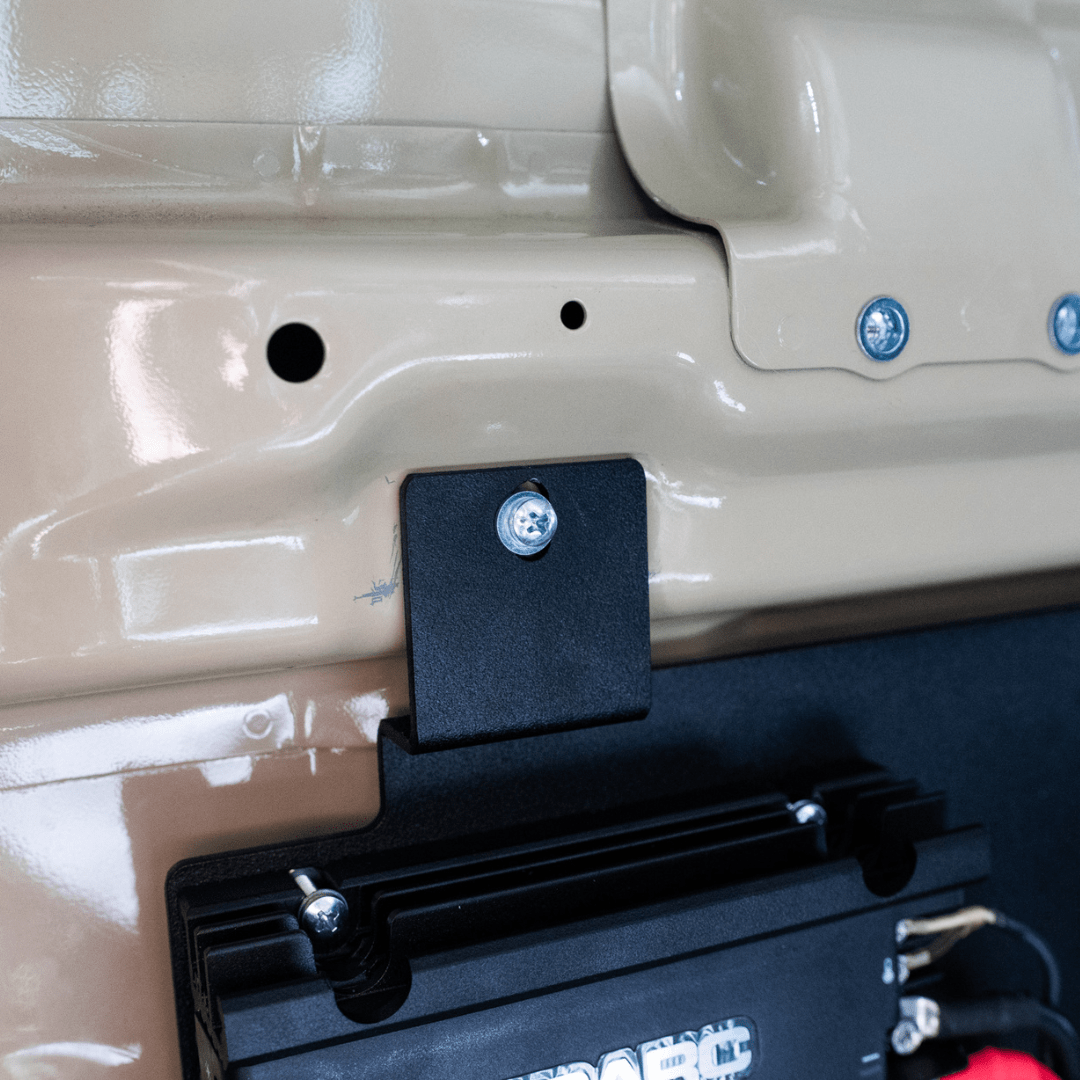

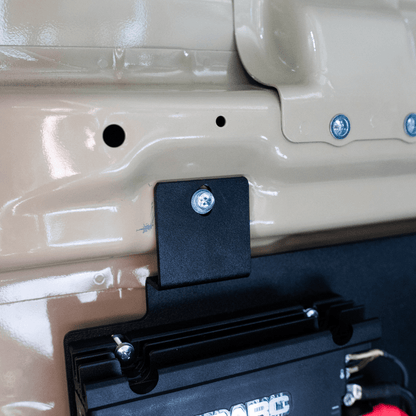

Behind-Seat Mounting – Installs neatly behind the rear seat on the driver’s side while retaining full tray and floor space

Vehicle-Specific Fitment – Designed to suit 79 Series Dual Cab models (pre and post-facelift)

Start Battery Charging – Recover a flat start battery with the push of a button in as little as 15 minutes, and utilise excess solar power to automatically maintain your start battery when the auxiliary battery is full

High-Capacity Power System – Supports a 200Ah super slim lithium battery for extended off-grid use

REDARC Alpha Charging – Advanced BCDC charger with Bluetooth monitoring and dual input (solar + alternator)

Plug-and-Play Integration – Pre-wired, fused and loomed system for a clean and simple install

Accessory Ready – Includes red & grey Anderson outputs and provisions for optional socket box

Durable Construction – Laser-cut aluminium tray with a matte black powder-coated finish

Designed & Built in Australia – Engineered and assembled on the Sunshine Coast by Accelerate Off-Grid Touring

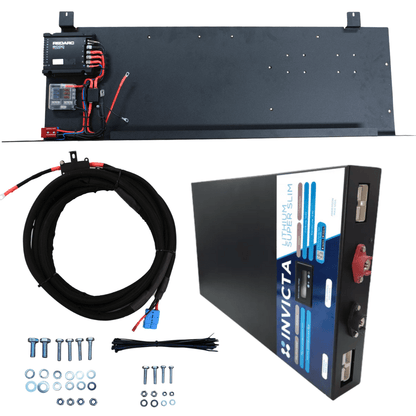

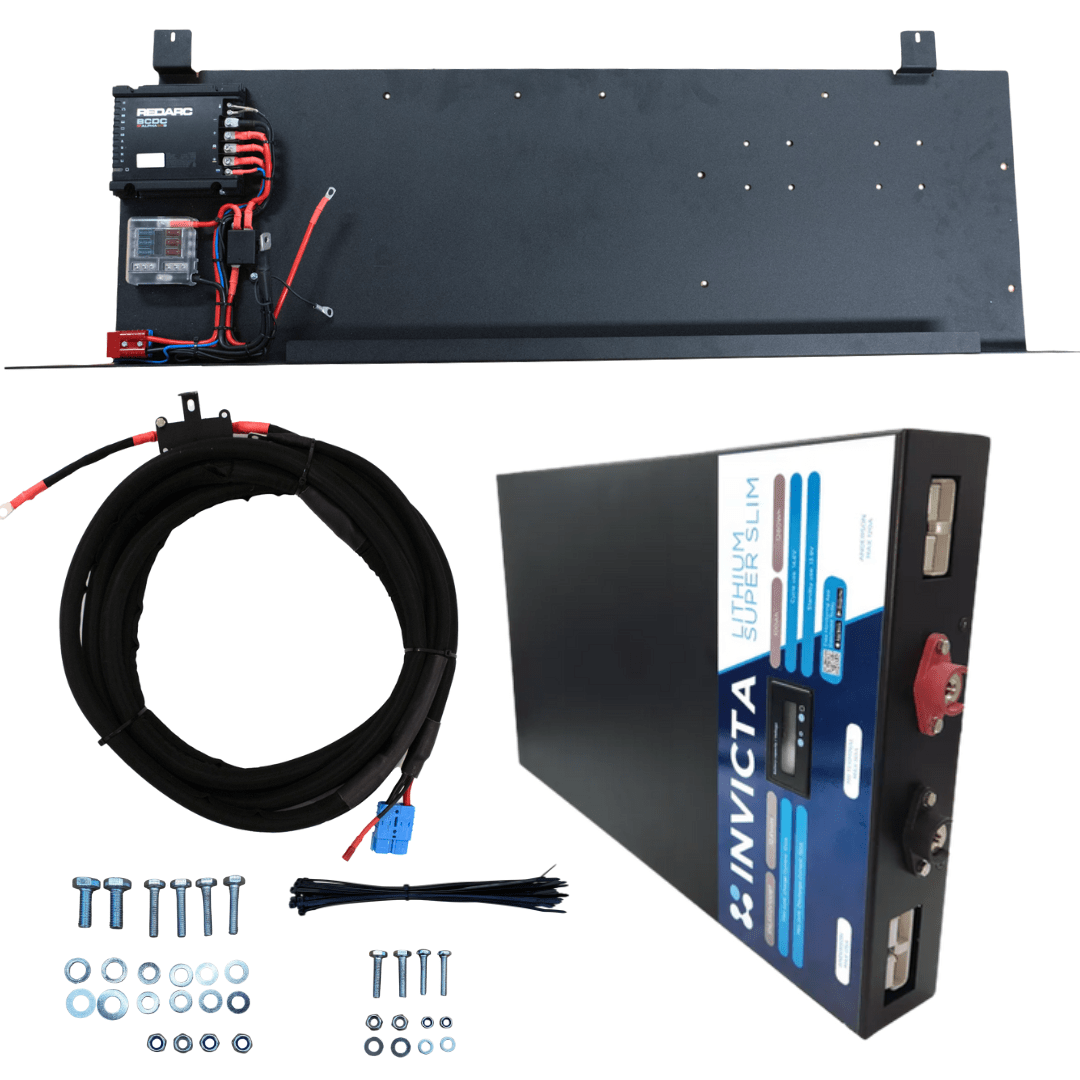

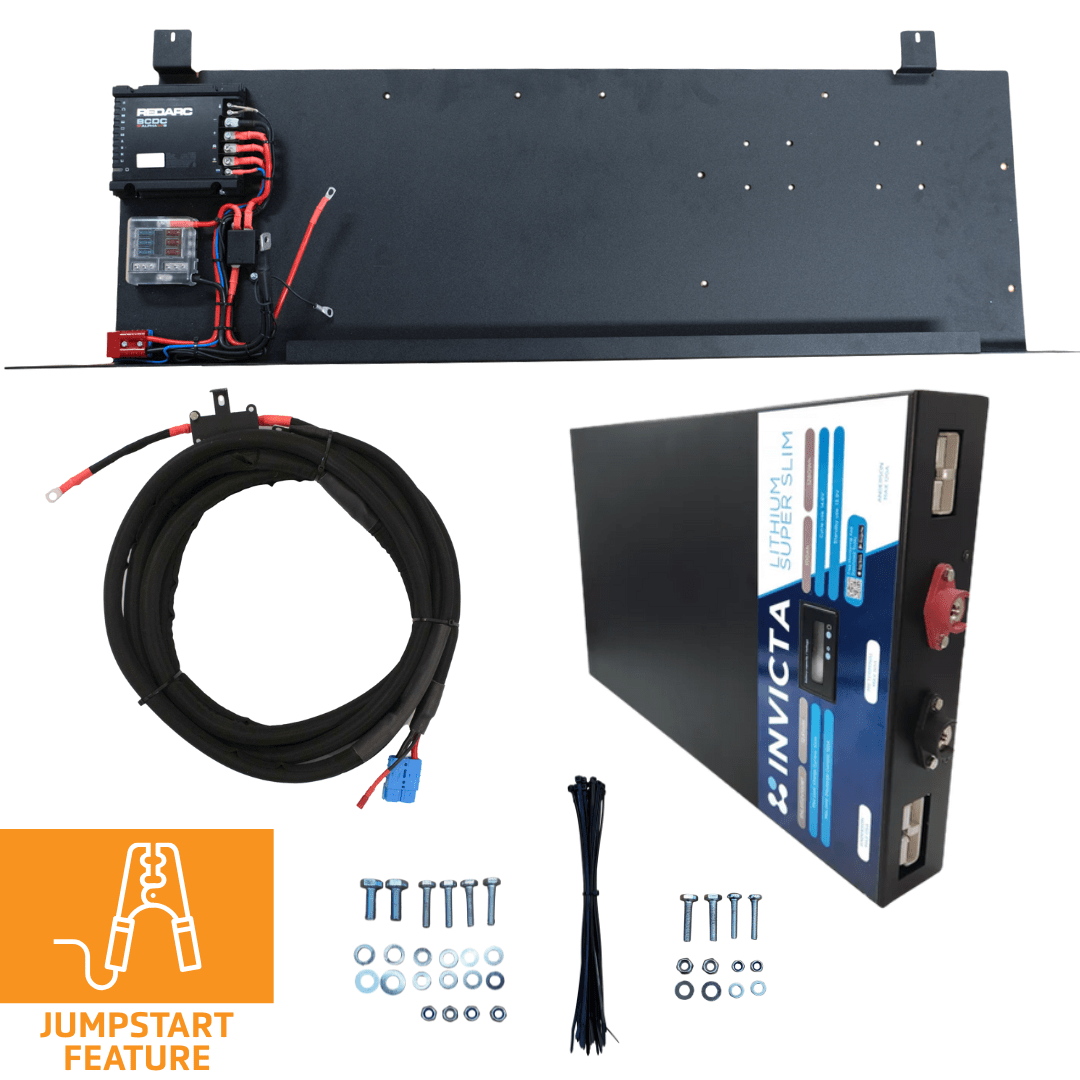

What’s Included

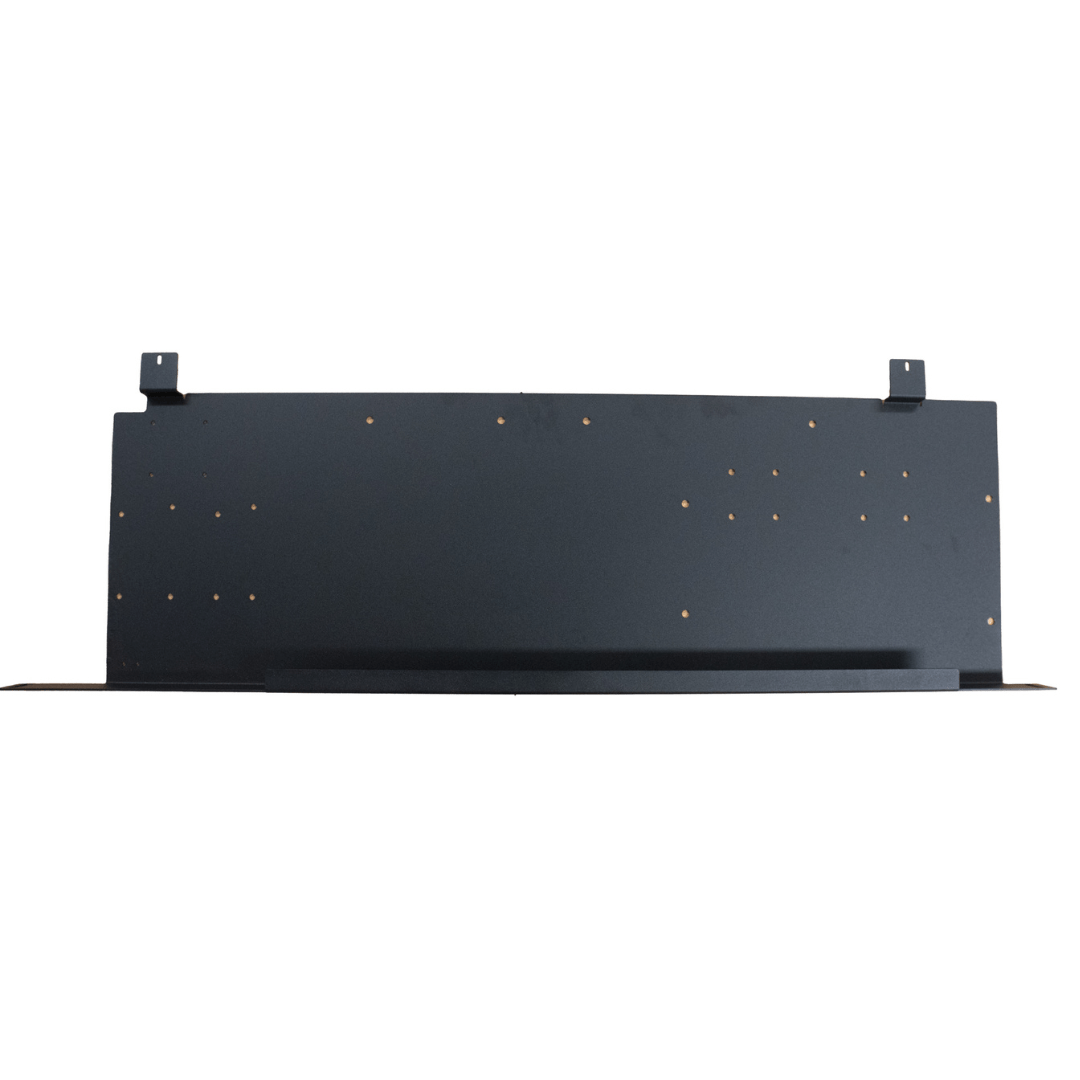

• Laser-cut aluminium tray - behind seat installation
• A super slim lithium battery (if selected)

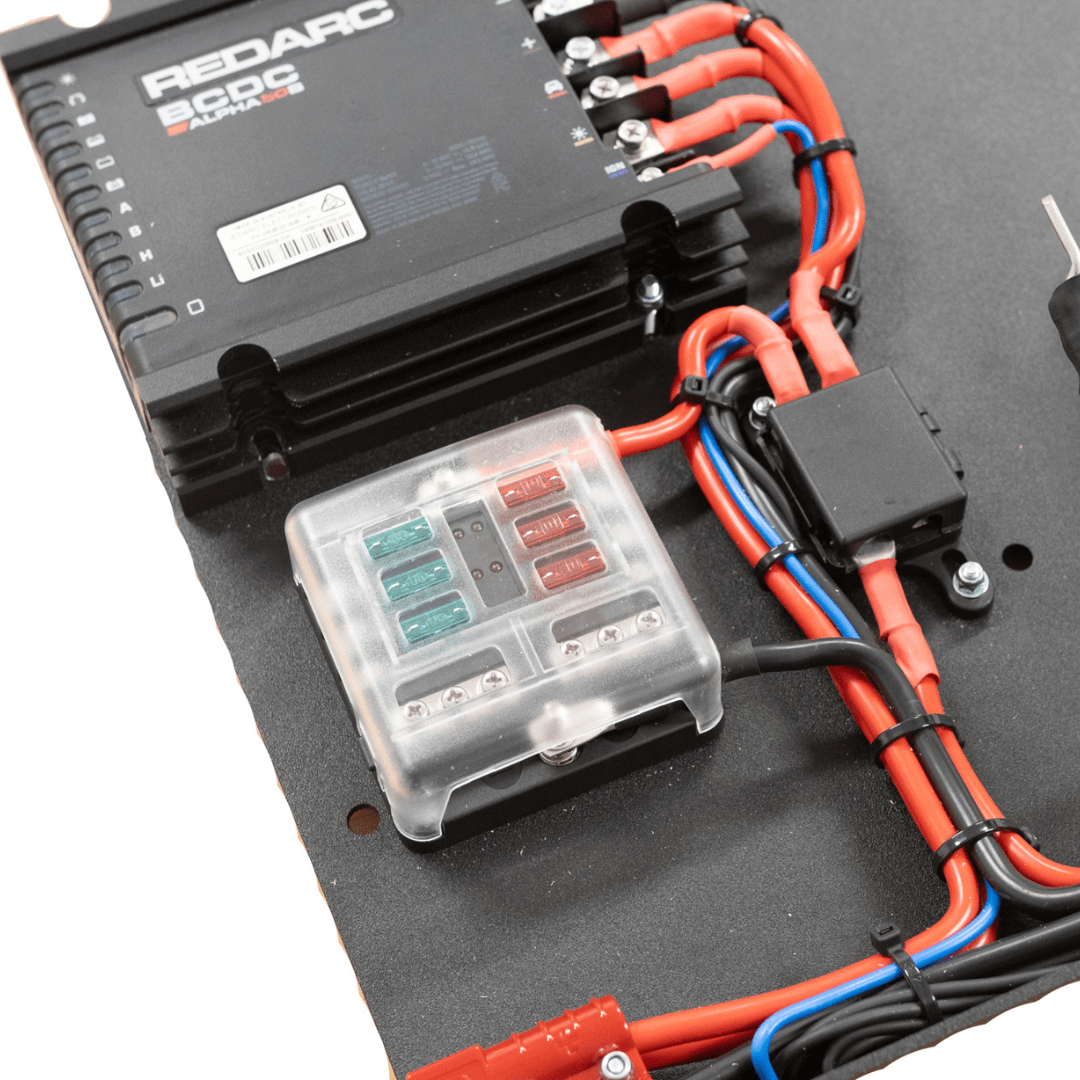

• REDARC Alpha BCDC charger – 25A or 50A (pre-mounted)

• All cabling – pre-wired, fused & loomed

• 6-way fuse box + MIDI fuse holder

• Red, grey & blue Anderson plugs

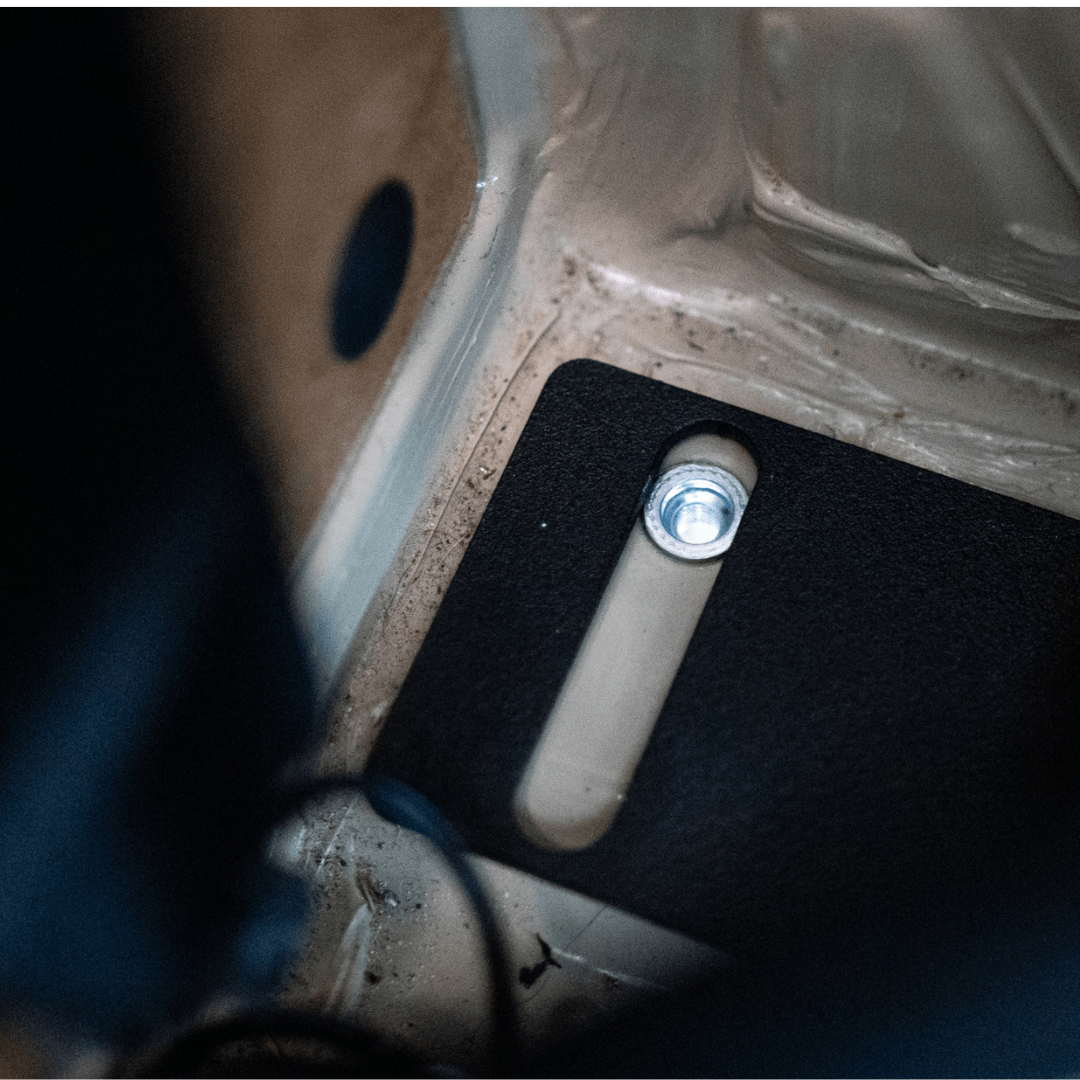

• All mounting hardware

Battery

No Battery

• Tray with BCDC Mounted
• Pre-wired and fused
• Mounting hardware


Note: Charger will be programmed for lithium unless otherwise requested.

Invicta 12V200AH Slimline with Bluetooth

• >2000 cycles at 100% DoD

• Bluetooth monitoring via Invicta app

• 250A continuous discharge

• Weighs only 26kg

• 5-year Australian warranty

Charger

REDARC Alpha 25A - Compact and cost-effective ideal for lighter setups or daily drivers

Includes full Alpha features:

• Jumpstart support via Bluetooth app

• Green Power Priority™

• Start battery maintenance

• Dual input – solar + alternator

• Fully sealed & heat resistant

• 2-year Australian warranty

REDARC Alpha 50A - Higher output for faster charging on larger setups

Includes all Alpha features:

• Jumpstart support via Bluetooth app

• Green Power Priority™

• Start battery maintenance

• Dual input – solar + alternator

• Adjustable alternator pull

• Fully sealed & heat resistant

• 2-year Australian warranty

Optional Socket Box Add-On

Universal Socket Box with Harness

• 2 x Grey Anderson outputs

• 1 x Dual USB A/C

• 1 x 12V socket

• 1 x Engel fridge plug

Universal Socket Box with Solar Input with Harness

• 1 x Grey Anderson output

• 1 x Red Anderson solar input

• 1 x Dual USB A/C

• 1 x 12V socket

• 1 x Engel fridge plug

Specifications

• Tray Dimensions: 1375mm (L) x 450mm (H) x 70mm (W)

• Internal Battery Space: Sized to suit super slim batteries up to approx. 1000mm (L) x 70mm (W) x 300mm (H)

• Maximum Battery Compatibility: Designed specifically around 200Ah slimline lithium batteries (e.g. Invicta Slimline range)

• Construction: Laser-cut aluminium

• Finish: Matte black powder-coated

• Mounting Location: Behind rear seat (driver’s side)

• Vehicle Compatibility: Toyota LandCruiser 79 Series (Pre-Facelift Single Cab & Dual Cab, and Facelift Dual Cab Only) – Not compatible with Facelift Single Cab models
