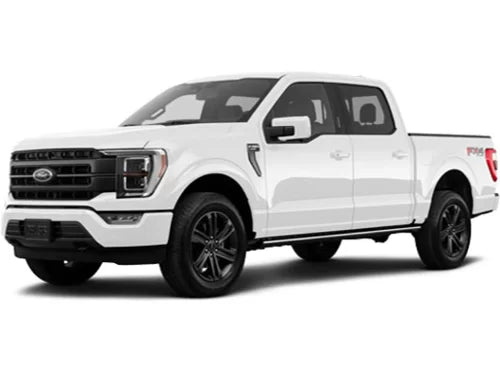

Dobinsons Ford F-150 GVM Upgrade

The Ford F-150 GVM Upgrade is a federally approved Dobinsons GVM upgrade for the Ford F-150, increasing your legal carrying capacity to 3950kg. Dobinsons GVM upgrades are approved Australia-wide and supplied with full compliance documentation.

Price includes professional installation. The listed price is fully fitted -- Dobinsons components supplied and installed at our workshop, plus a state-based engineering surcharge applied at checkout. Select your shock type, and registration status (Pre Rego / Post Rego) to see the final fitted price.

Important Notes

• Now includes the 2024 Ford F-150 (New Model)
• Excludes Platinum Models

Shock Absorber Options

• IMS (Internal Monotube Strut) -- Dobinsons' monotube shock with internal floating piston for improved heat dissipation and consistent performance under load.
• MRR (Monotube Remote Reservoir) -- Dobinsons' 3-way adjustable monotube with remote reservoir. Independent adjustment for rebound, low-speed and high-speed compression -- the premium choice for demanding off-road and load-carrying applications.

Coil Spring Options

Coil spring rate is selected at the time of fitment based on your vehicle's load. Available options:

• 50 mm Lift - 0-70 kg
• 50 mm Lift - 80-130 kg (IMS Kit Only)

Leaf Spring Options

Leaf spring rate is selected at the time of fitment based on your vehicle's load. Available options:

• 30 mm Lift - 200-300 kg Constant Load (Touring option)
• 30 mm Lift - 500-700 kg Constant Load

Kit Contents

• 2 x Front Coil Springs
• 2 x Front Shock Absorbers
• 2 x Rear Leaf Springs
• 2 x Rear Shock Absorbers
• 2 x Rear Shackle Kit
• 1 x Rear Shackle Bush Kit
• 4 x Rear U-Bolt Kit
• 2 x Rear Shackle Pins

Federally Approved

Dobinsons GVM upgrades are federally approved and the revised GVM will be compliant Australia-wide. Engineering certification is included in the price; some additional state-based engineering charges may apply depending on registration jurisdiction.
