Isuzu D-Max / MU-X / Mazda BT-50 SuperPro Steering Knuckle Kit

PP-SUPA-PRO-KNKL

$2,637.00
$2,637.00
Tax included.

✅ Price includes professional supply & installation at our workshop — no hidden costs.

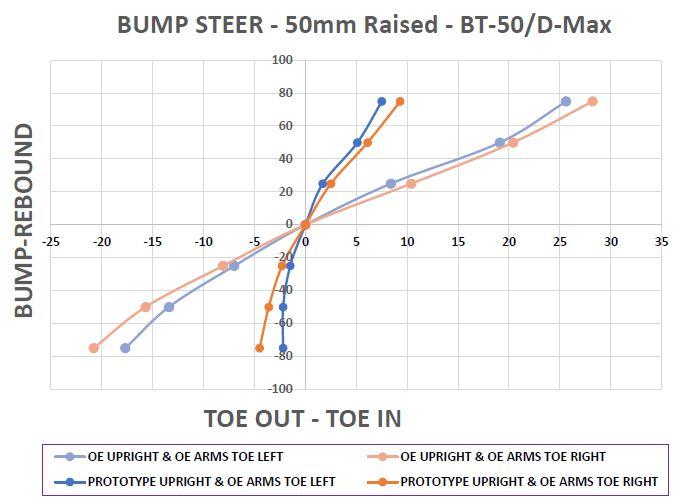

The SuperPro TRC6680 Steering Knuckle is the complete fix for bump steer on all 2019+ Isuzu D-Max, MU-X, and Mazda BT-50 models. Isuzu and Mazda's 2024 suspension update only addressed around 45% of the bump steer problem — the TRC6680 eliminates up to 95% of it by fixing the actual cause: raising the steering rack pickup point.

Why the TRC6680?

  • Fixes the root cause of bump steer — upper control arms alone cannot do this
  • Reduces tyre wear and improves road contact
  • Enhances driving stability, comfort, and safety
  • Suitable for standard and lifted vehicles
  • Direct OE-style fitment — no modifications required

What's Included

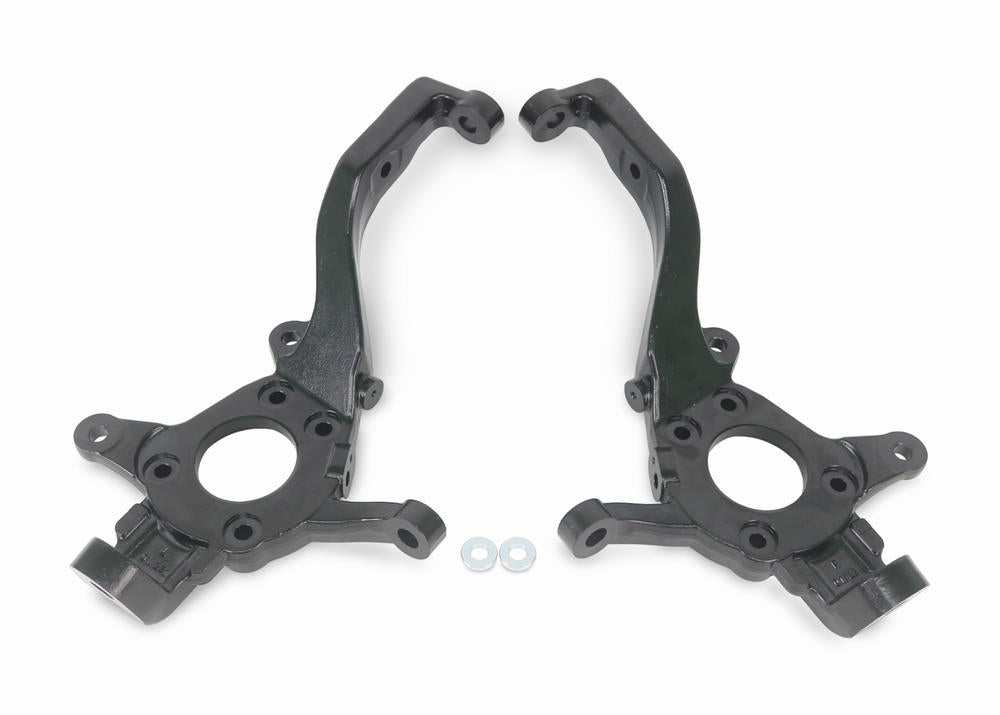

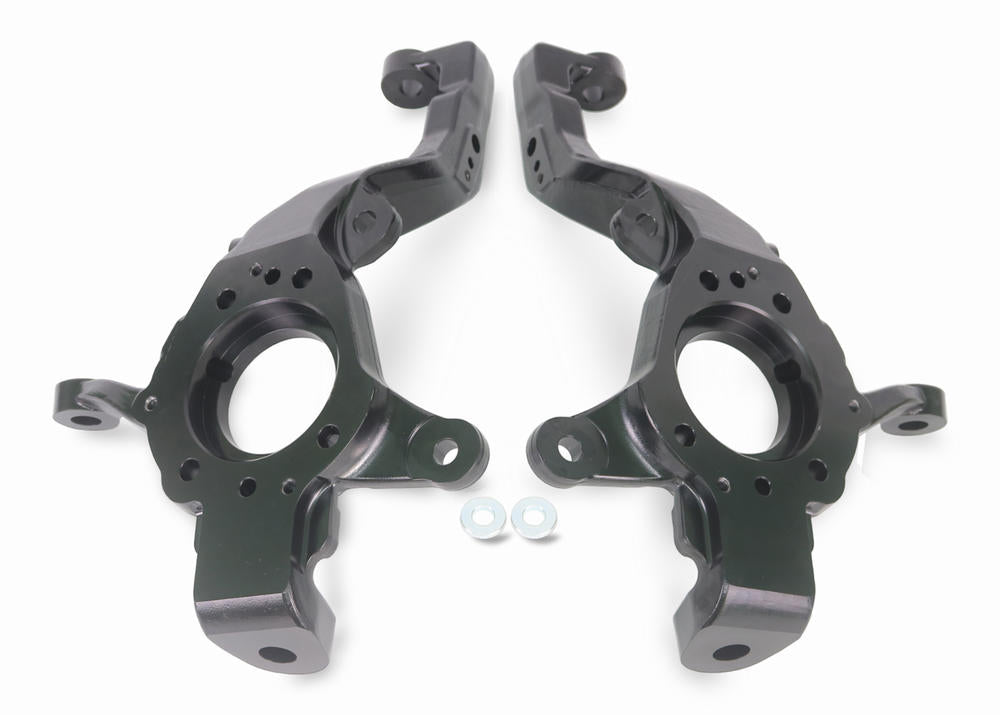

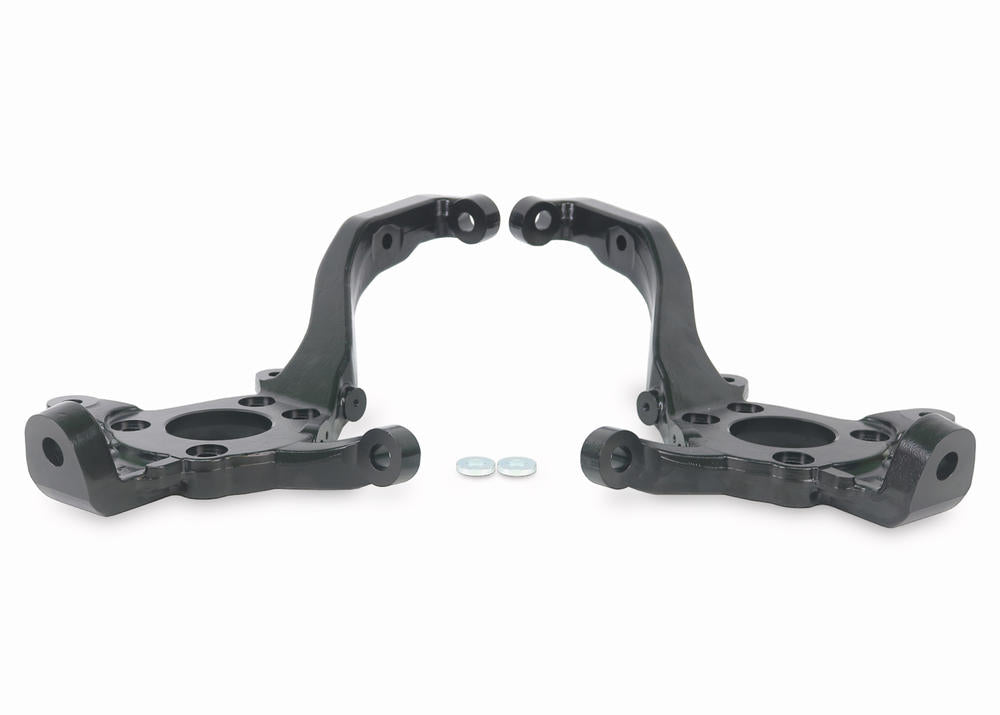

  • SuperPro TRC6680 Front Steering Knuckle Kit — Bump Steer Correction
  • Professional Installation at our workshop
  • Wheel Alignment

Construction & Compliance

  • Hot-forged 4140 AISI Steel, heat-treated and black e-coated
  • Tested to 1,650kg front axle loads using FEA analysis
  • VSB14 Approved — no engineer sign-off or mod plate required
  • ADR Compliant — meets OE design standard
  • Suitable for use with any GVM upgrade

Professionally Installed: $2,637.00

Vehicle Applications

Isuzu D-MAX (11/2021 - 12/on)

Make Model From To Body Generation Chassis Engine Variant Drivetrain
ISUZU D-MAX 07/2021 - Cab Chassis TFR, TFR, TFS, TFS, TFR, TFS (TFR85J), TFR, TFS (TFS85J) - RZ4F-TC | 2.2L | Diesel SX Automatic 4X2
ISUZU D-MAX 07/2021 - Cab Chassis TFR, TFR, TFS, TFS, TFR, TFS (TFR85J), TFR, TFS (TFS85J) - RZ4F-TC | 2.2L | Diesel SX Automatic 4X4
ISUZU D-MAX 07/2021 - Single Cab TFR, TFR, TFS, TFS, TFR, TFS (TFR85J), TFR, TFS (TFS85J) - RZ4F-TC | 2.2L | Diesel SX Automatic 4X2
ISUZU D-MAX 07/2021 - Ute TFR, TFR, TFS, TFS, TFR, TFS (TFR85J), TFR, TFS (TFS85J) - RZ4F-TC | 2.2L | Diesel SX Automatic 4X2
ISUZU D-MAX 07/2021 - Ute TFR, TFR, TFS, TFS, TFR, TFS (TFR85J), TFR, TFS (TFS85J) - RZ4F-TC | 2.2L | Diesel SX Automatic 4X4
ISUZU D-MAX 07/2021 - Ute TFR, TFR, TFS, TFS, TFR, TFS (TFR85J), TFR, TFS (TFS85J) - RZ4F-TC | 2.2L | Diesel X-RIDER Automatic 4X4
ISUZU D-MAX 11/2021 - Cab Chassis TFR TFR41J RZ4F-TC | 2.2L | Diesel DDI RWD
ISUZU D-MAX 11/2021 - Ute TFS TFS41J RZ4F-TC | 2.2L | Diesel DDi 4WD
ISUZU D-MAX 11/2021 - Ute TFR TFR41J RZ4F-TC | 2.2L | Diesel DDi RWD
ISUZU D-MAX 10/2021 - Cab Chassis TFR, TFS - RZ4E-TC | 1.9L | Diesel - RWD
ISUZU D-MAX 07/2021 - Cab Chassis - - 4JJ3-TCX | 3.0L | Diesel SX Automatic/Manual 4WD
ISUZU D-MAX 07/2021 - Cab Chassis - - 4JJ3-TCX | 3.0L | Diesel SX Automatic/Manual RWD
ISUZU D-MAX 07/2021 - Single Cab - - 4JJ3-TCX | 3.0L | Diesel SX Automatic/Manual 4WD
ISUZU D-MAX 07/2021 - Single Cab - - 4JJ3-TCX | 3.0L | Diesel SX Automatic/Manual RWD
ISUZU D-MAX 07/2021 - Ute TFS40 - 4JJ3-TCX | 3.0L | Diesel CRD Automatic/Manual 4WD
ISUZU D-MAX 07/2021 - Ute TFR40 - 4JJ3-TCX | 3.0L | Diesel LS-U, SX Automatic RWD
ISUZU D-MAX 07/2021 - Ute TFS40 - 4JJ3-TCX | 3.0L | Diesel LS-U, SX SPACECAB Automatic/Manual 4WD
ISUZU D-MAX 07/2021 - Ute TFS40 - 4JJ3-TCX | 3.0L | Diesel SX Automatic/Manual 4WD
ISUZU D-MAX 07/2021 - Ute TFS - 4JJ3-TCX | 3.0L | Diesel SX Automatic/Manual 4WD
ISUZU D-MAX 07/2021 - Ute TFR40 - 4JJ3-TCX | 3.0L | Diesel SX Automatic/Manual RWD
ISUZU D-MAX 07/2021 - Ute TFR40 - 4JJ3-TCX | 3.0L | Diesel SX SPACECAB Automatic RWD
ISUZU D-MAX 06/2021 - Cab Chassis TFR, TFS - 3.0L | Diesel DDI 4WD
ISUZU D-MAX 06/2021 - Cab Chassis TFR, TFS - 4JJ3-TCX | 3.0L | Diesel DDI AWD
ISUZU D-MAX 06/2021 - Cab Chassis TFR TFR40J 4JJ3-TCX | 3.0L | Diesel DDI RWD
ISUZU D-MAX 06/2021 - Cab Chassis TFR, TFS - 4JJ3-TCX | 3.0L | Diesel DDI RWD
ISUZU D-MAX 11/2021 - Ute TFR, TFS - RZ4E-TC | 1.9L | Diesel DDI 4WD
ISUZU D-MAX 11/2021 - Ute TFR TFR87 RZ4E-TC | 1.9L | Diesel DDI RWD

Isuzu MU-X (11/2021 - 12/on)

Make Model From To Body Generation Chassis Engine Variant Drivetrain
ISUZU MU-X 11/2021 - SUV TFS/TFR - RZ4F-TC | 2.2L | Diesel Ddi AWD
ISUZU MU-X 11/2021 - SUV TFS/TFR - RZ4F-TC | 2.2L | Diesel Ddi RWD
ISUZU MU-X 11/2021 - SUV TFS/TFR UCR/UCS RZ4E-TC | 1.9L | Diesel Ddi AWD
ISUZU MU-X 11/2021 - SUV TFS/TFR - RZ4E-TC | 1.9L | Diesel Ddi RWD
ISUZU MU-X 07/2021 - SUV RJ - 4JJ3-TCX | 3.0L | Diesel LS-M, LS-T, LS-U Automatic 4WD
ISUZU MU-X 07/2021 - SUV RJ - 4JJ3-TCX | 3.0L | Diesel LS-M, LS-T, LS-U Automatic RWD
ISUZU MU-X 06/2021 - SUV TFS/TFR - 4JJ3-TCX | 3.0L | Diesel Ddi 4WD
ISUZU MU-X 06/2021 - SUV TFS/TFR - 4JJ3-TCX | 3.0L | Diesel Ddi RWD
ISUZU MU-X 11/2021 12/2021 SUV UCS/UCR - 4JJ1-TC, 4JJ1-TCX | 3.0L | Diesel CRDi AWD
ISUZU MU-X 11/2021 12/2021 SUV UCS/UCR - 4JJ1-TC, 4JJ1-TCX | 3.0L | Diesel CRDi RWD
ISUZU MU-X 11/2021 12/2021 SUV UCS - 4JJ1TC | 3.0L | Diesel LS-M, LS-T, LS-U Automatic/Manual 4WD
ISUZU MU-X 11/2021 12/2021 SUV UCR - 4JJ1TC | 3.0L | Diesel LS-M, LS-T, LS-U Automatic RWD
