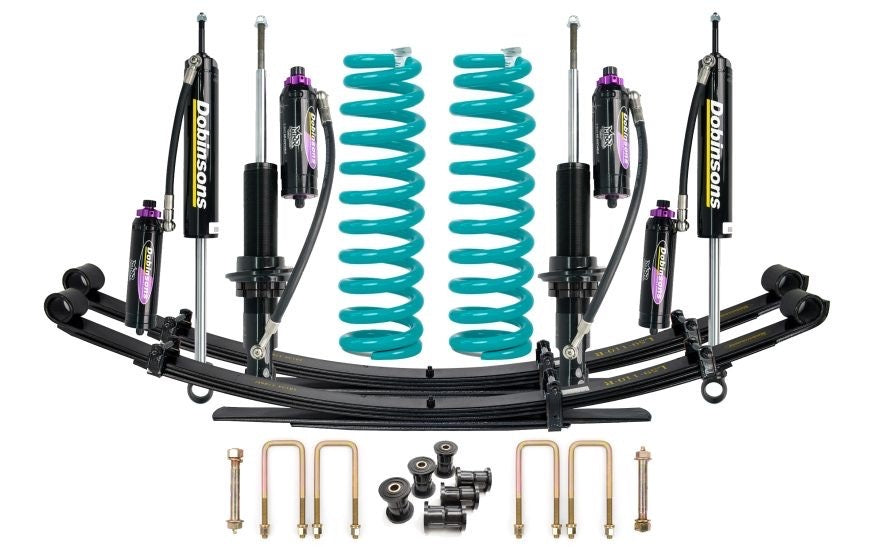

• Dobinsons MRR lift kit components

Dobinsons

Dobinsons Isuzu D-Max TFS40 MRR 3" Lift Kit

PP-DOB-ISZU-DMAX-MRR-3-F1R1
$5,441.14
$5,441.14
Tax included.

The Isuzu D-Max TFS40 MRR 3" Lift Kit is a complete 3" suspension upgrade engineered specifically for the Isuzu D-Max TFS40. This kit pairs Dobinsons' MRR remote reservoir adjustable shocks with matched coils and supporting hardware to deliver improved ground clearance, load capacity and on- and off-road ride quality.

What's Included

Front:

  • 1x Dobinsons Forged Aluminium Upper Control Arms PAIR
  • 2x Dobinsons Heavy Duty Strut Tops
  • 2x Dobinsons Front MRR Struts (Remote Res Adjustable)
  • 1x Dobinsons 3" Coils PAIR (front)
  • 2x Strut Assembly
  • 1x Dobinsons Diff Drop Kit

Rear:

  • 2x Dobinsons Rear MRR Shocks (Remote Res Adjustable)
  • 2x Dobinsons 2" Leaf Springs
  • 2x Dobinsons Greaseable Shackle
  • 2x Dobinsons Greaseable Pin
  • 1x Dobinsons Bush Kit
  • 2x Dobinsons U-Bolt Kit
  • 1x Dobinsons Brake Line Extension Kit

Fitting & Delivery:

  • Freight from Dobinsons to install location
  • Professional installation
  • Wheel alignment

Choose Your Load Rating

Front and rear load ratings are selectable on this page. Pick the option that matches the constant load your vehicle actually carries (bull bars, drawers, long-range tanks, tow ball weight, etc.).

Note: Selecting a heavier load option without the matching weight on the vehicle will raise it higher than the designated lift height and may have negative driveability side effects.

Vehicle Applications

Isuzu D-MAX (06/2020 - 12/2025)

Make Model From To Body Series Engine Variant Drivetrain
ISUZU D-MAX 07/2020 12/2025 Cab Chassis TFR, TFR, TFS, TFS, TFR, TFS (TFR85J), TFR, TFS (TFS85J) RZ4F-TC | 2.2L | Diesel SX Automatic 4X2
ISUZU D-MAX 07/2020 12/2025 Cab Chassis TFR, TFR, TFS, TFS, TFR, TFS (TFR85J), TFR, TFS (TFS85J) RZ4F-TC | 2.2L | Diesel SX Automatic 4X4
ISUZU D-MAX 07/2020 12/2025 Single Cab TFR, TFR, TFS, TFS, TFR, TFS (TFR85J), TFR, TFS (TFS85J) RZ4F-TC | 2.2L | Diesel SX Automatic 4X2
ISUZU D-MAX 07/2020 12/2025 Ute TFR, TFR, TFS, TFS, TFR, TFS (TFR85J), TFR, TFS (TFS85J) RZ4F-TC | 2.2L | Diesel SX Automatic 4X2
ISUZU D-MAX 07/2020 12/2025 Ute TFR, TFR, TFS, TFS, TFR, TFS (TFR85J), TFR, TFS (TFS85J) RZ4F-TC | 2.2L | Diesel SX Automatic 4X4
ISUZU D-MAX 07/2020 12/2025 Ute TFR, TFR, TFS, TFS, TFR, TFS (TFR85J), TFR, TFS (TFS85J) RZ4F-TC | 2.2L | Diesel X-RIDER Automatic 4X4
ISUZU D-MAX 11/2020 12/2025 Cab Chassis TFR, TFS (TFR41J) RZ4F-TC | 2.2L | Diesel DDI RWD
ISUZU D-MAX 11/2020 12/2025 Ute TFR, TFS (TFS41J) RZ4F-TC | 2.2L | Diesel DDi 4WD
ISUZU D-MAX 11/2020 12/2025 Ute TFR, TFS (TFR41J) RZ4F-TC | 2.2L | Diesel DDi RWD
ISUZU D-MAX 10/2020 12/2025 Cab Chassis TFR, TFS RZ4E-TC | 1.9L | Diesel - RWD
ISUZU D-MAX 07/2020 12/2025 Cab Chassis - 4JJ3-TCX | 3.0L | Diesel SX Automatic/Manual 4WD
ISUZU D-MAX 07/2020 12/2025 Cab Chassis - 4JJ3-TCX | 3.0L | Diesel SX Automatic/Manual RWD
ISUZU D-MAX 07/2020 12/2025 Single Cab - 4JJ3-TCX | 3.0L | Diesel SX Automatic/Manual 4WD
ISUZU D-MAX 07/2020 12/2025 Single Cab - 4JJ3-TCX | 3.0L | Diesel SX Automatic/Manual RWD
ISUZU D-MAX 07/2020 12/2025 Ute TFS40 4JJ3-TCX | 3.0L | Diesel CRD Automatic/Manual 4WD
ISUZU D-MAX 07/2020 12/2025 Ute TFR40 4JJ3-TCX | 3.0L | Diesel LS-U, SX Automatic RWD
ISUZU D-MAX 07/2020 12/2025 Ute TFS40 4JJ3-TCX | 3.0L | Diesel LS-U, SX SPACECAB Automatic/Manual 4WD
ISUZU D-MAX 07/2020 12/2025 Ute TFS40 4JJ3-TCX | 3.0L | Diesel SX Automatic/Manual 4WD
ISUZU D-MAX 07/2020 12/2025 Ute TFS 4JJ3-TCX | 3.0L | Diesel SX Automatic/Manual 4WD
ISUZU D-MAX 07/2020 12/2025 Ute TFR40 4JJ3-TCX | 3.0L | Diesel SX Automatic/Manual RWD
ISUZU D-MAX 07/2020 12/2025 Ute TFR40 4JJ3-TCX | 3.0L | Diesel SX SPACECAB Automatic RWD
ISUZU D-MAX 06/2020 12/2025 Cab Chassis TFR, TFS 3.0L | Diesel DDI 4WD
ISUZU D-MAX 06/2020 12/2025 Cab Chassis TFR, TFS 4JJ3-TCX | 3.0L | Diesel DDI AWD
ISUZU D-MAX 06/2020 12/2025 Cab Chassis TFR, TFS 4JJ3-TCX | 3.0L | Diesel DDI RWD
ISUZU D-MAX 06/2020 12/2025 Cab Chassis TFR, TFS (TFR40J) 4JJ3-TCX | 3.0L | Diesel DDI RWD
ISUZU D-MAX 11/2020 12/2025 Ute TFR, TFS RZ4E-TC | 1.9L | Diesel DDI 4WD
ISUZU D-MAX 11/2020 12/2025 Ute TFR, TFS RZ4E-TC | 1.9L | Diesel DDI RWD
ISUZU D-MAX 11/2020 12/2025 Ute TFR 4JJ1-TCX | 3.0L | Diesel SX SPACE CAB Automatic/Manual RWD
ISUZU D-MAX 06/2020 12/2025 Cab Chassis TFR, TFS 4JJ1-TC | 3.0L | Diesel CRDi AWD
ISUZU D-MAX 06/2020 12/2025 Cab Chassis TFR, TFS (TFR85J) 4JJ1-TC | 3.0L | Diesel CRDi RWD
ISUZU D-MAX 06/2020 12/2025 Cab Chassis TFR, TFS 4JJ1-TC | 3.0L | Diesel CRDi RWD
ISUZU D-MAX 06/2020 12/2025 Ute TFR, TFS (TFS85J) 4JJ1-TC | 3.0L | Diesel CRDi AWD
ISUZU D-MAX 06/2020 12/2025 Ute TFS 4JJ1-TCX | 3.0L | Diesel EX, SX Automatic/Manual 4WD
ISUZU D-MAX 06/2020 12/2025 Ute TFR 4JJ1-TCX | 3.0L | Diesel LS HI-RIDE, LS-T HIGH-RIDE, LS-TERRAIN HI-RIDE, LS-U HI-RIDE, SX, SX HI-RIDE Automatic/Manual RWD
ISUZU D-MAX 06/2020 12/2025 Ute TFS 4JJ1-TCX | 3.0L | Diesel LS-M, LS-M HI-RIDE, LS-T 01/19, LS-TERRAIN HI-RIDE, LS-U, LS-U HI-RIDE, SX, SX HI-RIDE, X-RIDER LIMITED EDTION, X-RUNNER Automatic/Manual 4WD
ISUZU D-MAX 06/2020 12/2025 Ute TFS 4JJ1-TCX | 3.0L | Diesel LS-U, LS-U HI-RIDE, SX SPACE CAB Automatic/Manual 4WD
ISUZU D-MAX 06/2020 12/2025 Ute TFR 4JJ1-TCX | 3.0L | Diesel SX, SX HI-RIDE, SX LOW-RIDE Automatic/Manual RWD
