KMC

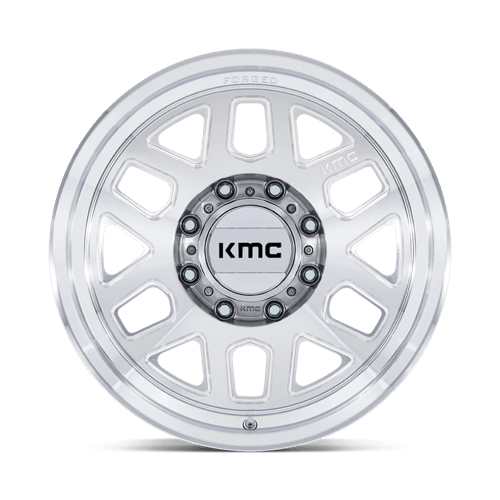

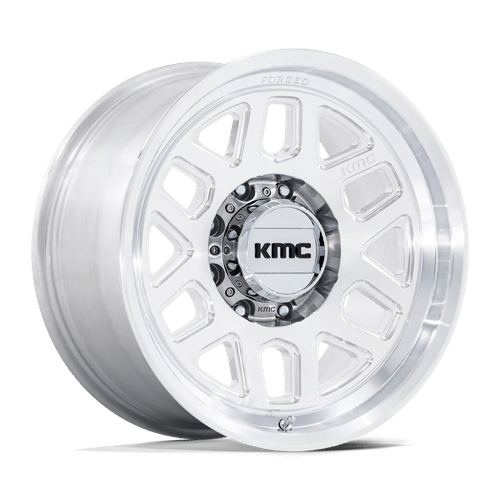

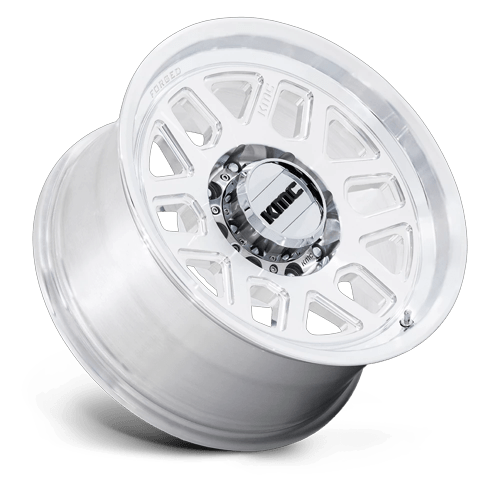

KMC KM451 MESA FORGED MONOBLOCK 18x9 8x170 -12 Raw Machined

KM451DX18908712N

$804.00
$804.00 $804.00
Tax included.
Fitting & Tyres AvailableFlares Fitment
Fitting & Tyres AvailableFlares Fitment
Brand KMC
Style KM451 MESA FORGED MONOBLOCK
Model Code KM451DX18908712N
Part Number KM451
UPC 194933352043
Available Sizes 18" × 9"
Rim Diameter 18"
Width 9"
Available Offsets -12mm
Backspacing 4.53"
Centerbore 125.1mm
Lip Depth 1.93"
Stud Pattern 8x170
Lug Count 8
Available Finishes Raw Machined
Colour Code MACHINED
Construction Type Monoblock Forged
Barrel Configuration S
Forged Yes
Wheel Weight 32.38 lbs
Shipping Weight 36.38 lbs
Load Rating (Standard) 4000 lbs
Load Rating (Metric) 1814 kg
Certification SAE J2530 JWL VIA
TPMS Compatible Yes
Cap Part Number T163H170-8-H77-P1
Rivet Part Number NONE
Accessories NONE
Finish Warranty NO
Structural Warranty LIFETIME
Country of Origin CN

Vehicle Applications

Ford F-250 (2017 - 12/2026)

Make Model From To Body Series Engine Variant Drivetrain
FORD F-250 09/2017 12/2026 Ute F2A, F2B T67DVTX | 6.7L | Diesel D AWD
FORD F-250 01/2017 12/2026 Ute - 406 | 6.7L | Diesel SUPER DUTY 4WD

Ford F-350 (07/2017 - 12/2026)

Make Model From To Body Series Engine Variant Drivetrain
FORD F-350 01/2017 12/2026 Ute SUPER DUTY 6.7L | Diesel TDCi AWD
FORD F-350 07/2017 12/2026 Ute SUPER DUTY T67DVTX | 6.7L | Diesel D AWD
