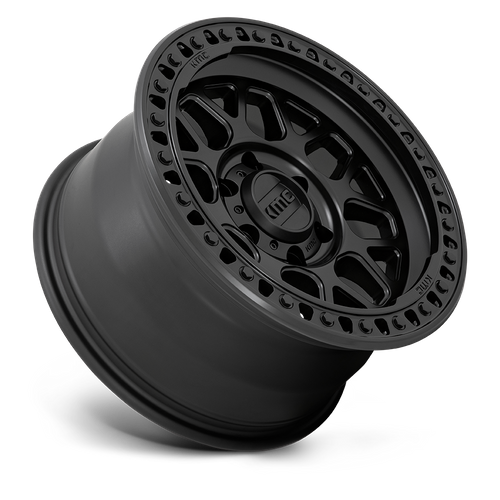

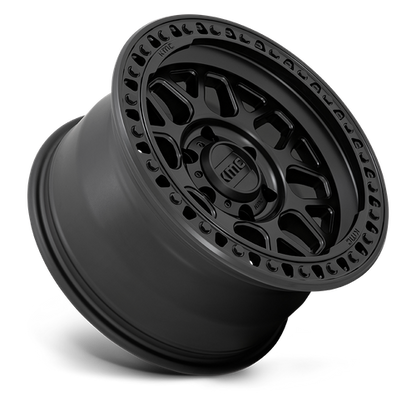

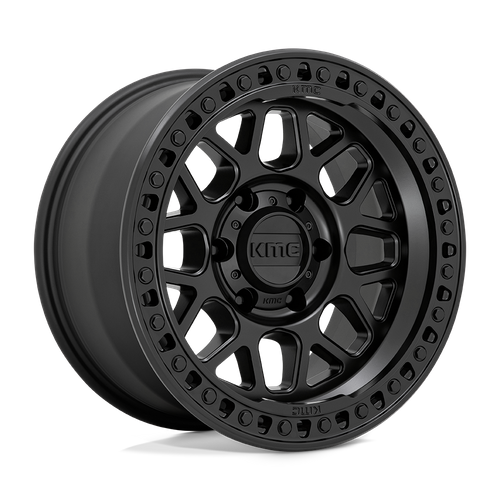

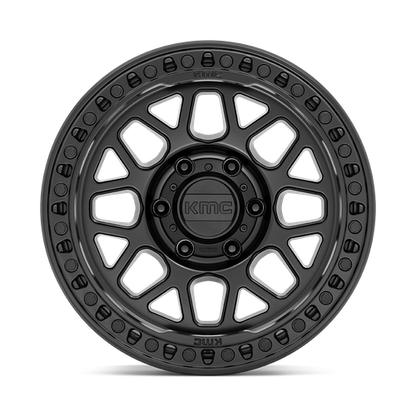

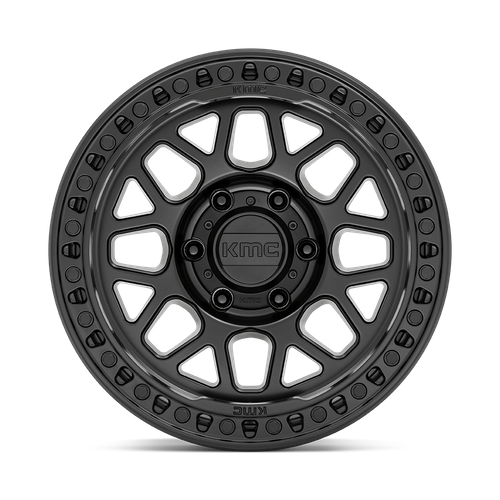

KMC KM549 GRS 20x9 8x165.1 +18 Satin Black
KM54929080718
Regular price
$473.00
Sale price
$473.00
Regular price
$473.00
Unit price
per
Tax included.
Fitting & Tyres AvailableFlush Fitment
Product enquiry
Request a quick quote
Send us your details and our team will be in touch about KMC KM549 GRS 20x9 8x165.1 +18 Satin Black.
Thanks for your enquiry
We have received your quick quote request and will be in touch shortly.
Fitting & Tyres AvailableFlush Fitment
| Brand | KMC |
|---|---|
| Style | KM549 GRS |
| Model Code | KM54929080718 |
| Part Number | KM549 |
| UPC | 194933170234 |
| Available Sizes | 20" × 9" |
| Rim Diameter | 20" |
| Width | 9" |
| Available Offsets | +18mm |
| Backspacing | 5.71" |
| Centerbore | 125.1mm |
| Lip Depth | 1.97" |
| Stud Pattern | 8x165.1 |
| Lug Count | 8 |
| Available Finishes | Satin Black |
| Colour Code | BLACK |
| Construction Type | Cast Aluminum |
| Barrel Configuration | S |
| Wheel Weight | 34.99 lbs |
| Shipping Weight | 39.99 lbs |
| Load Rating (Standard) | 3700 lbs |
| Load Rating (Metric) | 1678 kg |
| Certification | SAEJ2530 |
| TPMS Compatible | Yes |
| Cap Part Number | T163H170-8-H65-S7 |
| Rivet Part Number | D05-B |
| Rivet Quantity | 24 |
| Accessories | NONE |
| Finish Warranty | ONE YEAR |
| Structural Warranty | LIFETIME |
| Country of Origin | CN |
| Patent | D1005915 |
Vehicle Applications
RAM 2500 (09/2018 - 12/2026)
| Make | Model | From | To | Body | Generation | Chassis | Engine | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|---|---|
| RAM | 2500 | 09/2018 | 12/2026 | Ute | - | - | ESA | 6.4L | Petrol | - | AWD |
| RAM | 2500 | 09/2018 | 12/2026 | Ute | DJ | - | ETJ | 6.7L | Diesel | D | AWD |
| RAM | 2500 | 09/2018 | 12/2026 | Ute | DJ | - | ETJ | 6.7L | Diesel | D | AWD |
| RAM | 2500 | 09/2018 | 12/2026 | Ute | DJ | - | ETJ, ETK | 6.7L | Diesel | D | AWD |
| RAM | 2500 | 11/2018 | 12/2026 | Ute | 2500 | - | 67 | 6.7L | Diesel | LARAMIE | 4WD |
RAM 3500 (09/2018 - 12/2026)
| Make | Model | From | To | Body | Generation | Chassis | Engine | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|---|---|
| RAM | 3500 | 09/2018 | 12/2026 | Ute | D2 | - | ESB | 6.4L | Petrol | - | AWD |
| RAM | 3500 | 09/2018 | 12/2026 | Ute | D2 | - | ETJ, ETK, ETL | 6.7L | Diesel | D | AWD |
| RAM | 3500 | 09/2018 | 12/2026 | Ute | D2 | - | ETJ, ETK, ETL | 6.7L | Diesel | D | AWD |
| RAM | 3500 | 09/2018 | 12/2026 | Ute | D2 | - | ETJ, ETK, ETL | 6.7L | Diesel | D | AWD |
| RAM | 3500 | 11/2018 | 12/2026 | Ute | 3500 | - | 67 | 6.7L | Diesel | LARAMIE | 4WD |
| RAM | 3500 | 01/2018 | 12/2026 | Ute | 3500 | - | 67 | 6.7L | Diesel | LONGHORN | 4WD |
