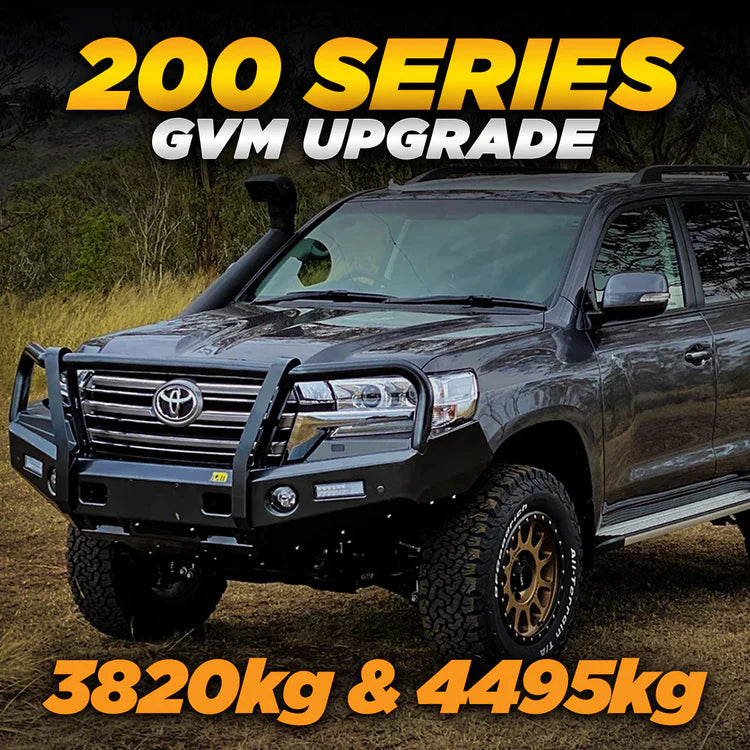

Landcruiser 200 Series GVM Upgrade

The DMW GVM upgrade for the Landcruiser 200 Series will increase your vehicle's legal carrying load up to an impressive 4495kg, without affecting handling or performance. We offer fully compliant and QA-checked upgrade options with federally approved SSM (Second Stage Manufacturer) certification, available for both pre and post registration vehicles.

Price includes professional installation. The listed price is fully fitted -- DMW components supplied and installed at our workshop, plus wheel alignment and all engineering compliance work. Select your configuration and registration status (Pre Rego or Post Rego) to see the final price. No additional fitting fee at checkout.

GVM Upgrade Options for the Landcruiser 200 Series

Option 1: 3820kg GVM

Up to 470kg* GVM increase

• GVM increased from 3350kg to 3820kg (470kg increase)
• Front axle rating increased from 1630kg to 1780kg
• Rear axle rating increased from 1950kg to 2260kg
• Towing Capacity 3500kg
• Upgraded DMW suspension and handling package
• Airbag Man Airbags
• Front and rear wheel alignment
• Pre and post registration options
• Includes federal certification and engineering costs if performed pre-registration

Option 2: 4495kg GVM

Up to 1145kg* GVM increase

• GVM increased from 3350kg to 4495kg (1145kg increase)
• Front axle rating increased from 1630kg to 1780kg
• Rear axle rating increased from 1950kg to 3000kg
• Towing Capacity 3500kg
• Upgraded DMW suspension and handling package
• Airbag Man Airbags with high pressure sleeves
• Front and rear wheel alignment
• Pre and post registration options
• Includes federal certification and engineering costs if performed pre-registration
• Diff Bracing package
• Wheels and tyres upgraded with higher load ratings

DMW Suspension Package

The GVM upgrade includes the fitting of compliant components including upgraded shock absorbers, with a choice between two DMW shock options:

• XT IMS -- the no-nonsense DMW IMS monotube shock. Built for extreme durability, load carrying and reliable comfort with exceptional handling.
• XT MRA -- full adjustability with the remote reservoir adjustable shock, tuned to handle the toughest roads. Features 11-stage rebound, 16-stage low-speed and 14-stage high-speed compression adjustment for total ride control.

Both options are paired with upgraded springs to handle the extra weight, plus an array of supporting components to improve ride quality and handling.

Finite Element Analysis (FEA) & Brake Testing

To hold federal approvals as a Second Stage Manufacturer, DMW completes exhaustive FEA testing and analysis plus brake testing to ensure your vehicle is safe at the increased GVM. FEA is a computer simulation technique that analyses GVM upgrade products in detail for stress, vibration, heat transfer and many other physical characteristics. Combined with brake testing, this ensures your family is safe and your vehicle is insured once the GVM upgrade has been added.

GCM Upgrades by State

GVM upgrades are approved across all Australian states and territories, both pre and post registration. GCM (Gross Combination Mass) upgrades vary by jurisdiction -- key notes:

• QLD, WA, ACT & NT: GCM upgrade NOT approved on in-service (registered) vehicles; approved pre-registration under SSM.
• NSW, SA, VIC & TAS: GCM upgrade approved both pre and post registration (subject to compliance signatory).
• BTC (Braked Towing Capacity) upgrades are not permitted on light vehicles under any state.

A vehicle that is legally registered in one Australian state or Territory with a BTC, GVM or GCM upgrade can legally travel in another state or Territory. Actual GVM increase and availability subject to specific model variants.
