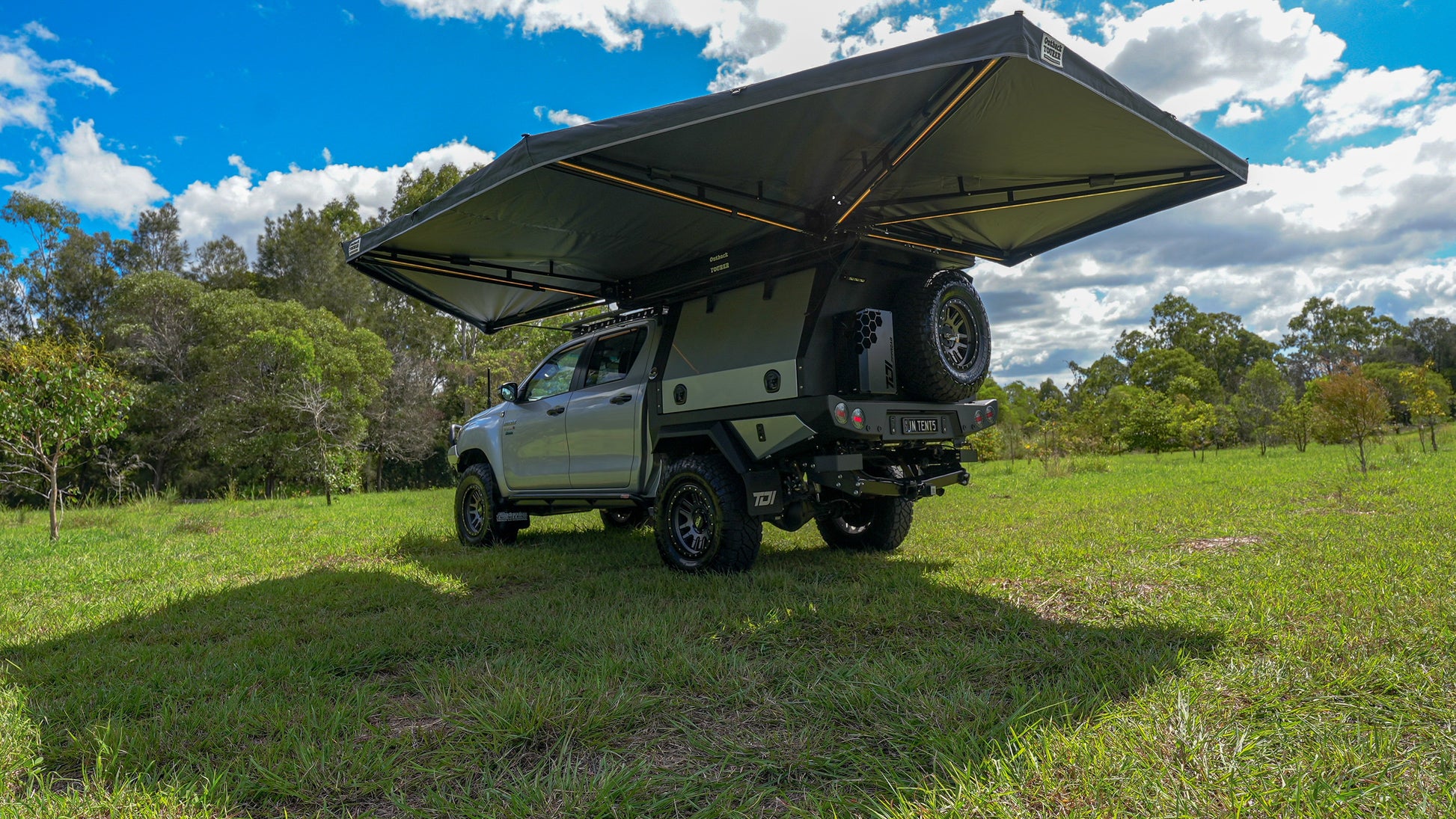

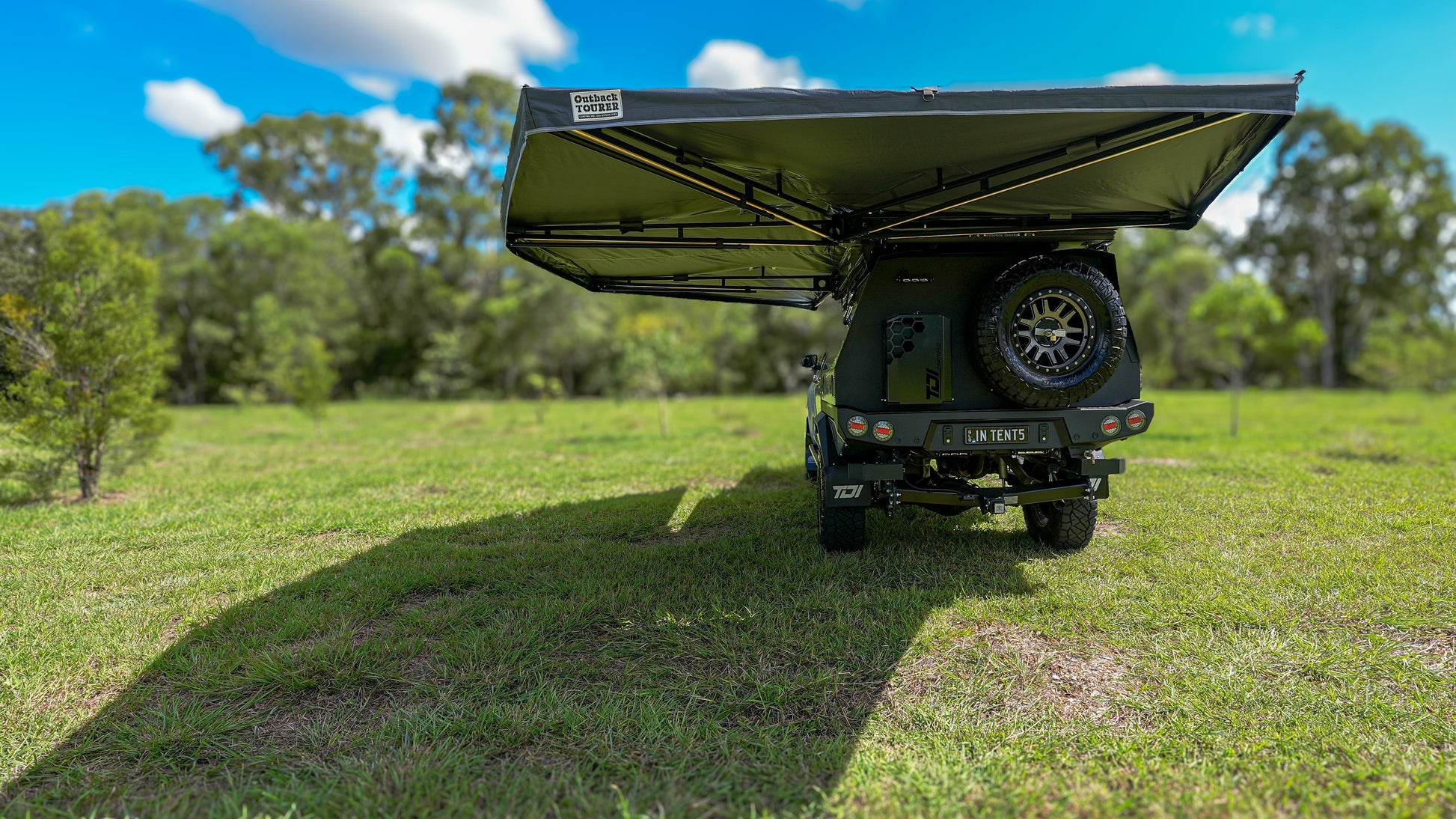

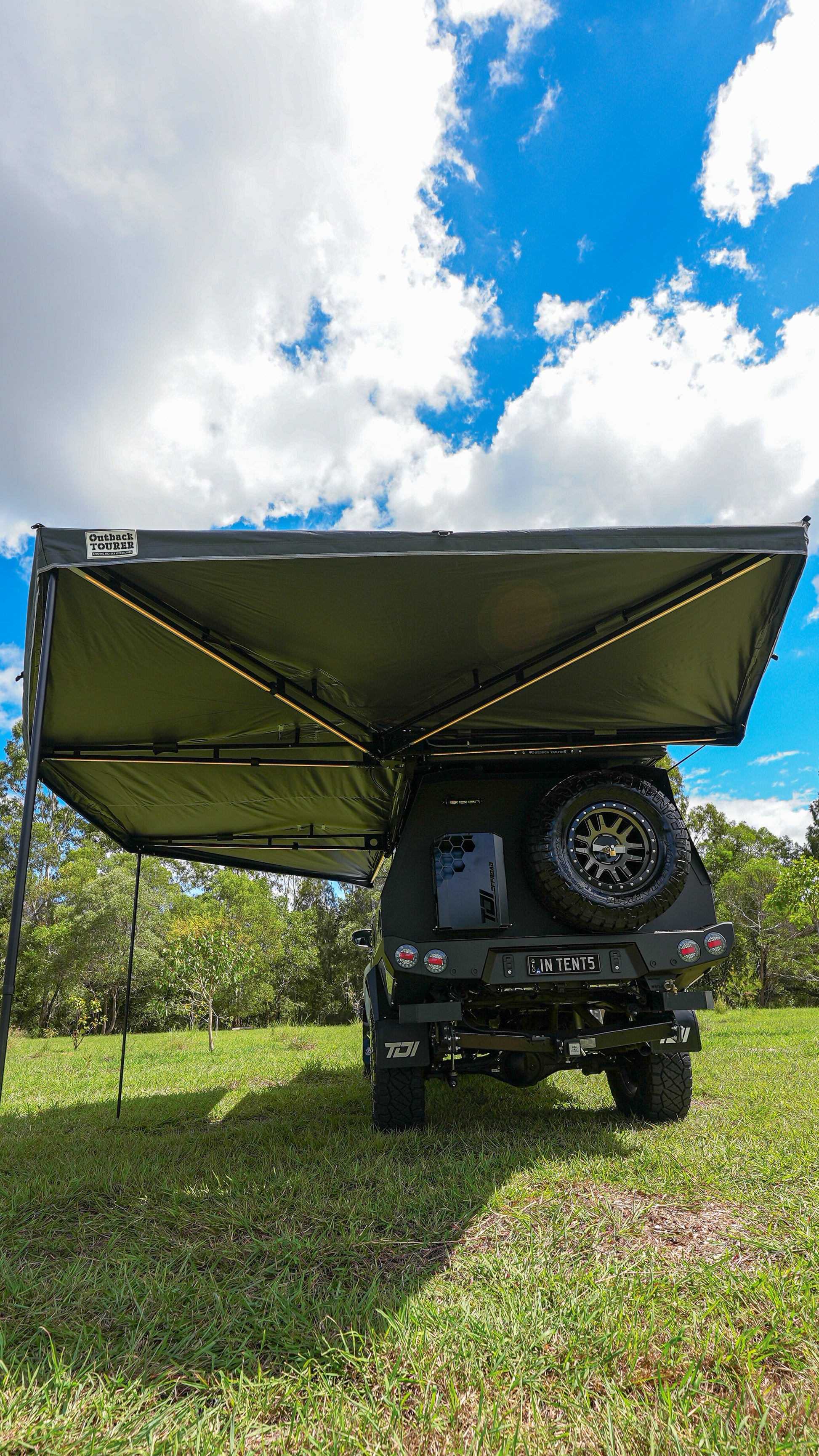

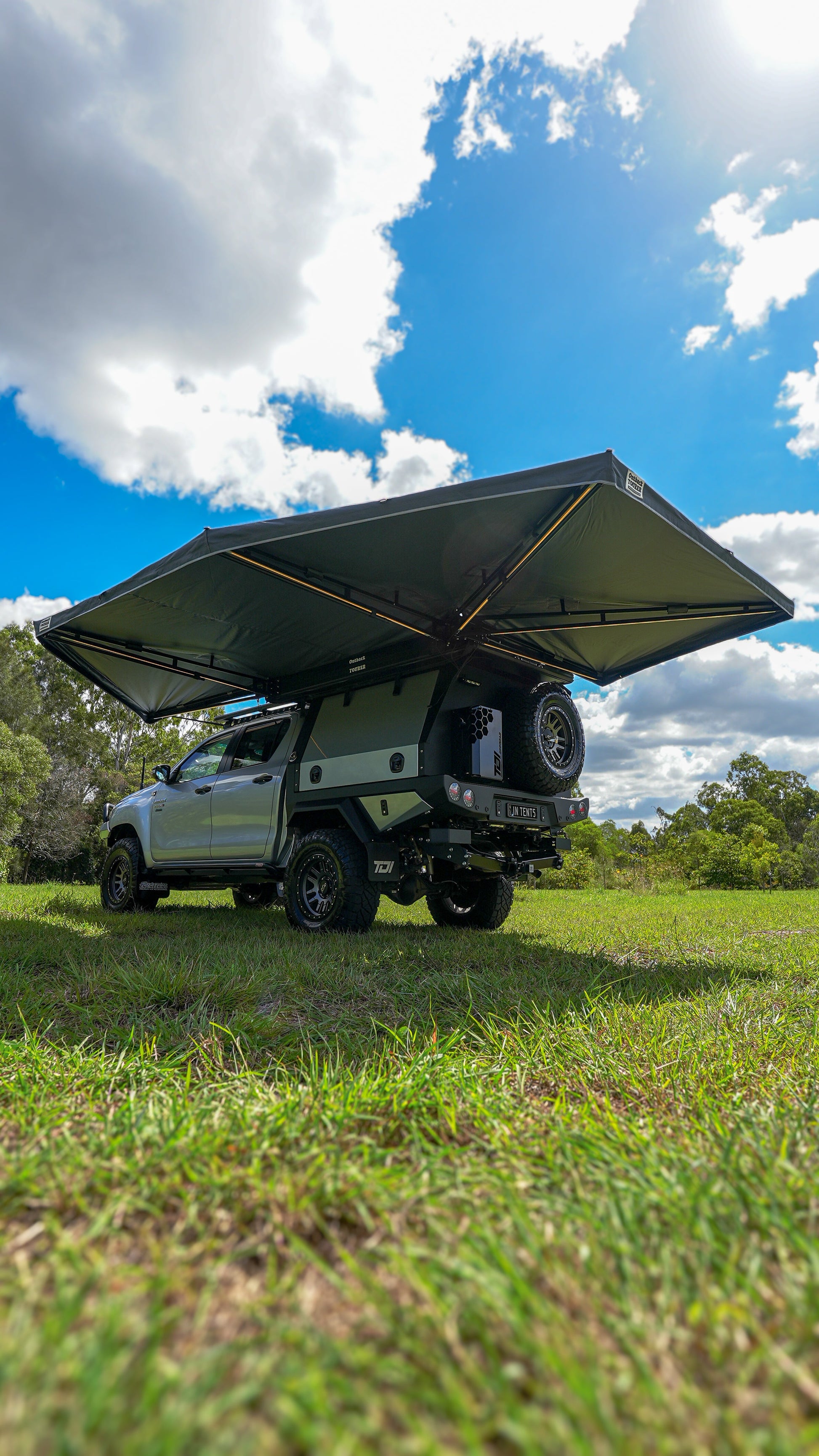

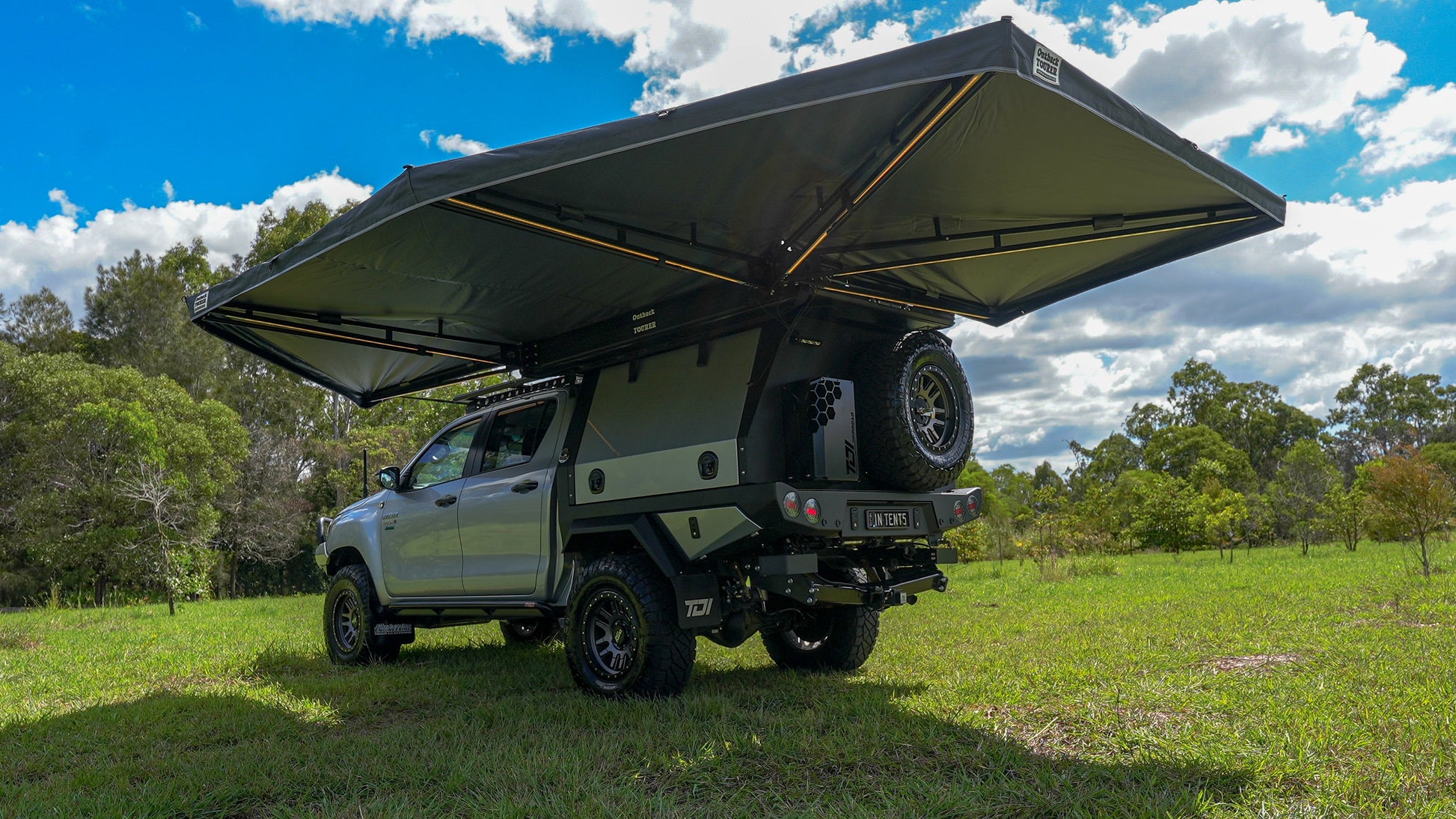

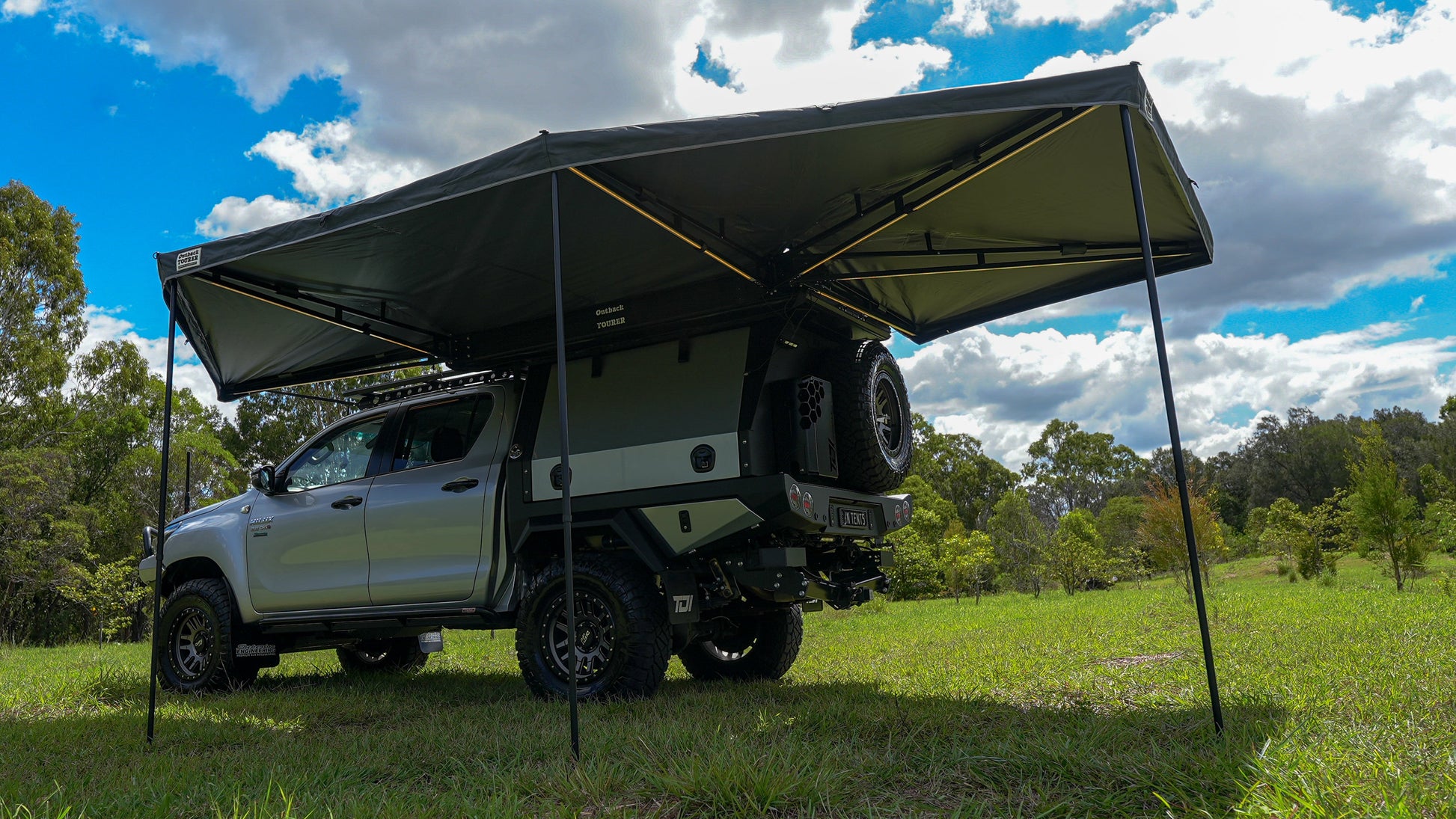

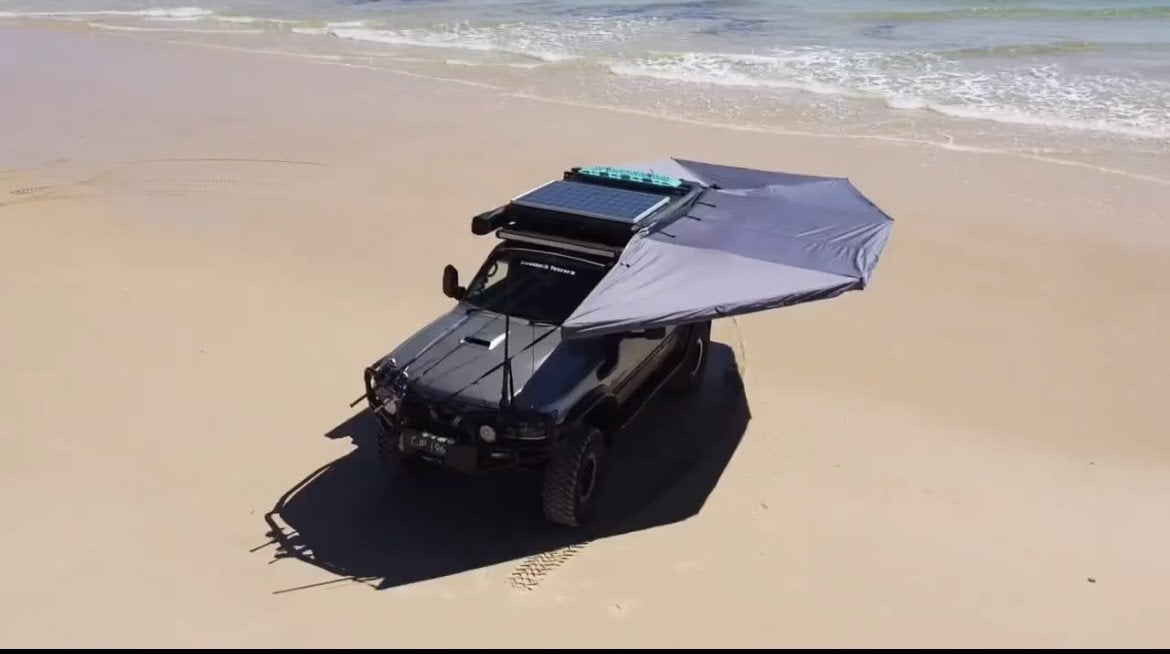

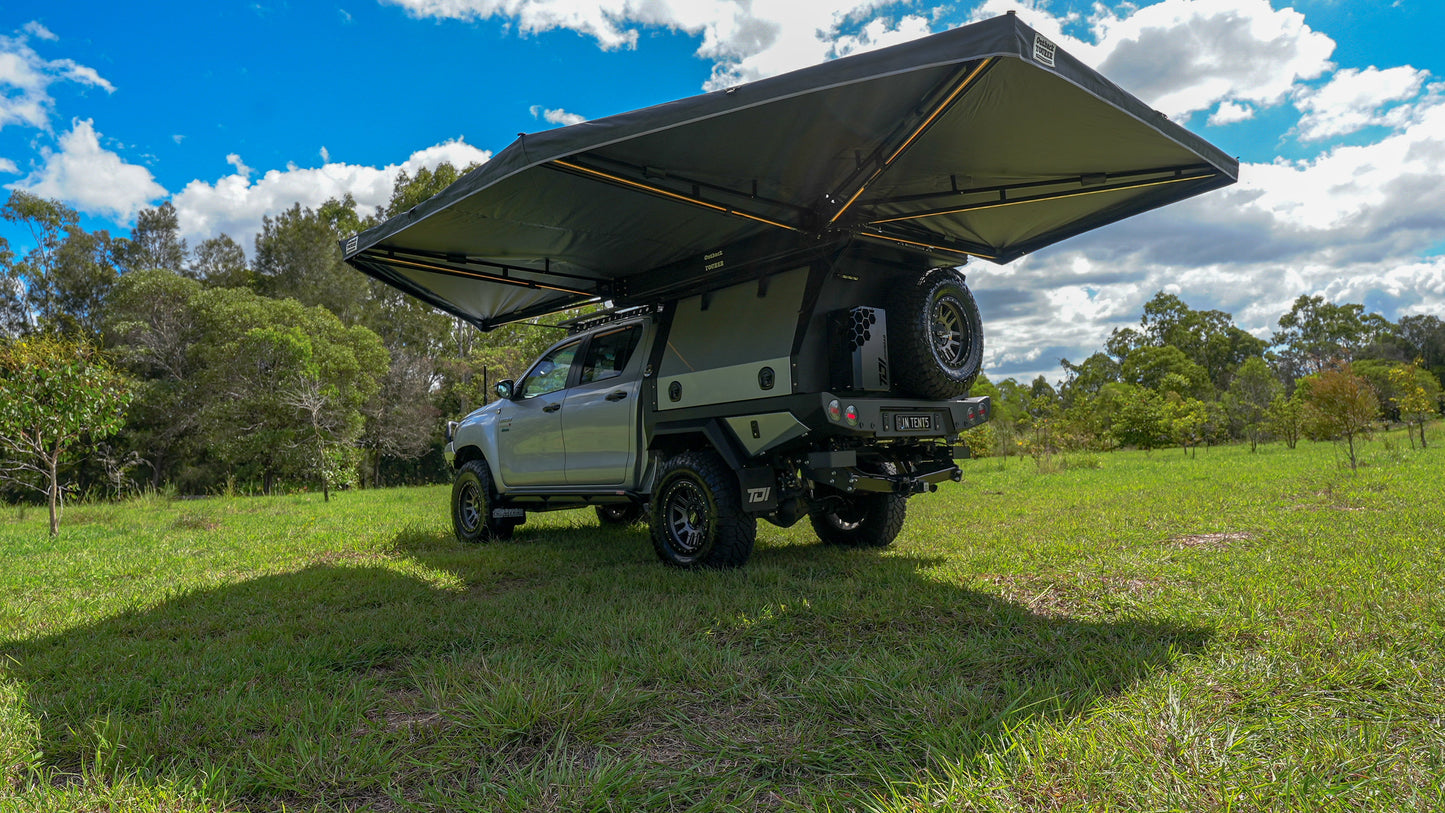

OUTBACK TOURER 270 PLUS

Specifications

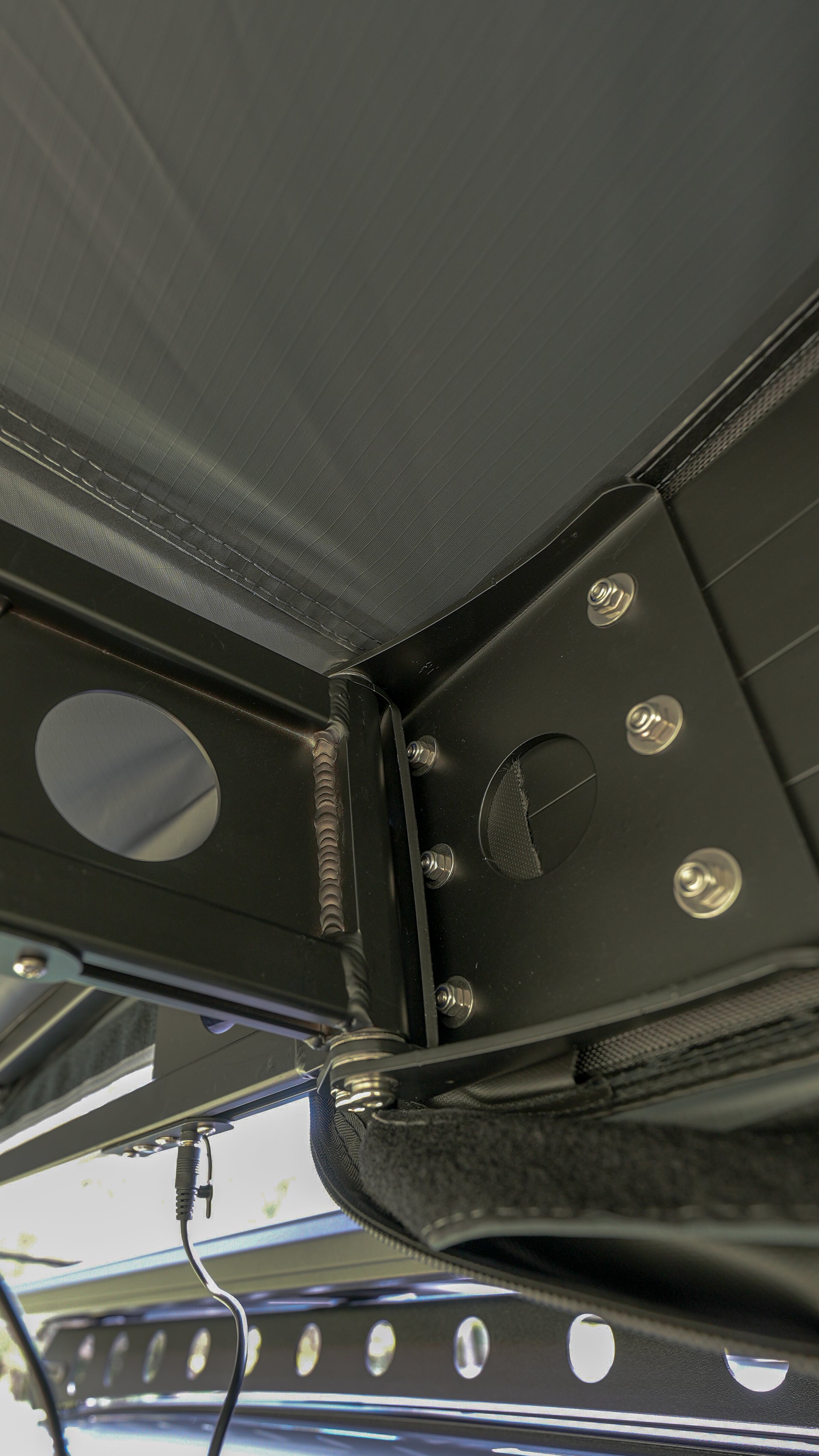

•  Fully integrated frame, welded to the backplate for strength. Others brands rivet their awnings together instead of welding.

• Poly Cotton ripstop 3000mm waterproof canvas fabric, far superior than 600D & 900D budget canvas.

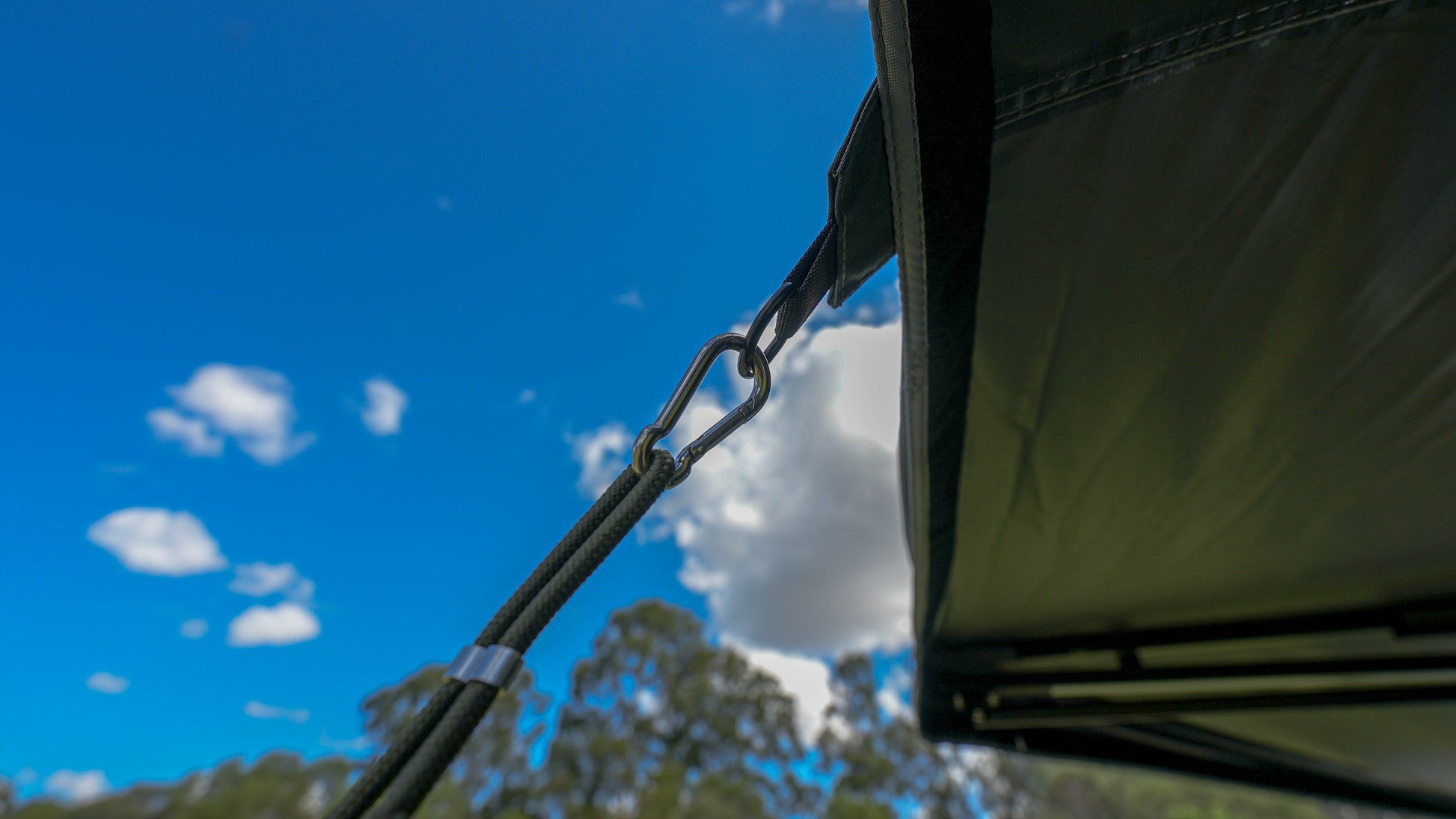

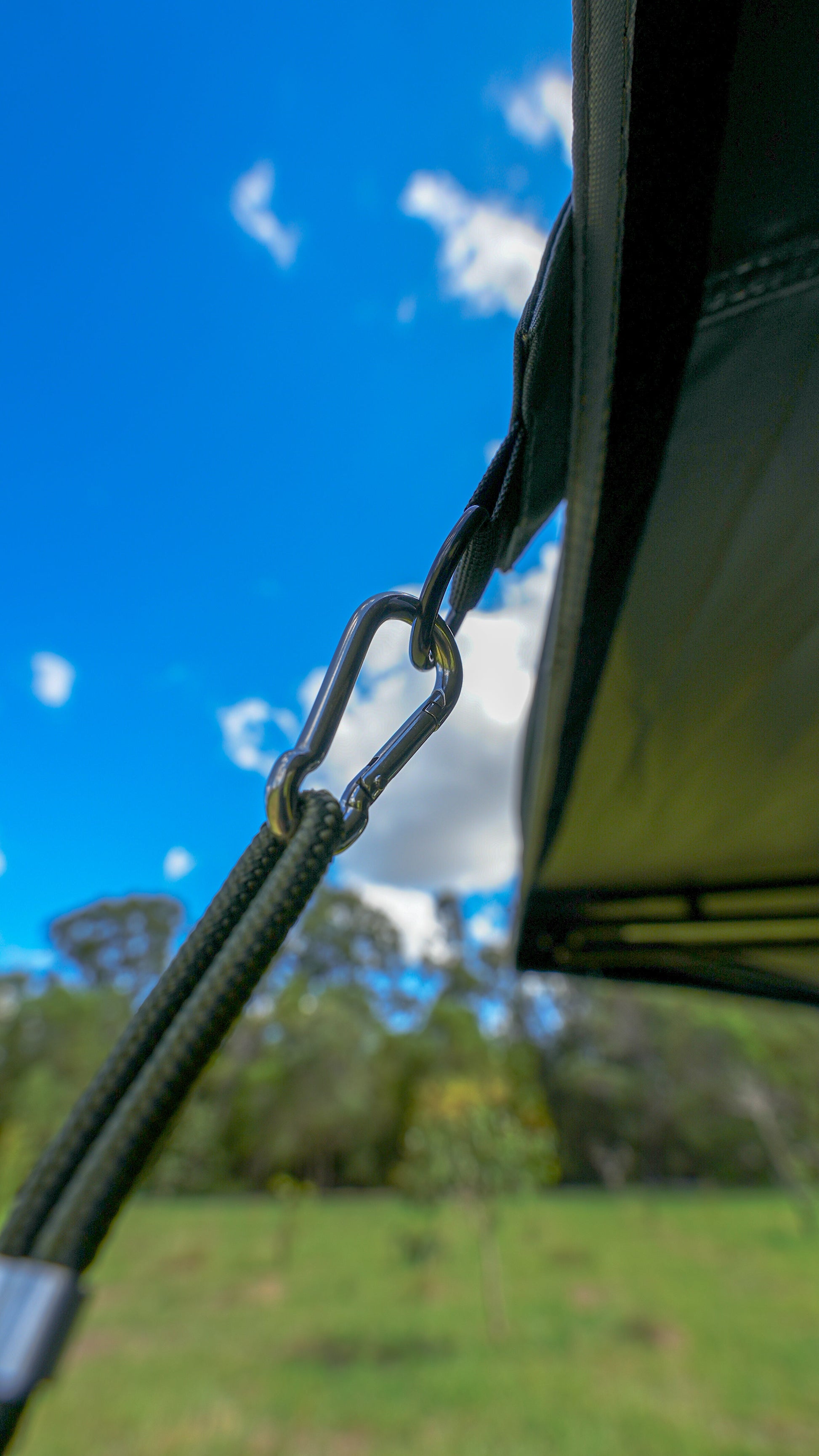

•  Tie down points to allow water run off with included 4 x guy ropes.

•  Black aluminium double truss arms with stainless bolts and nuts.

•  Weight-  29.8kg. No shortcuts in material thickness's.

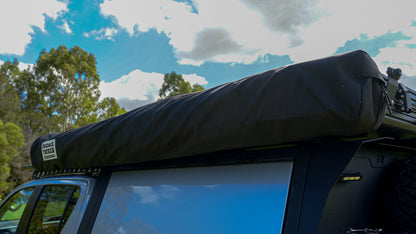

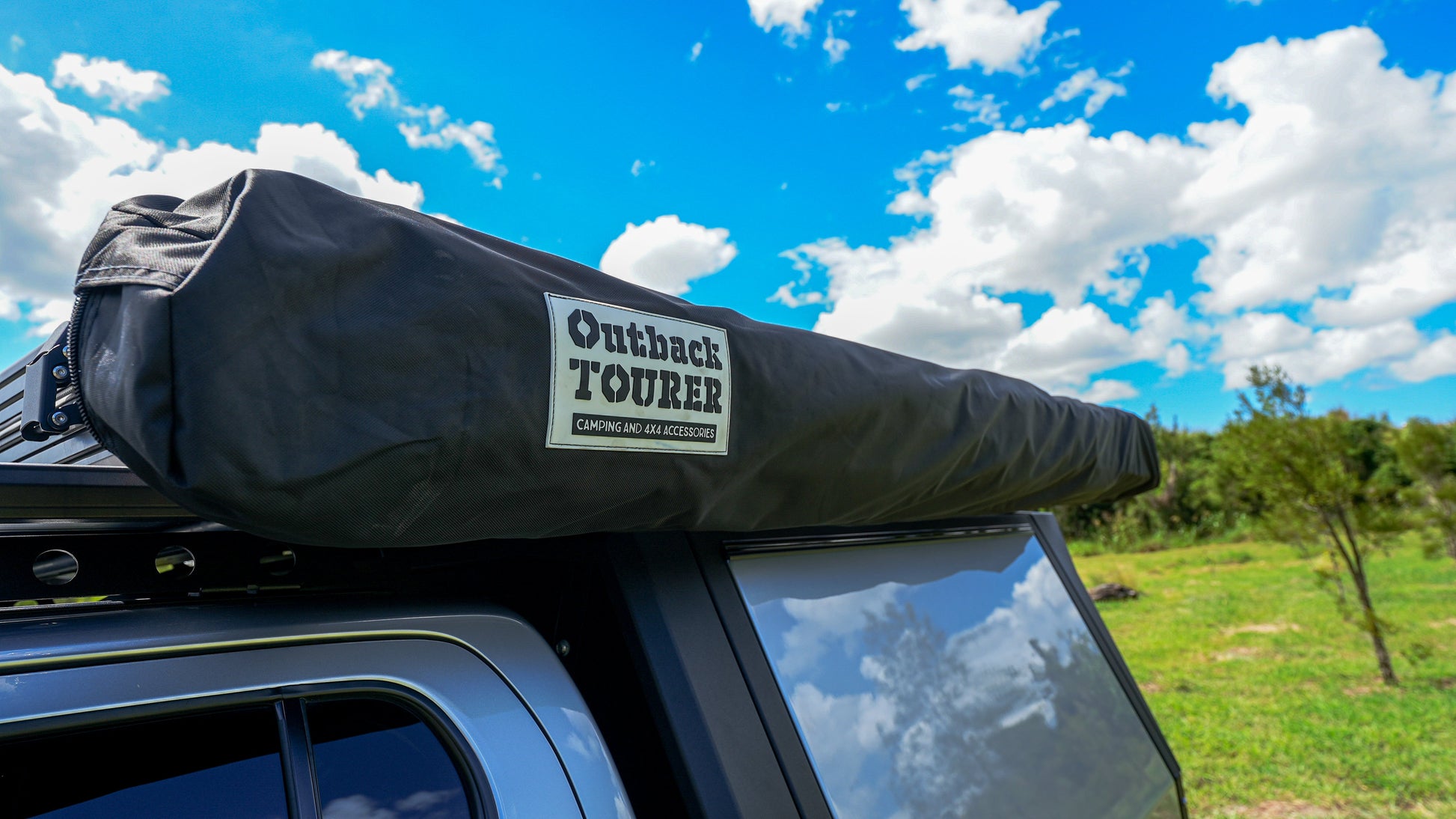

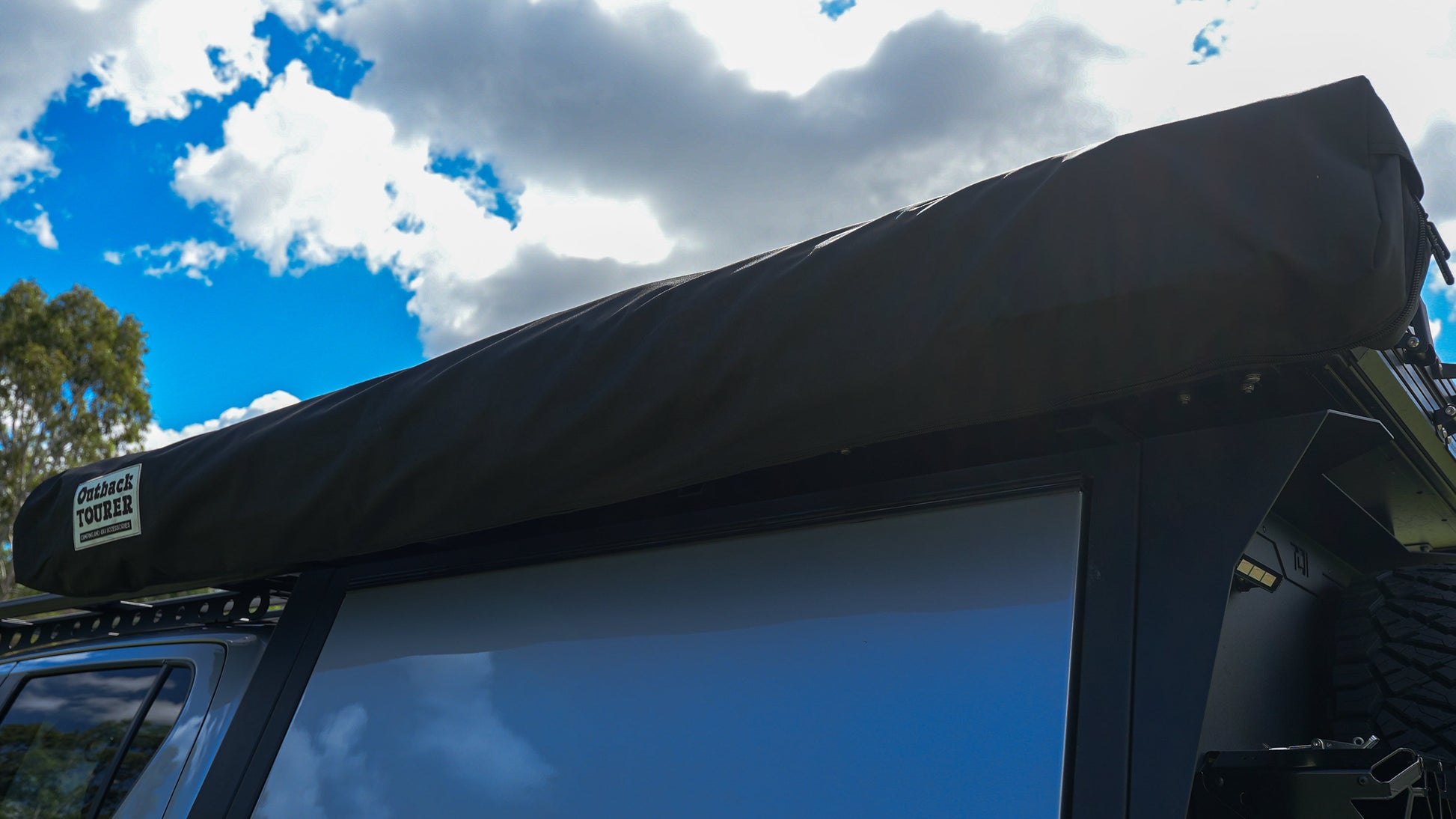

•  Velcro to secure awning when rolled up.

•  Height adjustable stainless steel mounting brackets included.

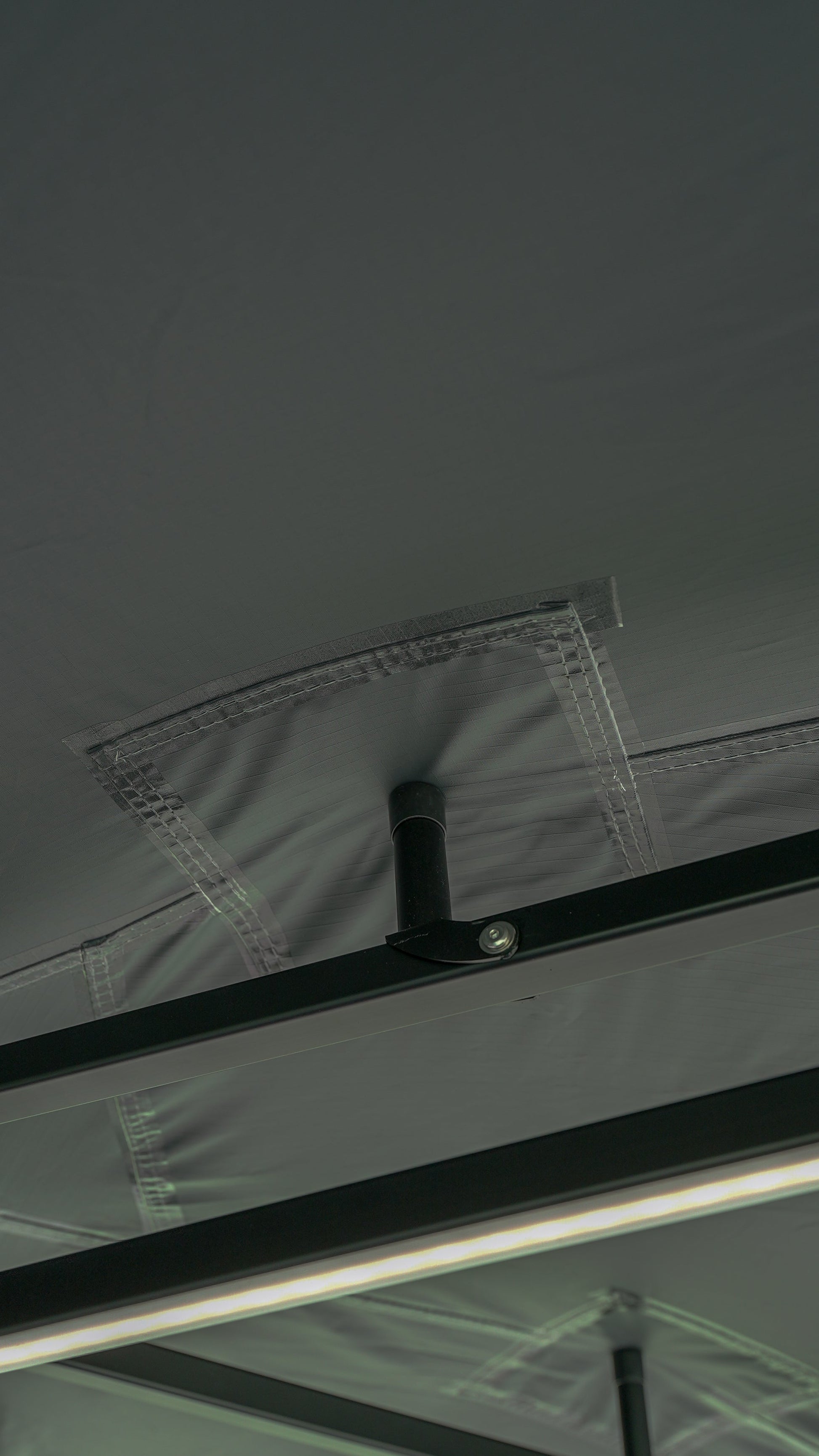

• 4 x rain arms for water run off.

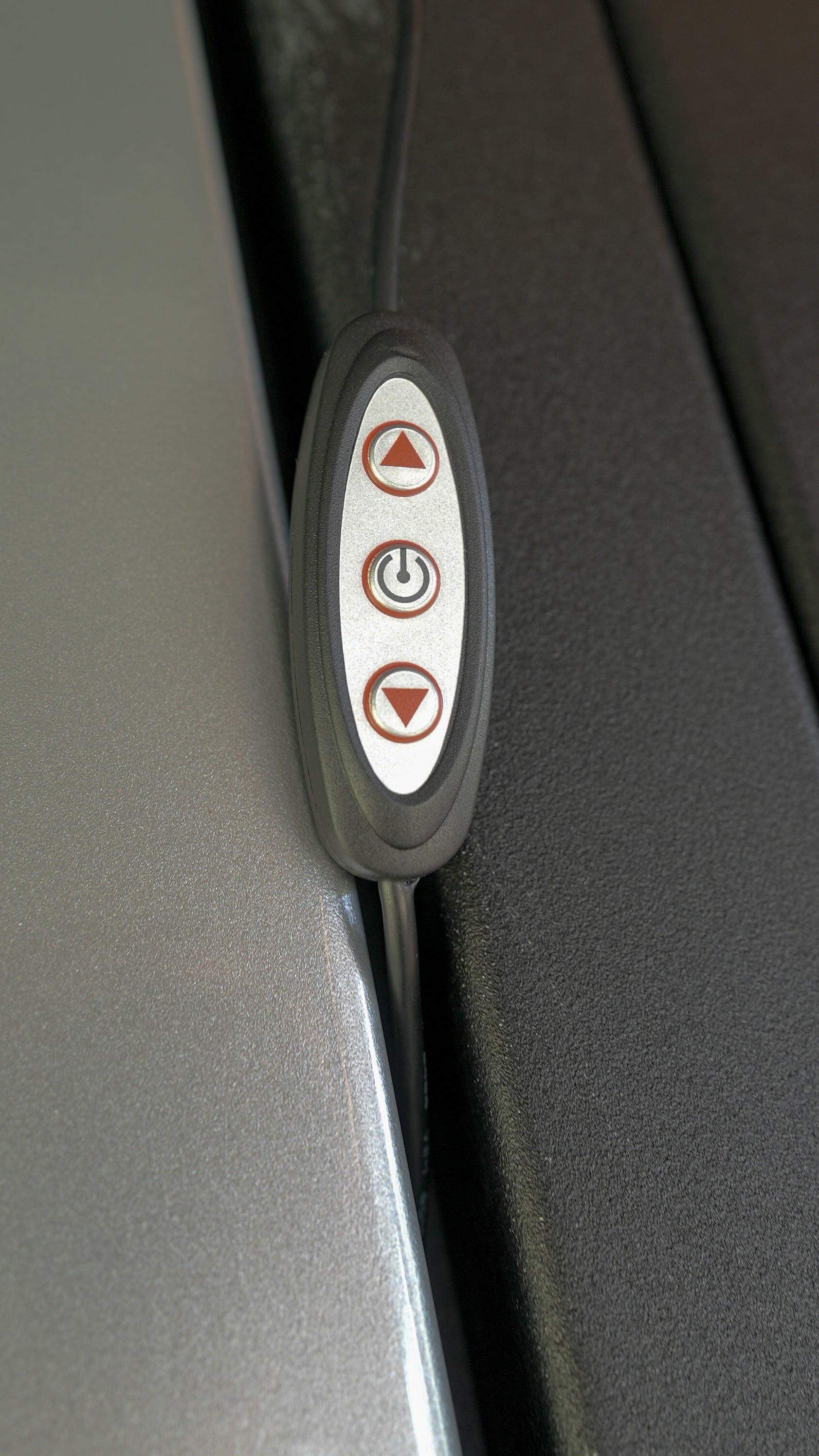

• 6x LED strip lights changeable white and warm colour to detract bugs.

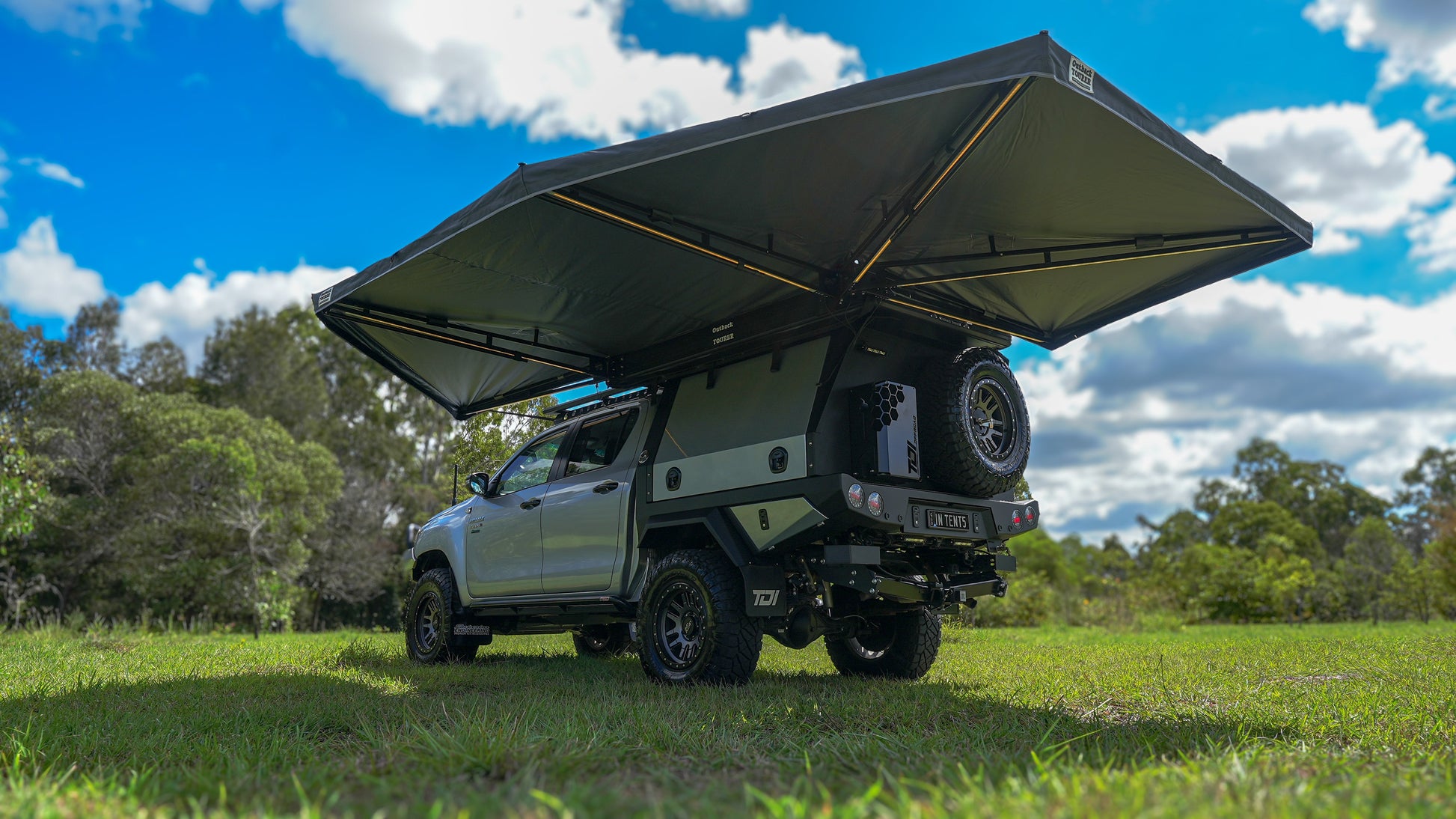

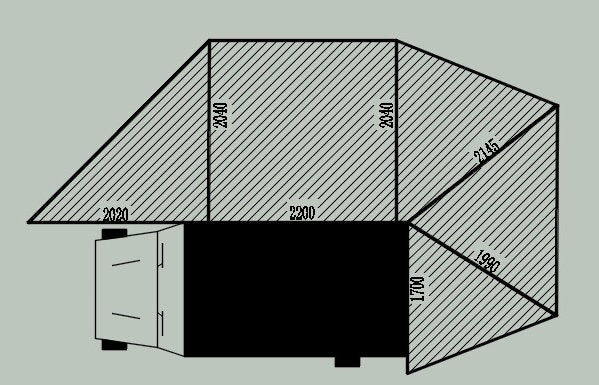

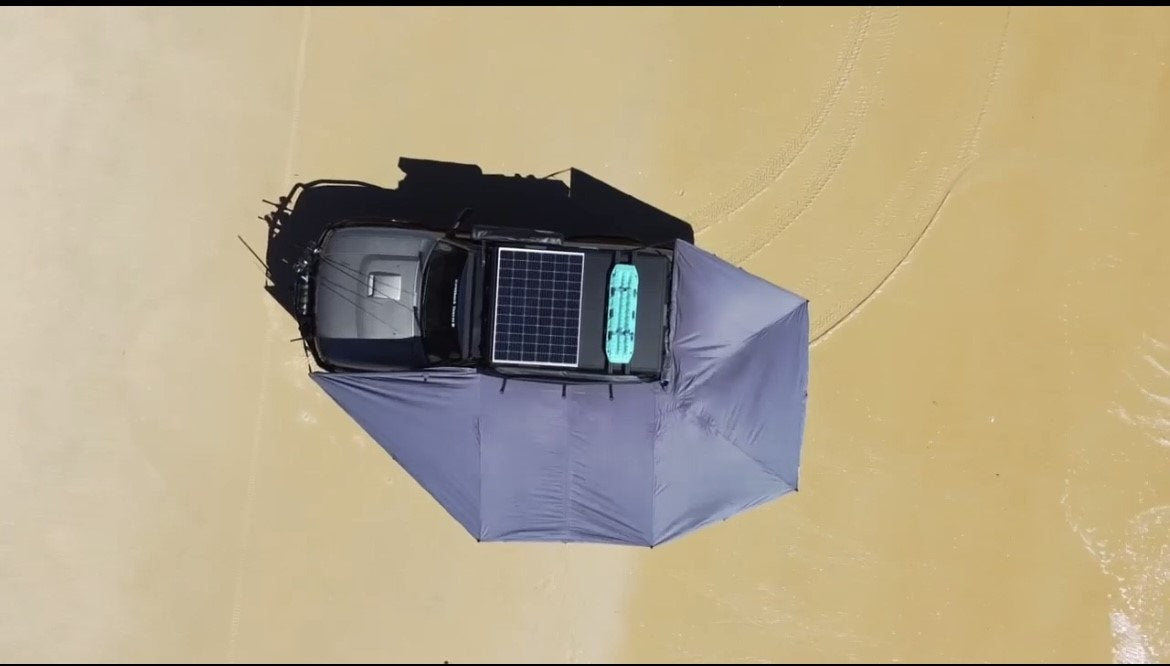

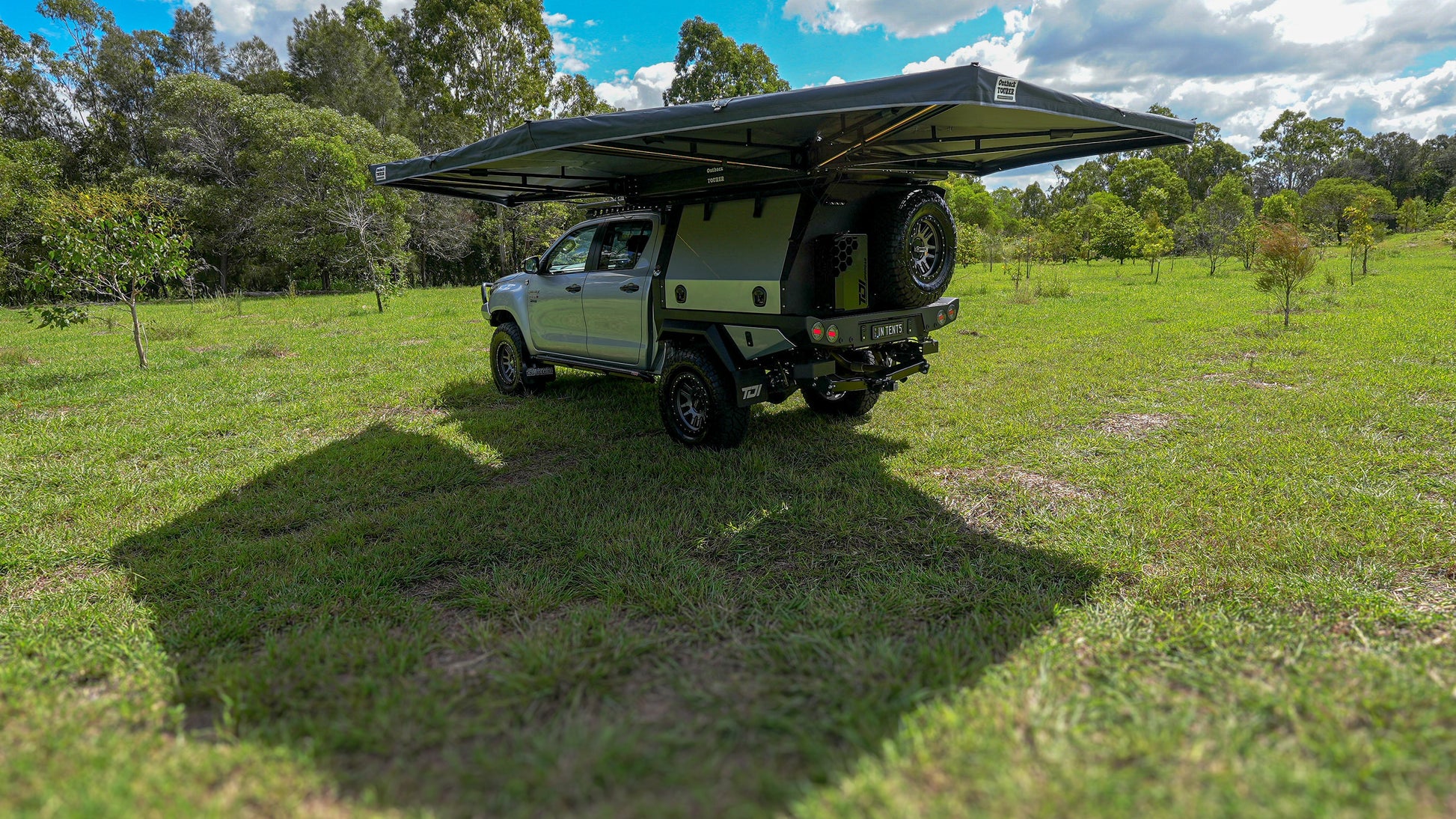

• 13.8m2 maximum coverage for maximum shade and usability.

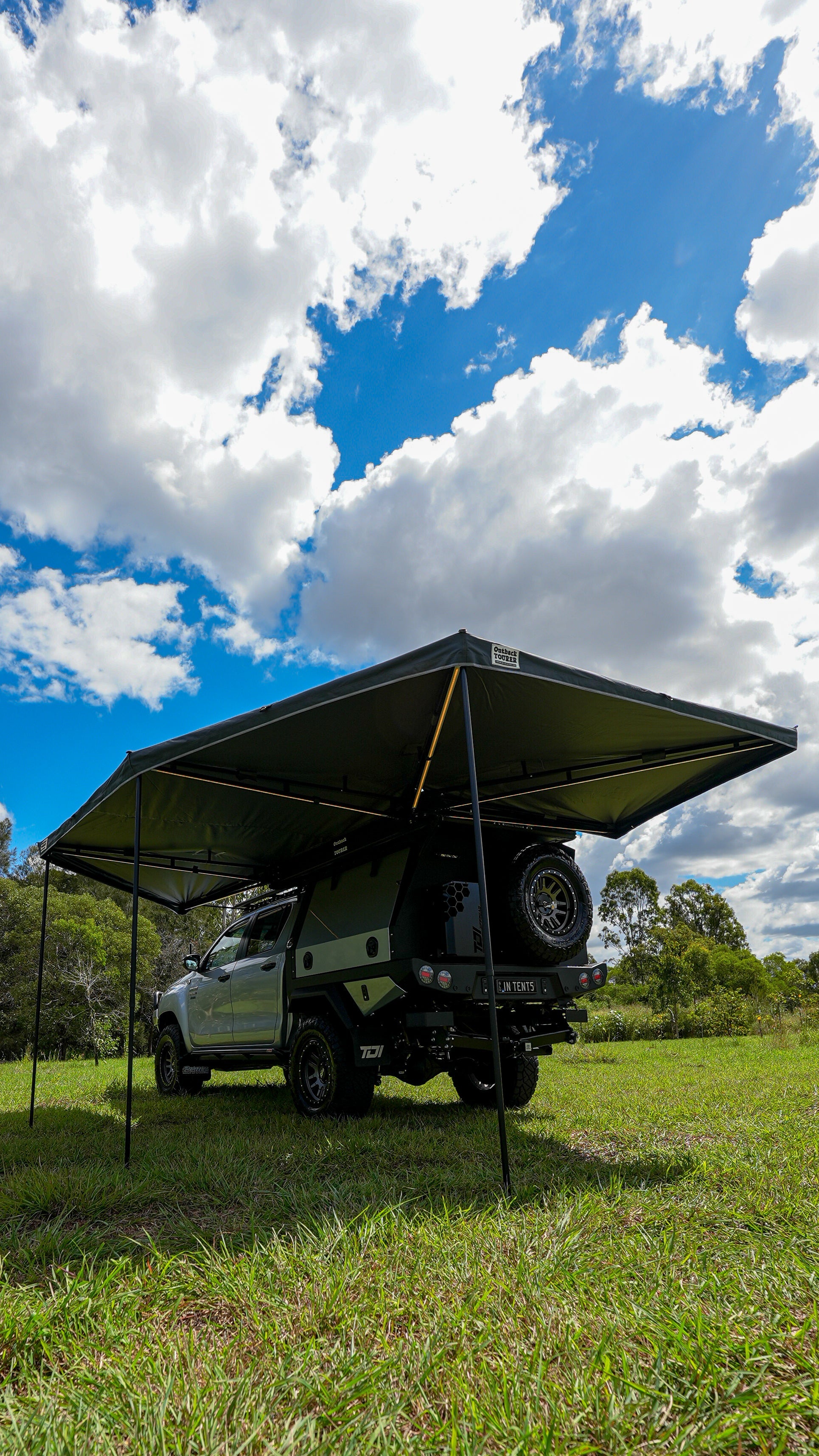

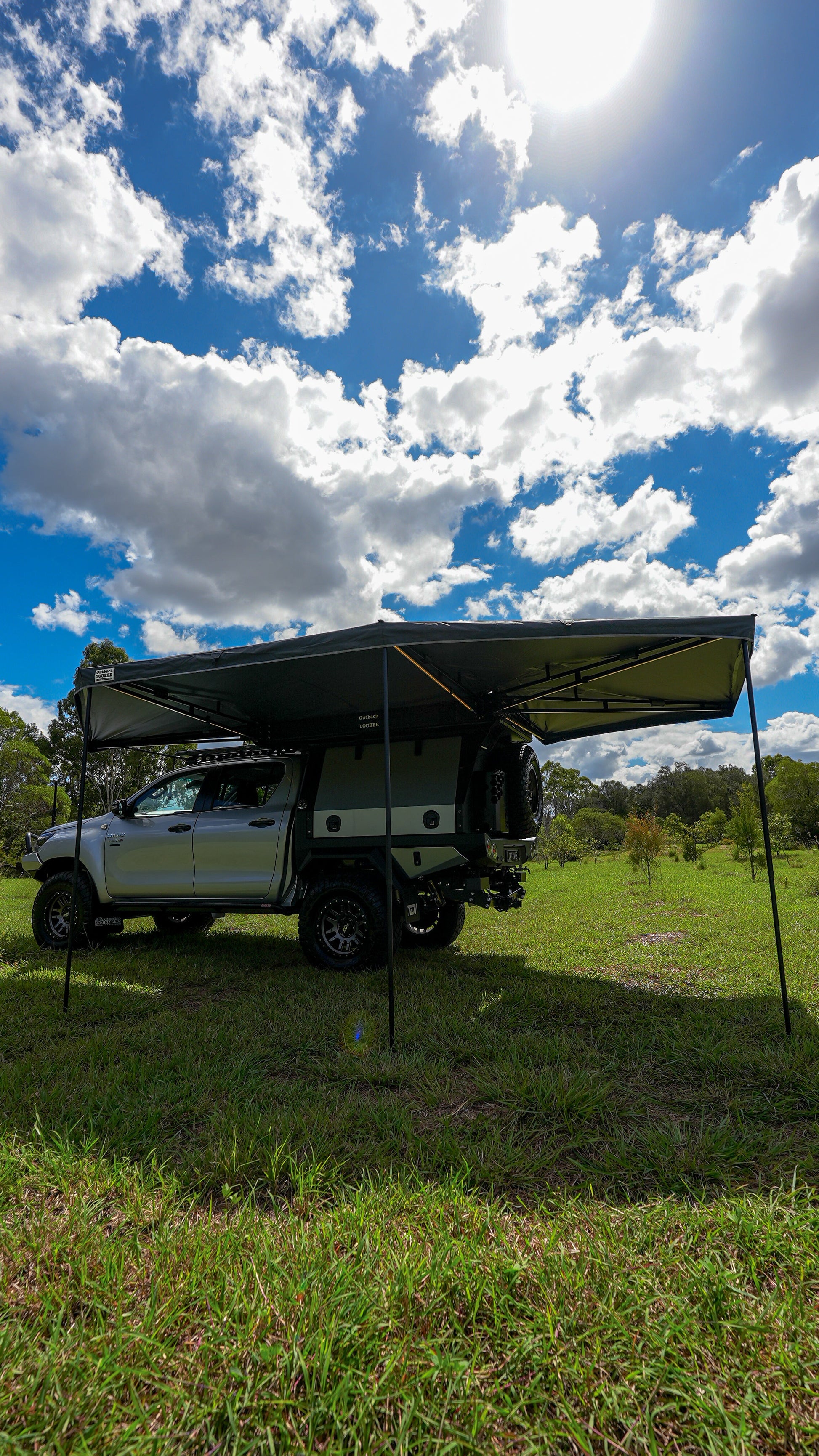

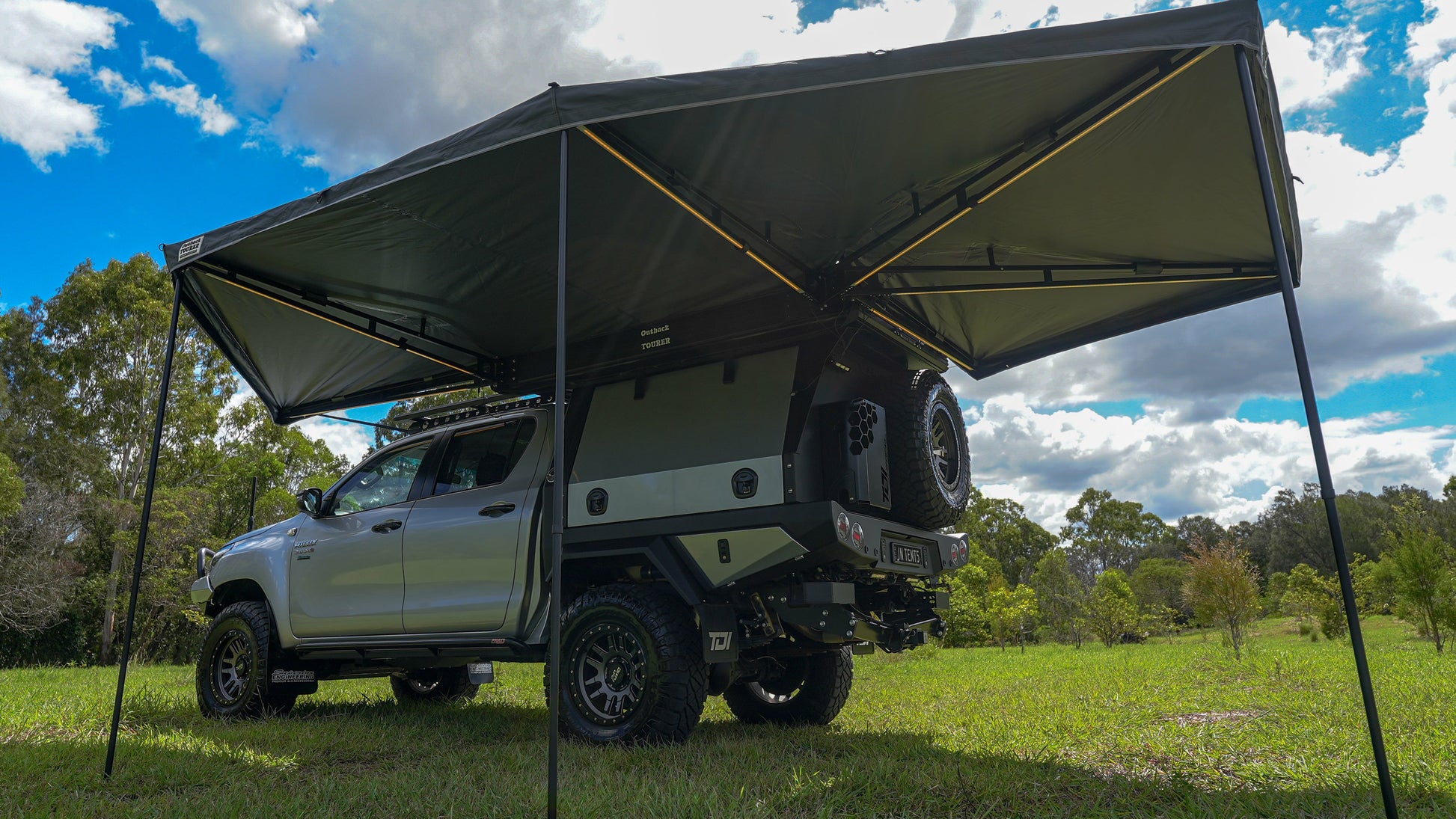

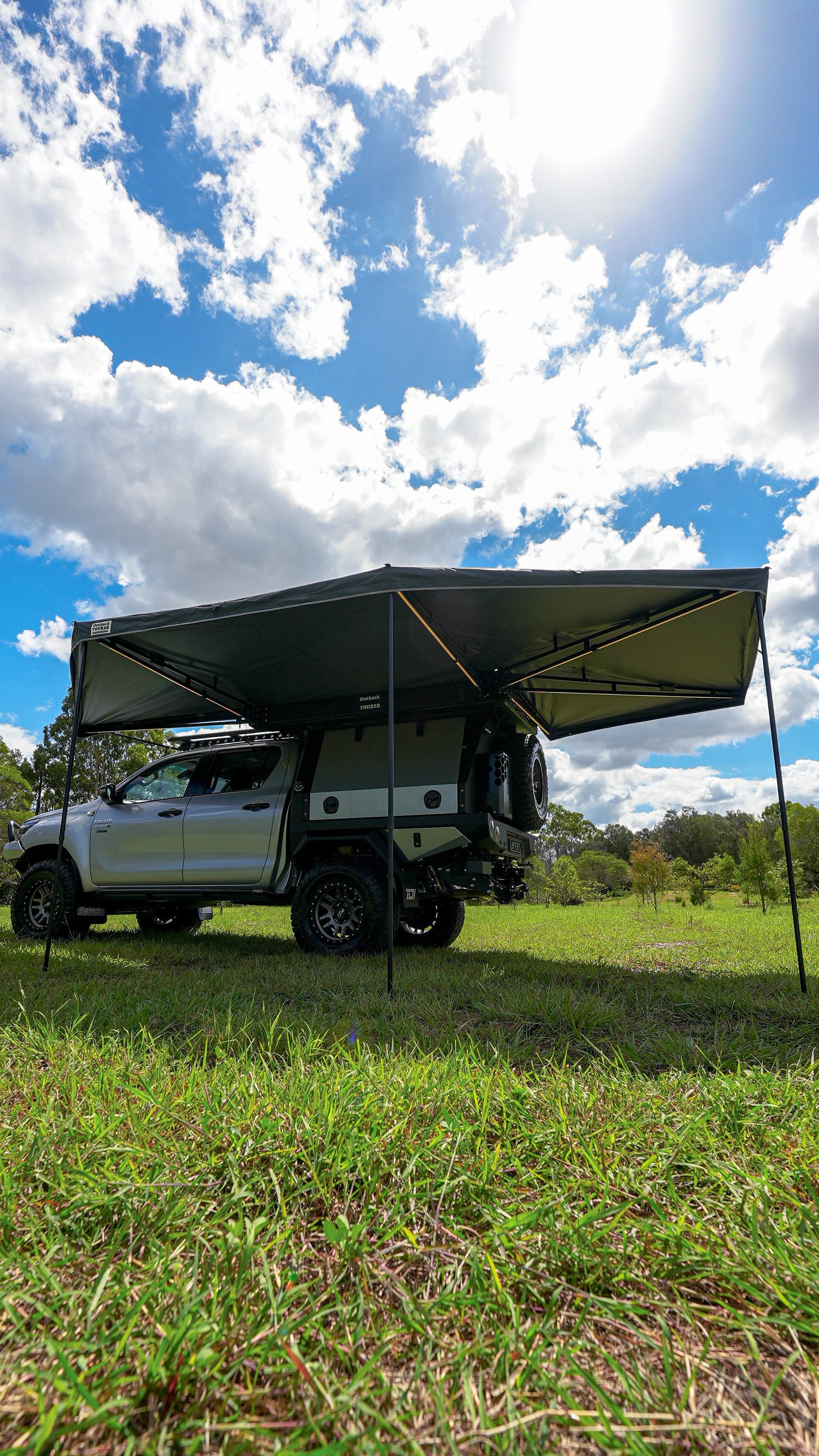

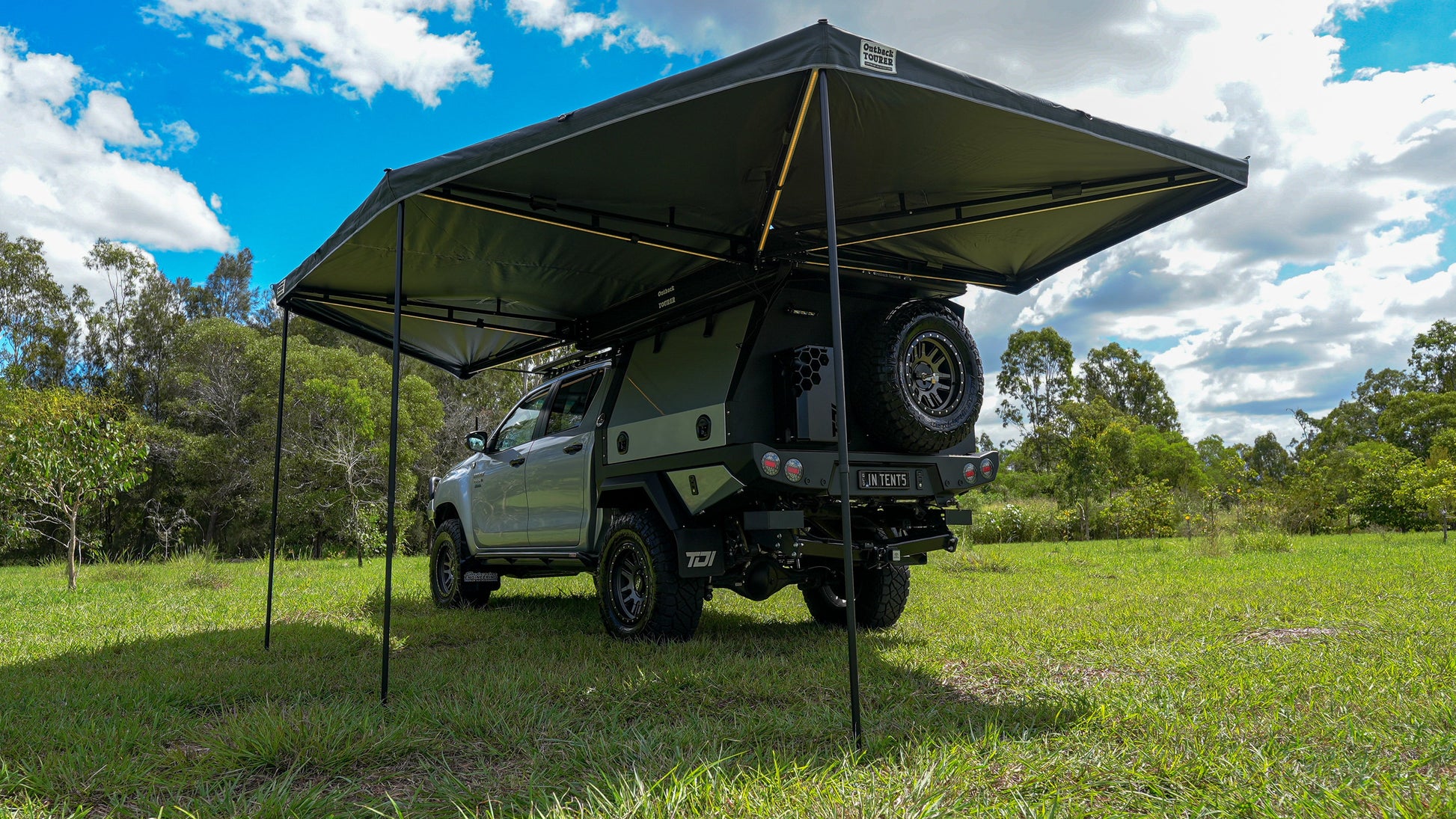

•  100% Freestanding with 3 built in legs.

• 2260mm L x 250mm H x 200mm W closed dimensions.

AWNINGS WILL FIT

Rhino Platform ✅ Use rhino channel nuts

Rhino cross rails ✅ (Vortex / Heavy duty) - Use rhino channel nuts

ARB Base Rack ✅ Use ARB T slot adaptors

Front Runner Platform ✅

Ocam Flat Rack ✅ - Use long bolts to mount through the gutter mount

Kings Flat rack ✅- Use long bolts to mount through the gutter mount

Rola Platform ✅

Yakima Platform ✅

Canopy Cross Bars ✅

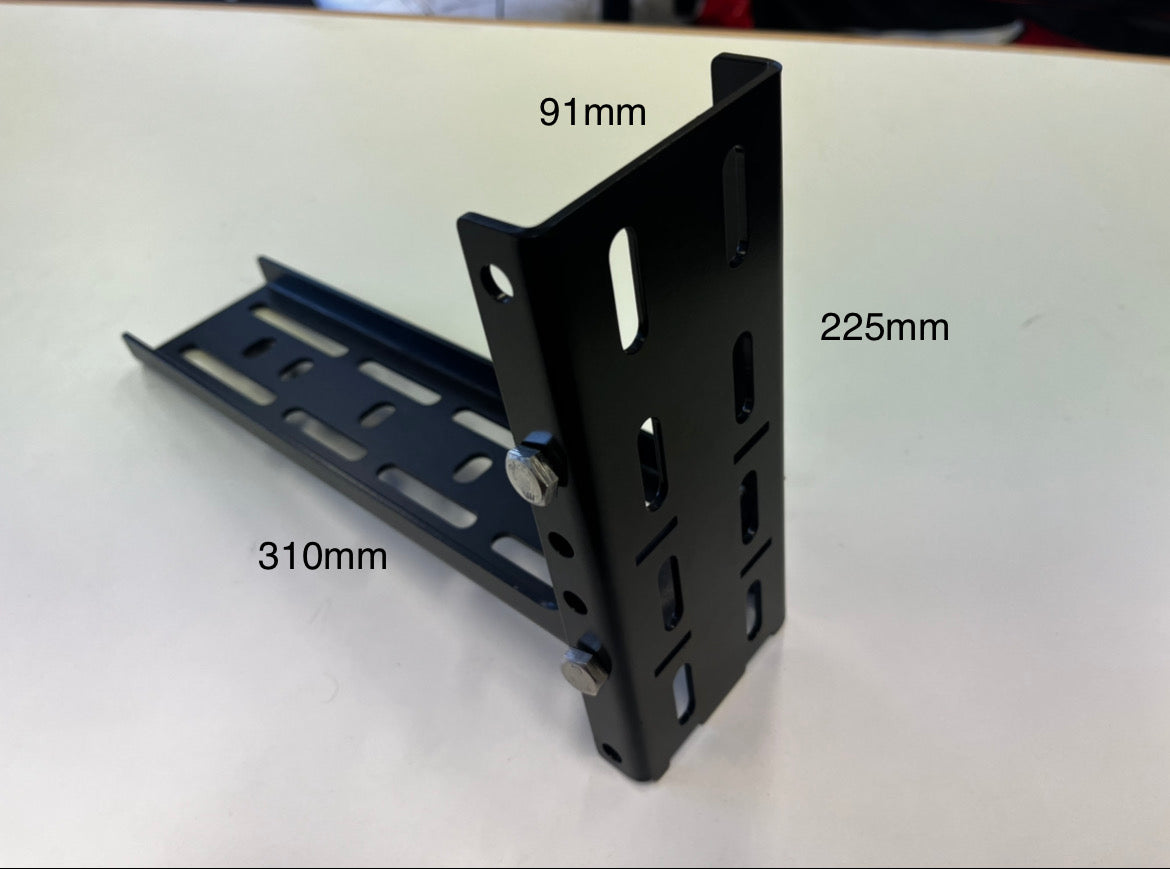

AWNING BRACKET PHOTO ABOVE

Disclaimer : This is Outback Tourer’s own awning and we have no affiliation to any other brand.

Use provided USB cables to power awning lights only.

Please note: Anti Seize must be used when installing as the provided Hardware is Stainless Steel.
