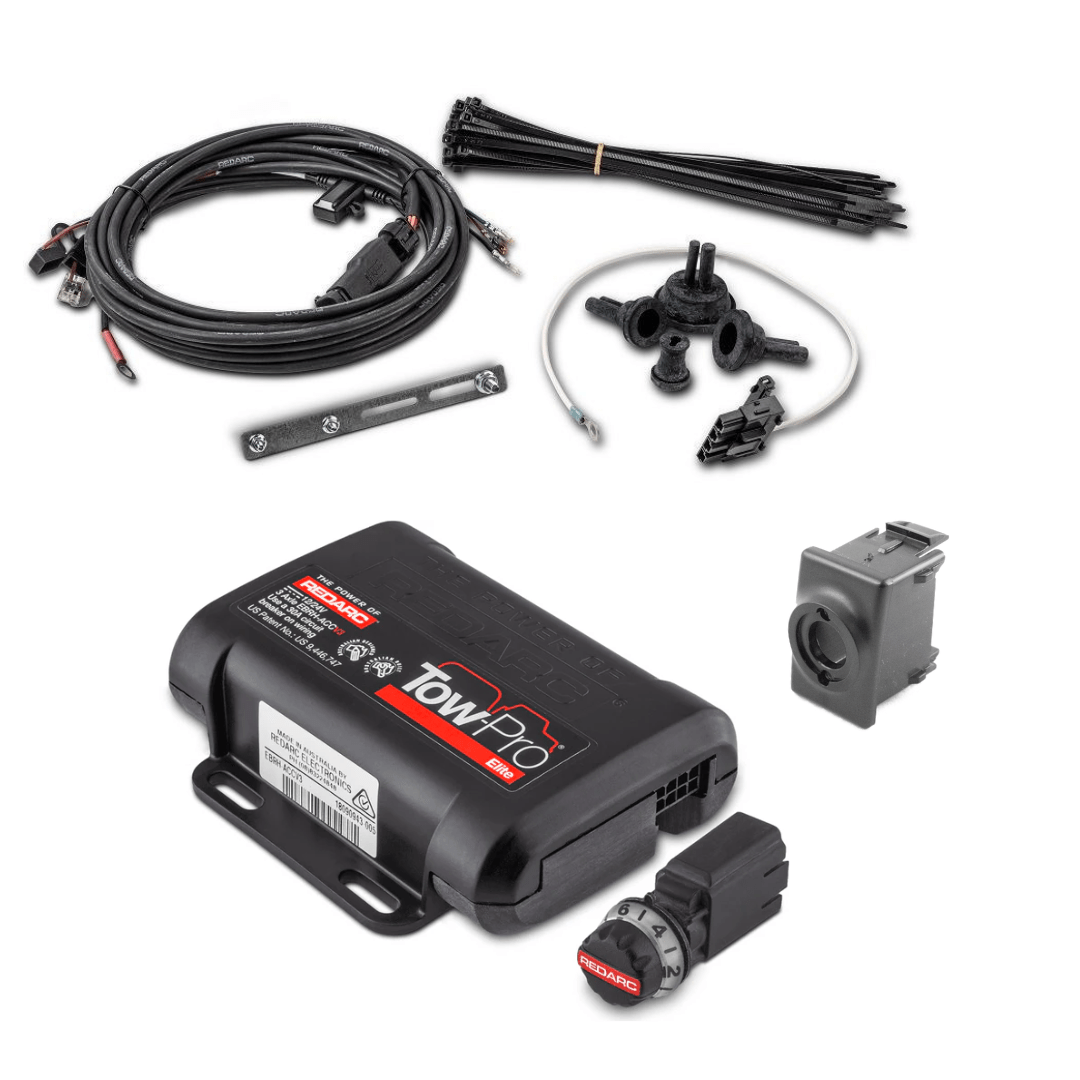

REDARC Tow-Pro Elite Complete Brake Controller Kit (Combined Overview & Specs)

Overview

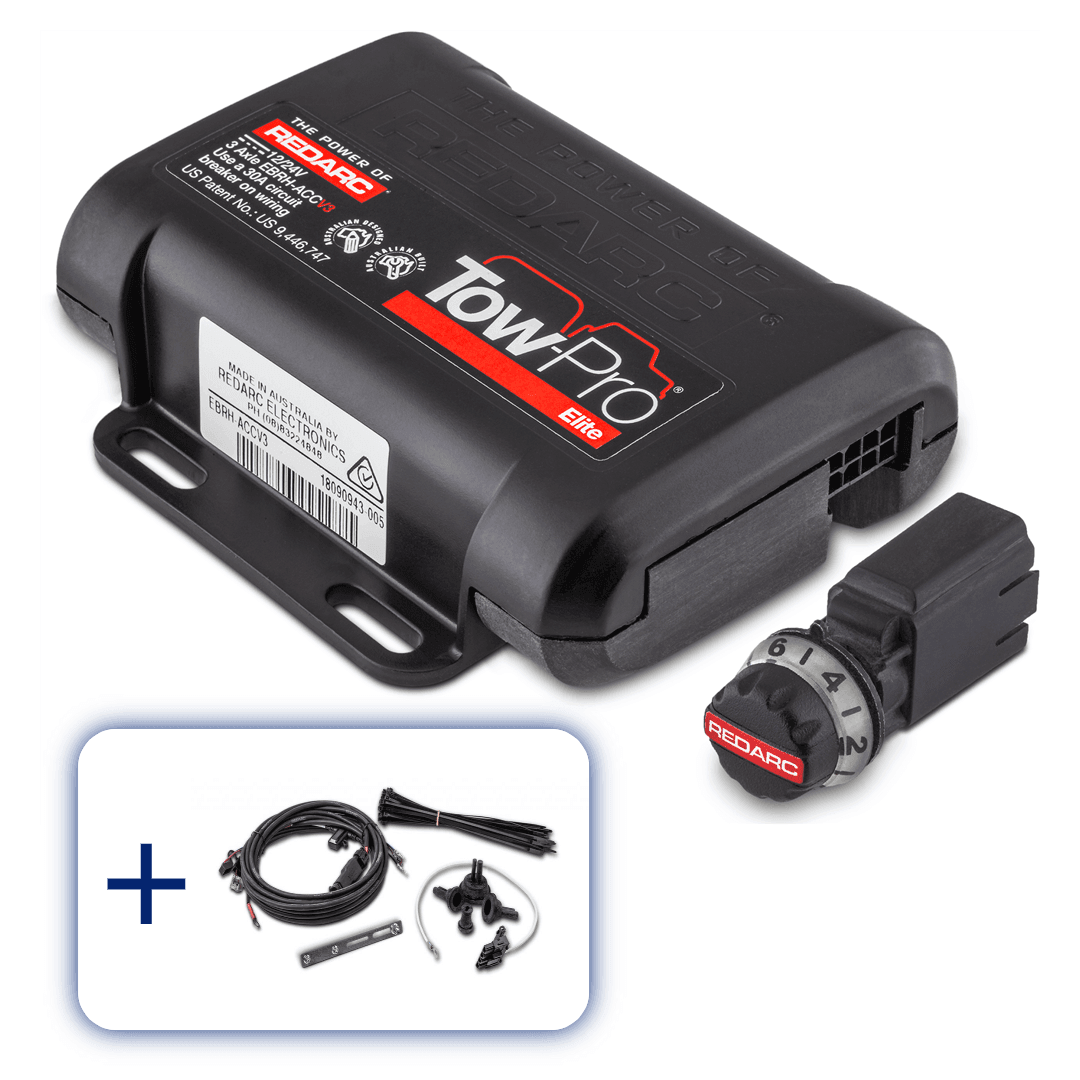

This all‑in‑one Tow‑Pro Elite brake controller bundle equips your tow vehicle with a reliable electric brake controller—perfect for towing trailers, caravans, camper trailers, horse floats, and boat trailers. All kits include REDARC’s award‑winning Tow‑Pro Elite, featuring both proportional and user‑controlled braking modes. It’s compatible with electric or electric/hydraulic braking systems (a separate 12 V power feed may be needed for the latter). Each kit includes a vehicle-specific or universal remote head switch insert for dashboard integration. Warranty is 2 years.

Key Differences by Kit

1. Standard Wiring Kits - 013

Ideal when: Start battery, Tow‑Pro unit, and cable run to cabin are all on the same side of the vehicle.

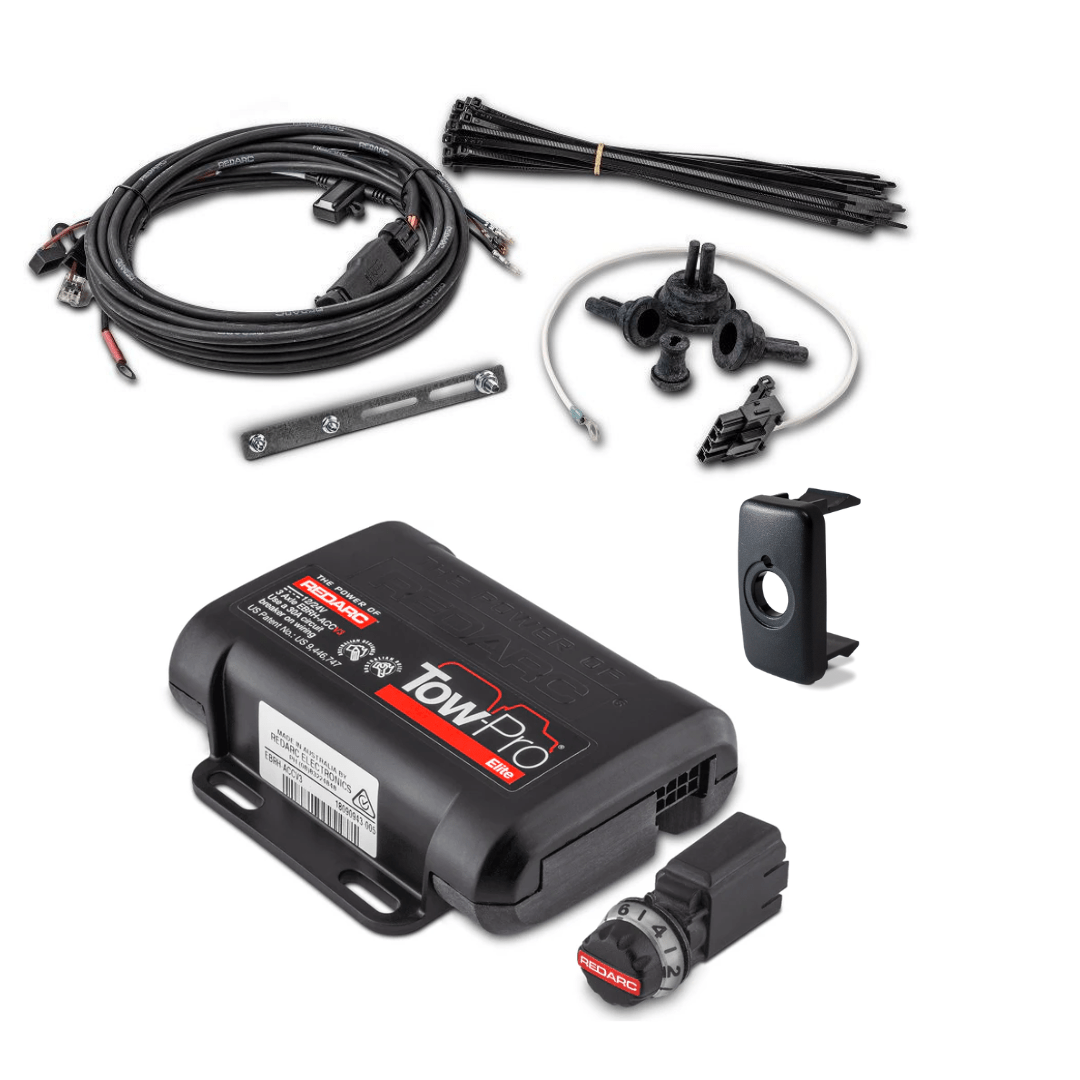

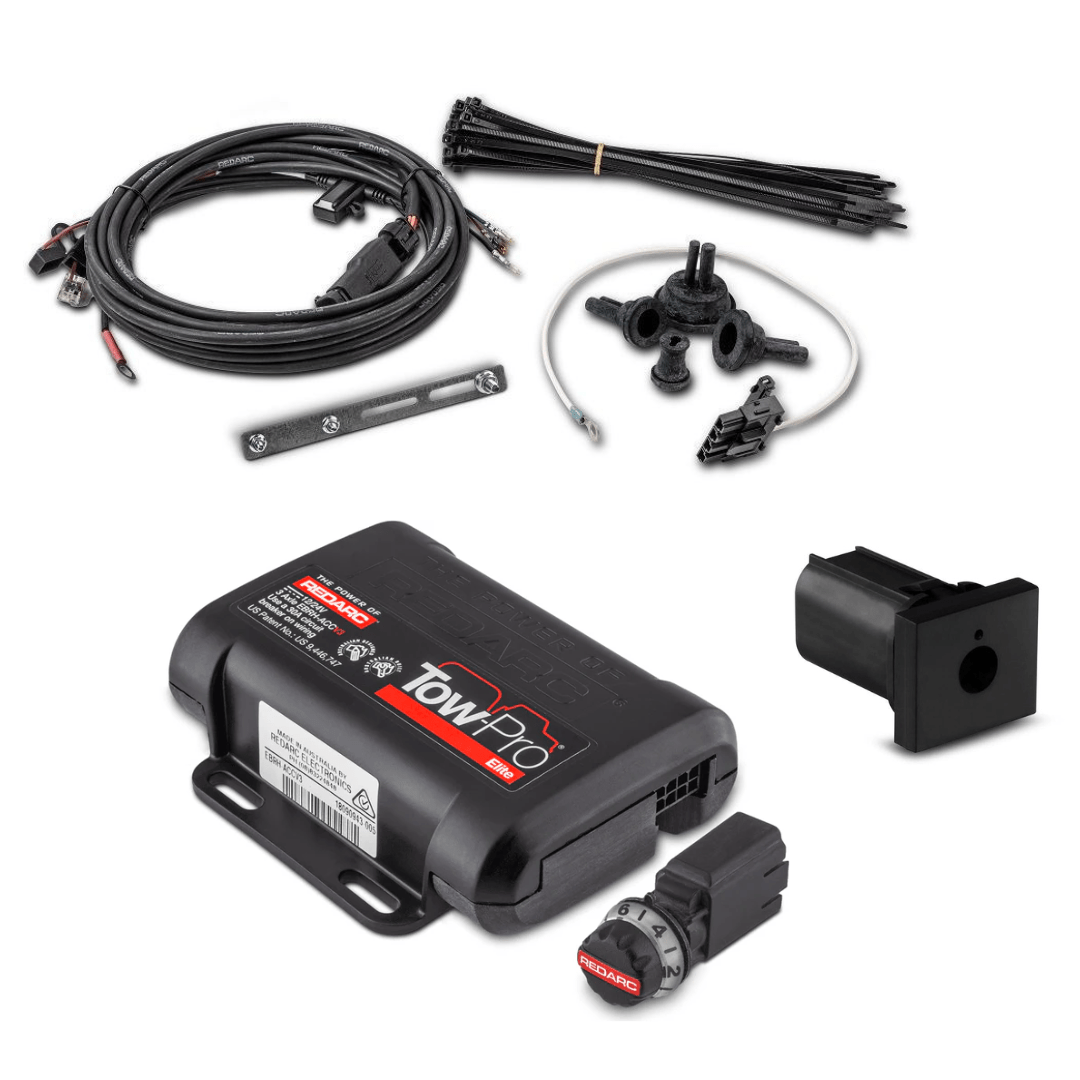

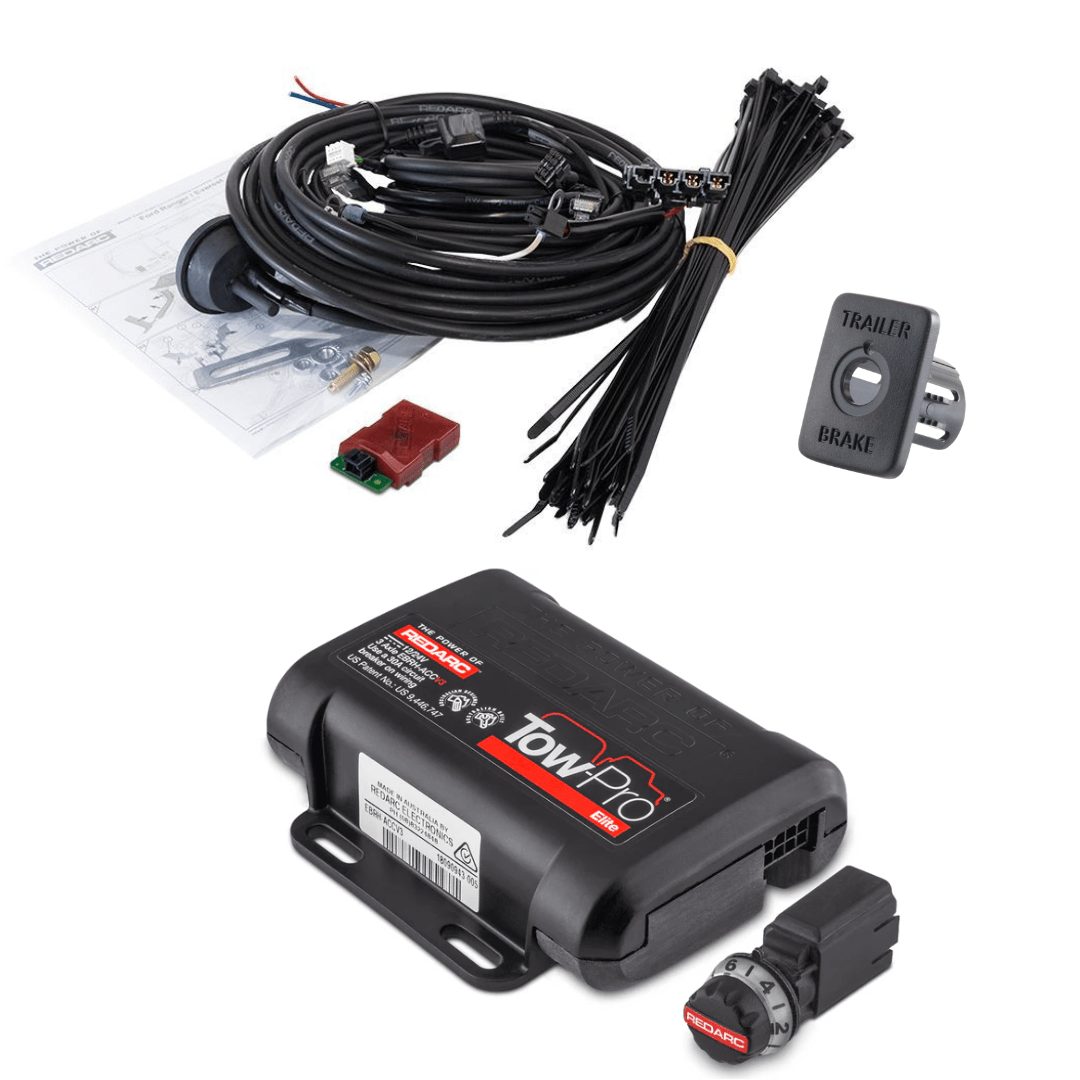

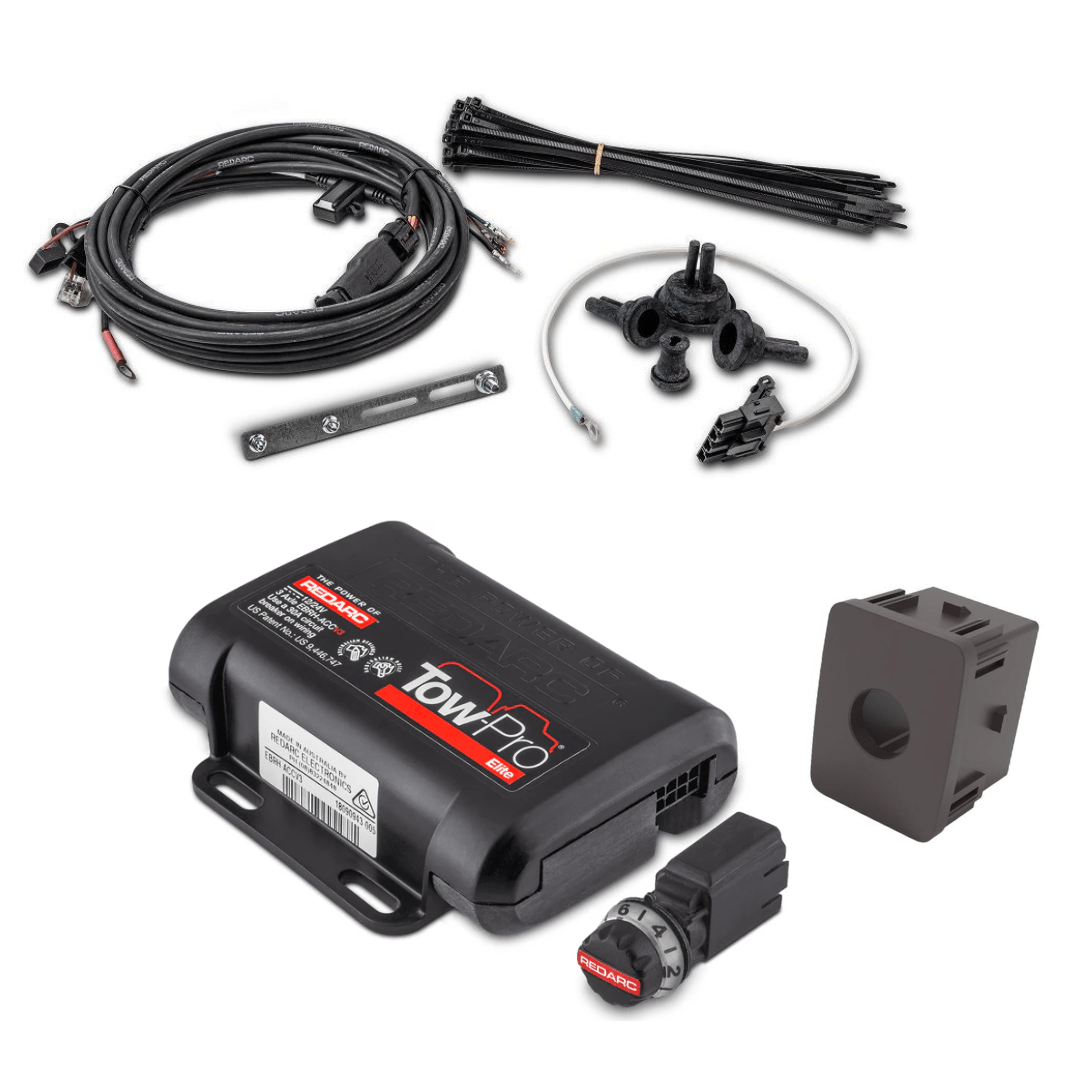

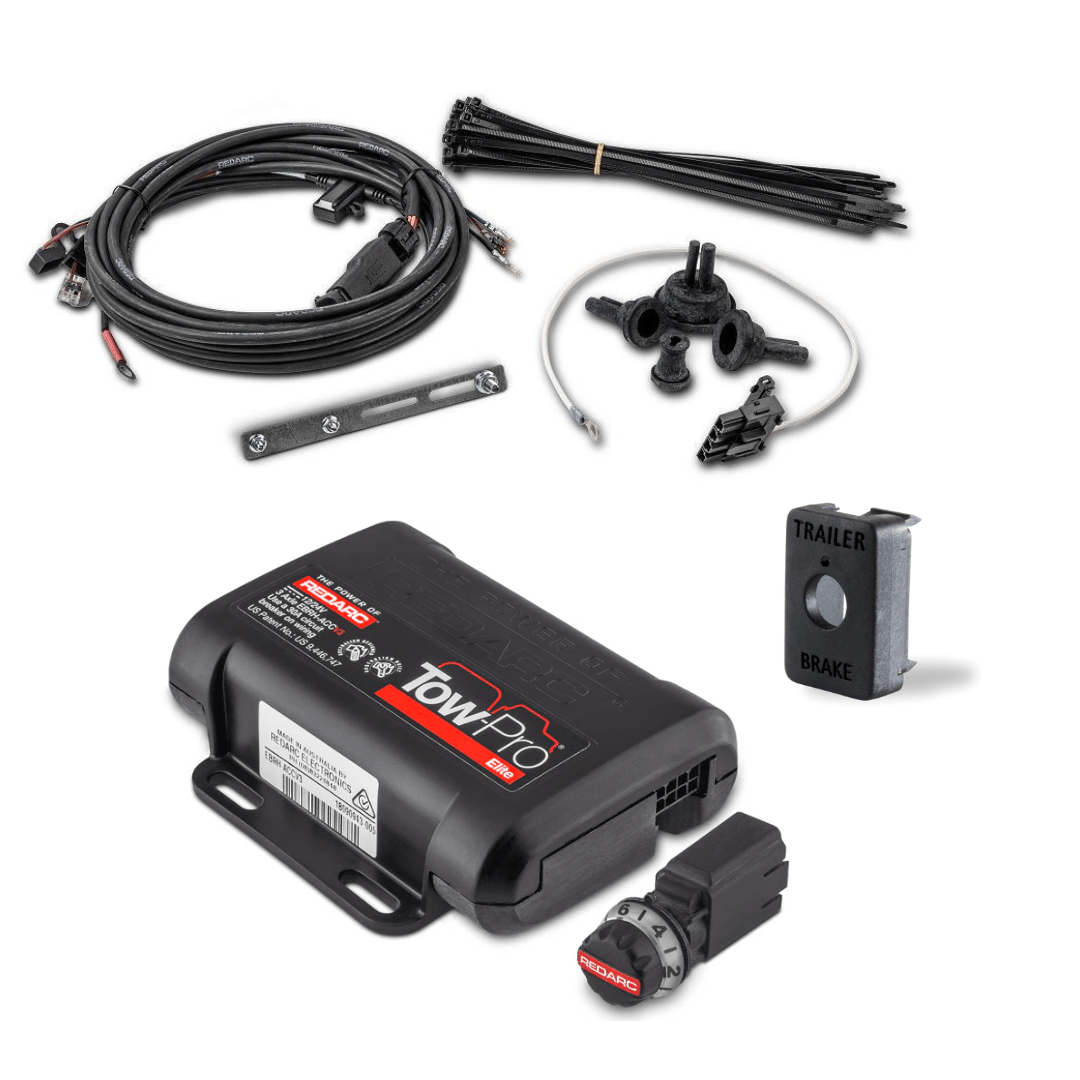

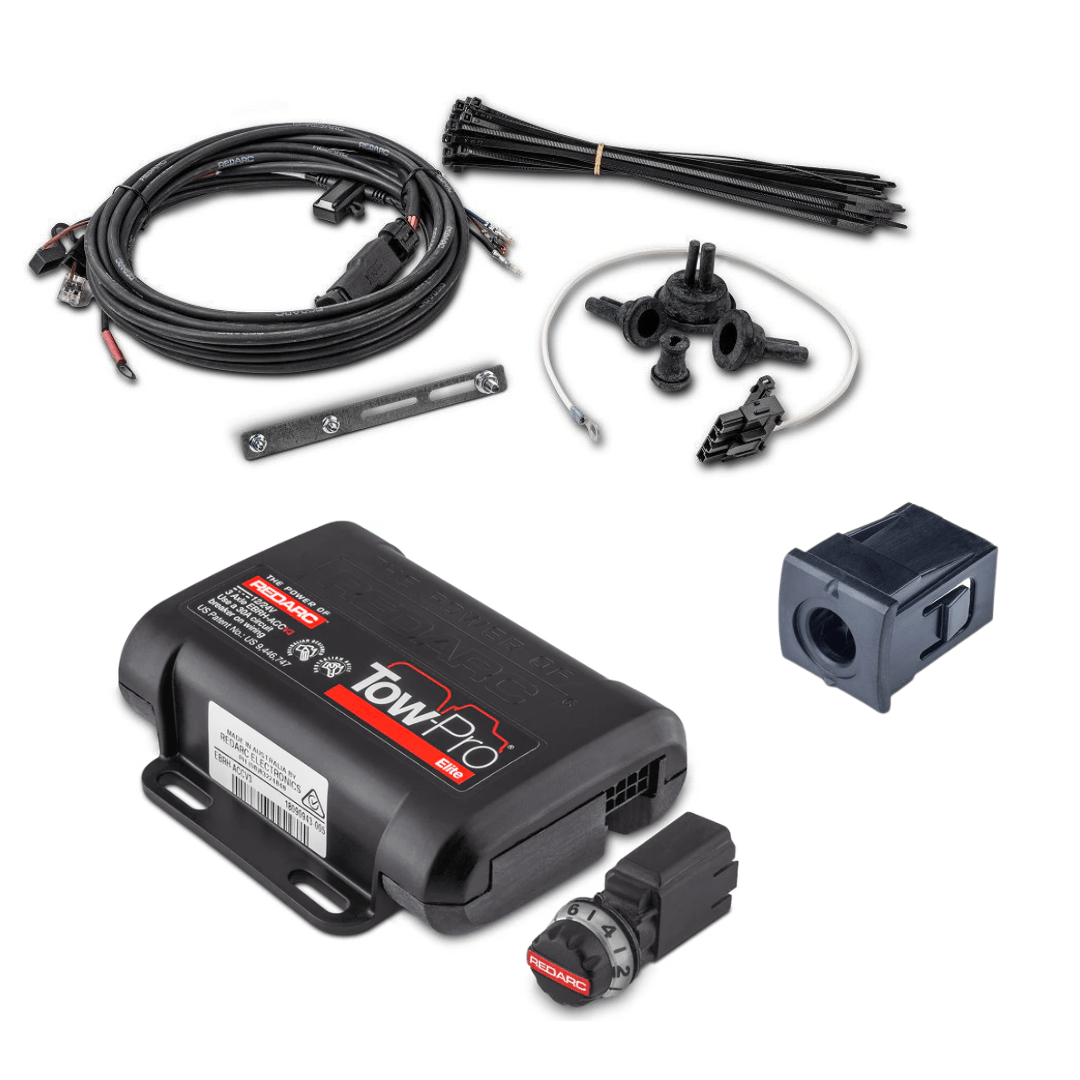

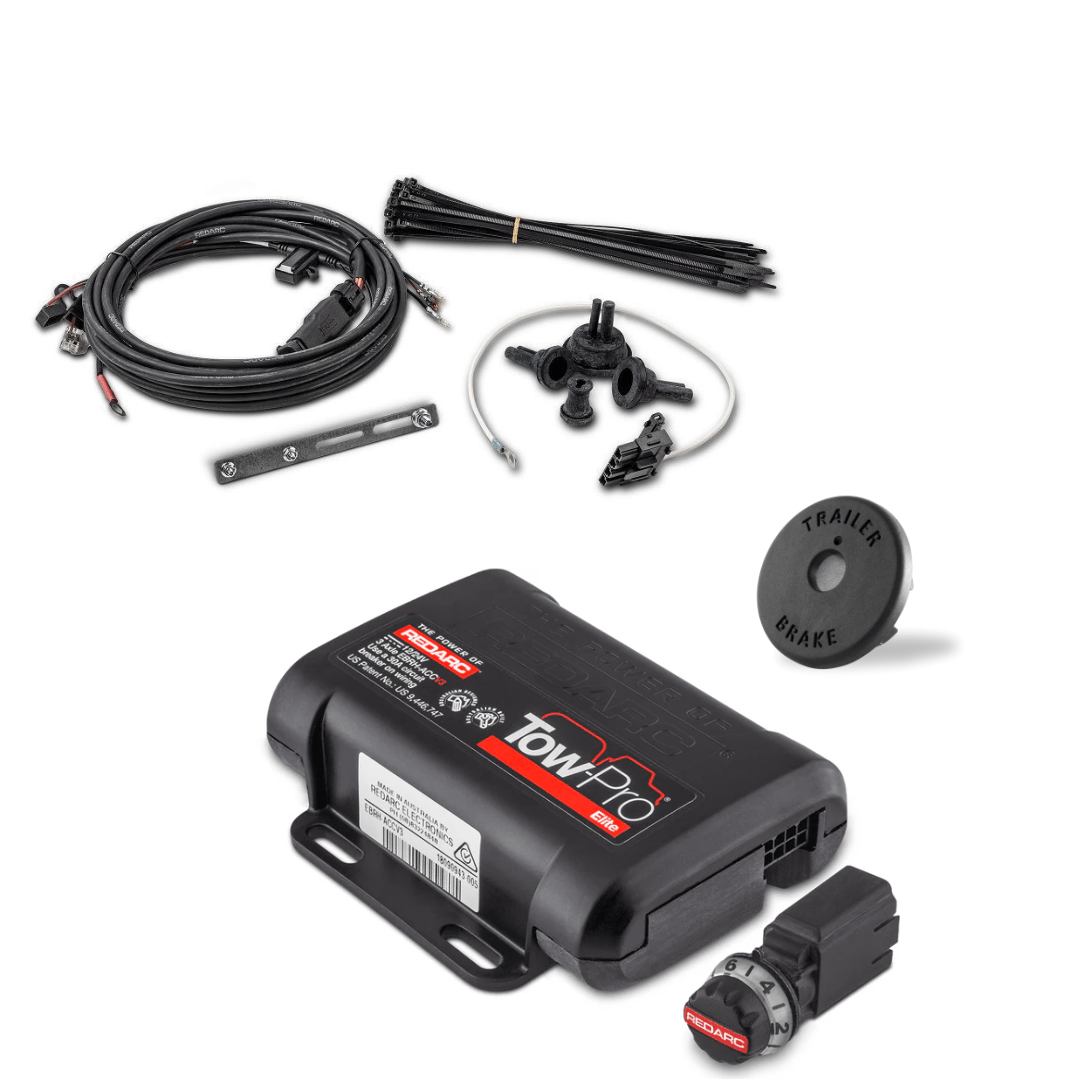

Includes: Tow‑Pro Elite (EBRH‑ACCV3), Universal Wiring Kit (TPWKit‑013), and a switch insert (user selects from 10 vehicle-specific options or the universal TPSI‑001).
Notes: Not compatible with Ford Ranger or Everest (late 2017+)—see dedicated kit below

2. Extended Wiring Kits - 014

Ideal when: Start battery is on the opposite side of the vehicle relative to the rest of the installation.
Includes: Tow‑Pro Elite (EBRH‑ACCV3), Extended Universal Wiring Kit (TPWKit‑014), switch insert options same as standard kit.
Same note on Ford Ranger / Everest compatibility.

Switch Insert Compatibility Matrix (Standard & Extended Kits)

Part Number	Vehicle Compatibility
TPSI-001	Universal model
TPSI-002	Toyota Hilux & Mitsubishi Triton
TPSI-003	Holden Colorado
TPSI-005	Isuzu D‑MAX SX & Mazda BT‑50 (2020+)
TPSI-006	Isuzu D‑MAX LS & Isuzu MU‑X (pre‑2020)
TPSI-007	Toyota 70 Series
TPSI-008	Nissan Pathfinder R52 (2013+) & Mercedes‑Benz X‑Class (2018+)
TPSI-009	Mazda BT‑50 (2011–2020)
TPSI-010	Universal Remote Head Kit
TPSI-011	Toyota 2019+ Square Inserts (200 & 300 Series)

Common Features & Compatibility Summary

Core Components Across All Kits: Tow‑Pro Elite (EBRH‑ACCV3), suitable wiring harness, and switch insert options.
Wiring Variations:
- Standard Kit (TPWKit‑013) – same-side battery layout
- Extended Kit (TPWKit‑014) – opposite-side battery layout
Vehicle Compatibility: All vehicle makes/models except Ford Ranger/Everest for standard/extended kits. Ranger/Everest require the specific kit due to AEB systems.
Warranty: 2 Years for all versions
