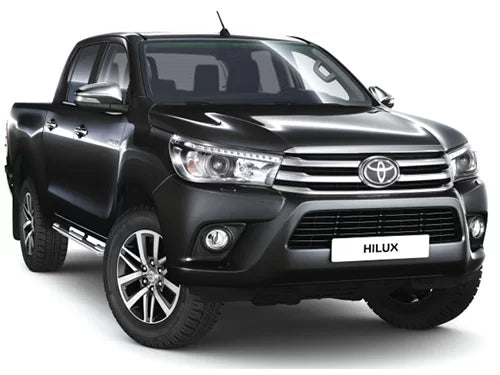

Dobinsons Toyota Hilux 8th Gen NB1 GVM Upgrade

The Toyota Hilux 8th Gen NB1 GVM Upgrade is a federally approved Dobinsons GVM upgrade for the Toyota Hilux 8th Gen NB1, increasing your legal carrying capacity to 3520kg. Dobinsons GVM upgrades are approved Australia-wide and supplied with full compliance documentation.

Price includes professional installation. The listed price is fully fitted -- Dobinsons components supplied and installed at our workshop, plus a state-based engineering surcharge applied at checkout. Select your shock type, and registration status (Pre Rego / Post Rego) to see the final fitted price.

Important Notes

• 2015 to 10/2024 Upgrade Available to 3500kgs
• Pre-Registration (10/2024 on)
• Post-Registration (10/2024 on)

Shock Absorber Options

• Twin Tube Nitro-Gas -- Dobinsons' proven twin-tube nitrogen gas shock. Reliable performance for everyday touring and load-carrying.
• IMS (Internal Monotube Strut) -- Dobinsons' monotube shock with internal floating piston for improved heat dissipation and consistent performance under load.
• MRR (Monotube Remote Reservoir) -- Dobinsons' 3-way adjustable monotube with remote reservoir. Independent adjustment for rebound, low-speed and high-speed compression -- the premium choice for demanding off-road and load-carrying applications.

Coil Spring Options

Coil spring rate is selected at the time of fitment based on your vehicle's load. Available options:

• 45mm Lift - No Load
• 45 mm Lift - 70-90 kg
• 45 mm Lift - 100-120 kg

Leaf Spring Options

Leaf spring rate is selected at the time of fitment based on your vehicle's load. Available options:

• 45 mm Lift - 300-350 kg Constant Load (Touring Option)
• 45 mm Lift - 580 kg Constant Load

Kit Contents

• 2 x Front Coil Springs
• 2 x Front Shock Absorbers
• 2 x Rear Leaf Springs
• 2 x Rear Shock Absorbers
• 2 x Rear Shackles
• 1 x Rear Shackle Bush Kit
• 4 x Rear U-Bolts
• 2 x Rear Shackle Pins
• 2 x Tailshaft Spacer Kit
• 1 x Rear Headlight Adjuster

Federally Approved

Dobinsons GVM upgrades are federally approved and the revised GVM will be compliant Australia-wide. Engineering certification is included in the price; some additional state-based engineering charges may apply depending on registration jurisdiction.
