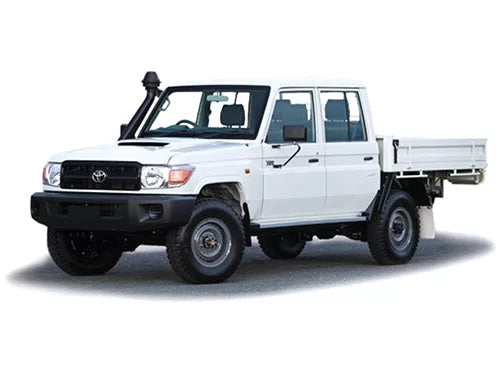

Dobinsons Toyota Landcruiser 79 Series Heavy Duty GVM Upgrade

The Toyota Landcruiser 79 Series Heavy Duty GVM Upgrade is a federally approved Dobinsons GVM upgrade for the Toyota Landcruiser 79 Series Heavy Duty, increasing your legal carrying capacity to 4040kg. Dobinsons GVM upgrades are approved Australia-wide and supplied with full compliance documentation.

Price includes professional installation. The listed price is fully fitted -- Dobinsons components supplied and installed at our workshop, plus a state-based engineering surcharge applied at checkout. Select your shock type, and registration status (Pre Rego / Post Rego) to see the final fitted price.

Note: Pre-Registration is currently paused due to ADR changes. Pre Rego variants are listed as unavailable -- please contact us to discuss options.

Important Notes

• Pre-Registration paused due to ADR changes
• Approved tyre options: 265/70R16 LT121Q, 225/95R16C, 285/70R17 121Q

Shock Absorber Options

• IMS (Internal Monotube Strut) -- Dobinsons' monotube shock with internal floating piston for improved heat dissipation and consistent performance under load.
• MRR (Monotube Remote Reservoir) -- Dobinsons' 3-way adjustable monotube with remote reservoir. Independent adjustment for rebound, low-speed and high-speed compression -- the premium choice for demanding off-road and load-carrying applications.

Coil Spring Options

Coil spring rate is selected at the time of fitment based on your vehicle's load. Available options:

• 45 mm Lift - Up To 40 kg
• 45 mm Lift - 60-100 kg

Leaf Spring Options

Leaf spring rate is selected at the time of fitment based on your vehicle's load. Available options:

• 50 mm Lift - 800 kg Constant Load

Kit Contents

• 2 x Front Coil Springs
• 2 x Front Shock Absorbers
• 2 x Rear Leaf Springs
• 2 x Rear Shock Absorbers
• 1 x Front Steering Damper
• 2 x Rear Shackles
• 1 x Rear Shackle Bush Kit
• 4 x Rear U-Bolts
• 2 x Rear Shackle Pins
• 1 x Front Sway Bar Extension
• 1 x Front Castor Kit
• 1 x Front ABS Cable Bracket

Federally Approved

Dobinsons GVM upgrades are federally approved and the revised GVM will be compliant Australia-wide. Engineering certification is included in the price; some additional state-based engineering charges may apply depending on registration jurisdiction.
